39

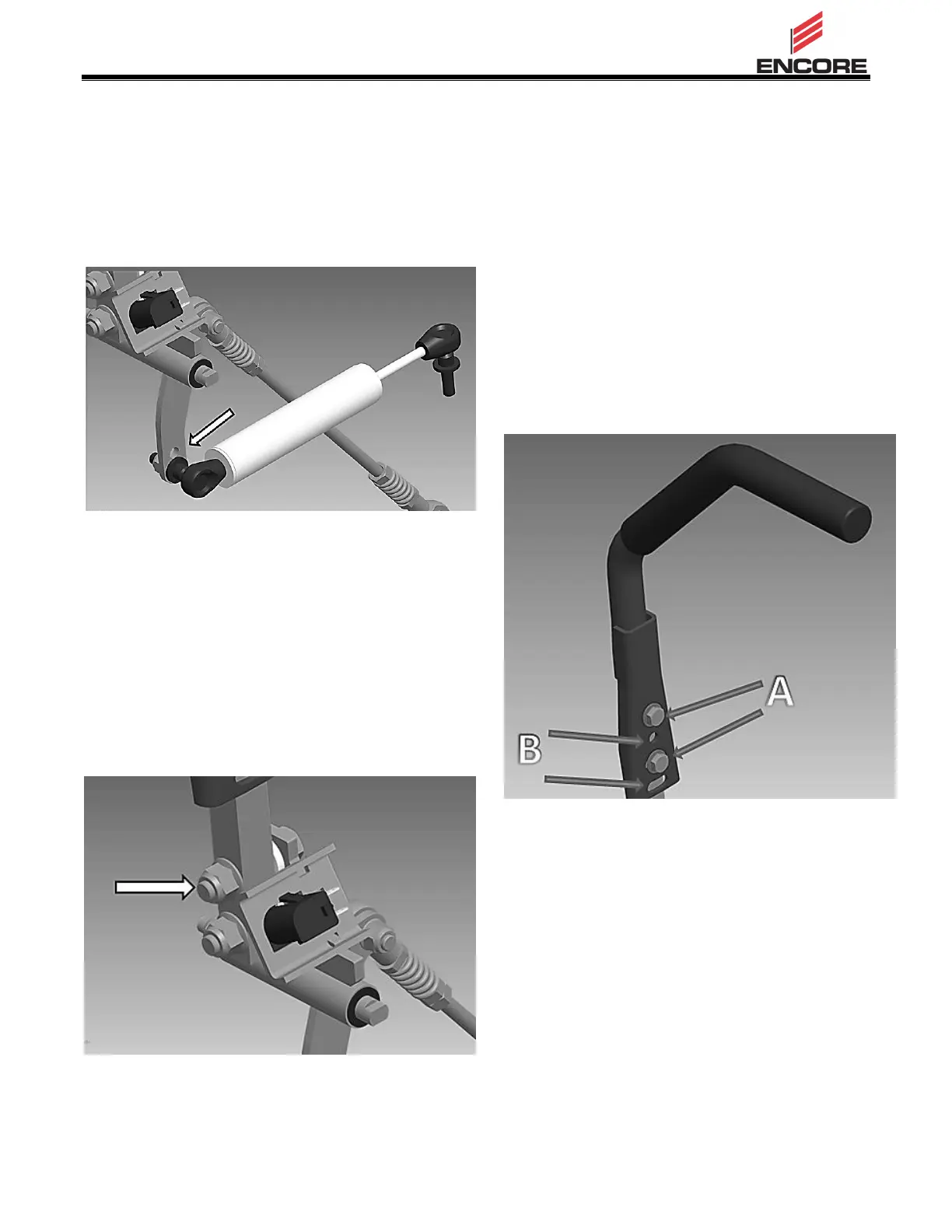

MOTION CONTROL DAMPER
ADJUSTMENT
Two positions are provided for installing the
forward damper stud to the motion control
assembly. The upper hole provides less
resistance, the lower provides more.
MOTION CONTROL NEUTRAL LOCK
PIVOT ADJUSTMENT
The flanged nut can be adjusted to obtain a
more desired motion control lever resistance
Tighten or loosen the lower flanged nut to the
desired feel.
For more resistance, tighten the flanged nut.
For less resistance, loosen the flanged nut.
MOTION CONTROL HANDLE
ADJUSTMENT
Adjusting the height:
The motion control levers can be adjusted
higher or lower for maximum operator comfort.
1. Remove the two bolts holding the control
lever to the control arm shaft (A)
2. Move the control lever to the next set of
holes (B). Secure the lever with the two
bolts.
3. Repeat the adjustment for the opposite
control lever.
Adjusting the Tilt
The motion control levers can be tilted fore or
aft for maximum operator comfort.
1. Loosen the upper bolt holding the control
lever to the control arm shaft.
2. Loosen the lower bolt just enough to pivot
the control lever fore or aft. Tighten both
bolts to secure the control in the new
position.
3. Repeat the adjustment for the opposite
control lever.
