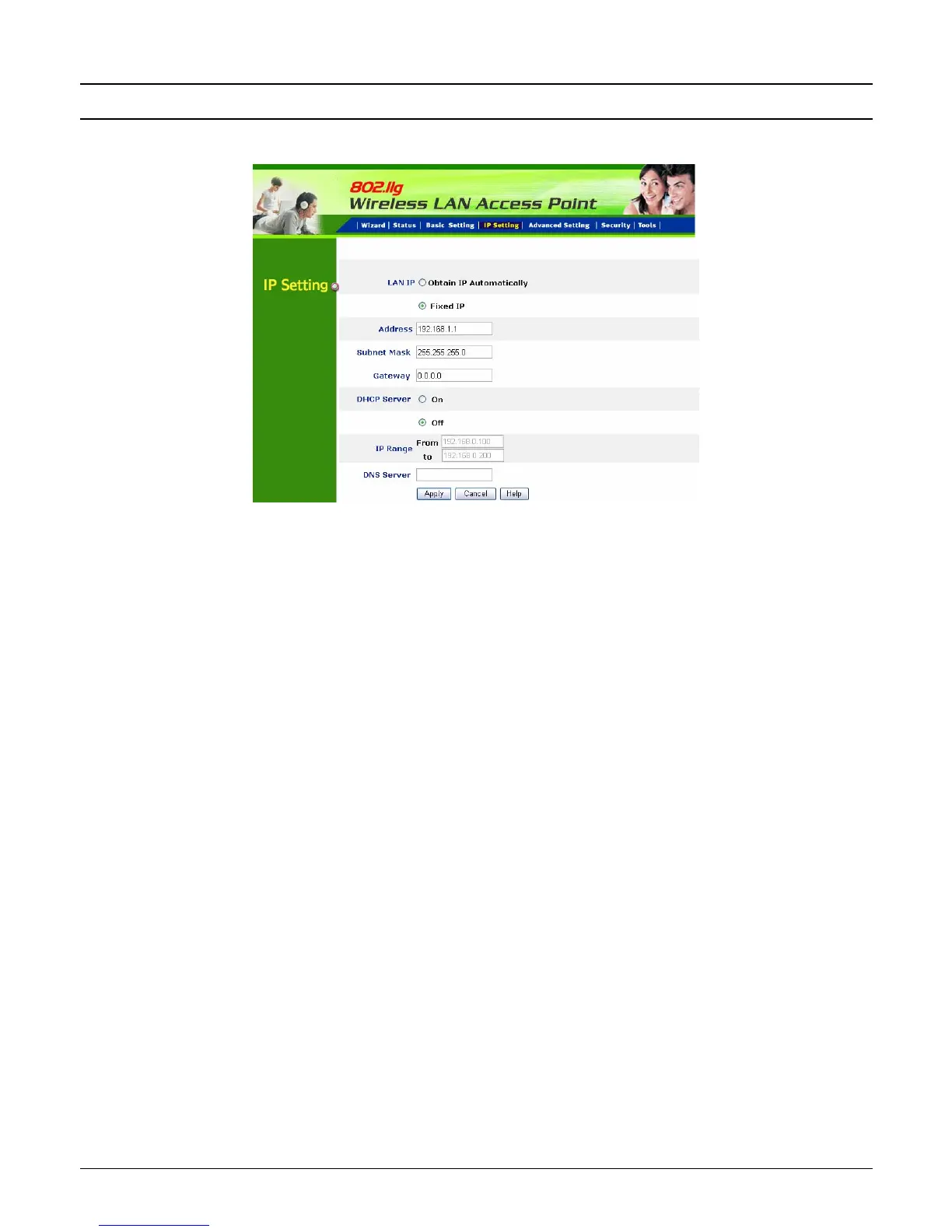

IP Setting
This page allows user to configure the IP and DHCP settings of the Access Point.
The default IP address of this access point is 192.168.1.1 with the subnet mask of
255.255.255.0. User can type in other values for IP Address, Subnet Mask and
Gateway and click “Apply” button for the changes to be effective.
User can also set the Access Point to obtain the IP from a DHCP server, but it is not
recommended. Select the option “Obtain IP Automatically” and click “Apply”
button for the changes to be effective.
DHCP Server: It is not recommended to enable the DHCP Server if user has a
DHCP server running in LAN network because it probably will cause possible the
conflict of IP assignment. Enable the DHCP server function by selecting the option
“On”, and enter the IP range.
DNS Server: Type up to DNS IP address in the text boxes. Your ISP will provide
you with this information.
Click “Apply” for the changes to be effective
24
