Endless Summer Bryson - Parts List

5
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware
A
Screw
M5x12 Black Nickel Plated Truss Head
12 pcs
B
Screw
M6X12 Black Nickel Plated Truss Head
8 pcs
C
Screw
M5X20 Black Nickel Plated Truss Head
4 pc
D
Screw
M6X12 Black Nickel Plated Step Head
1 pc
E
AA Battery 1 pc
10
12
10
Parts List
1
White Fire Glass
58-17-100
2
Table Insert
58-17-101
3
Bowl Assembly*
58-17-102
4
Igniter Cover*
58-17-103
5
Burner*
58-17-104
6
Control Knob*
58-17-105
7
Battery Cap
58-17-106
8
Regulator/Hose
Assembly*
58-17-107
9
Mantel*
58-17-108
10
Side Panel (2)
58-17-109
11
Rear Panel
58-17-110
12
Leg A
58-17-111
Leg B
58-17-112
Leg C
58-17-113
Leg D
58-17-114
16
Magnet (2)*
58-17-115
17
Door
58-17-116
18
Door Handle*
58-17-117
19
Foot (4)*
58-17-118
Bottom Frame
58-17-119
LP Gas Tank Retainer Bolt
58-17-120
22
Cover
58-17-121
23
Lava Rock (not required
and sold separately)**
* Pre-assembled
W **CAUTION: Use only Mr. Bar-B-Q
Products LLC factory-authorized
fire glass/lava rock. The use of
any fire glass/lava rock that is
not factory-authorized can be
dangerous and will void your
warranty.
18
17
19
3
9
2
8
6
11
13
4
21
16
Sold Separately
23
14
15
20
5
7

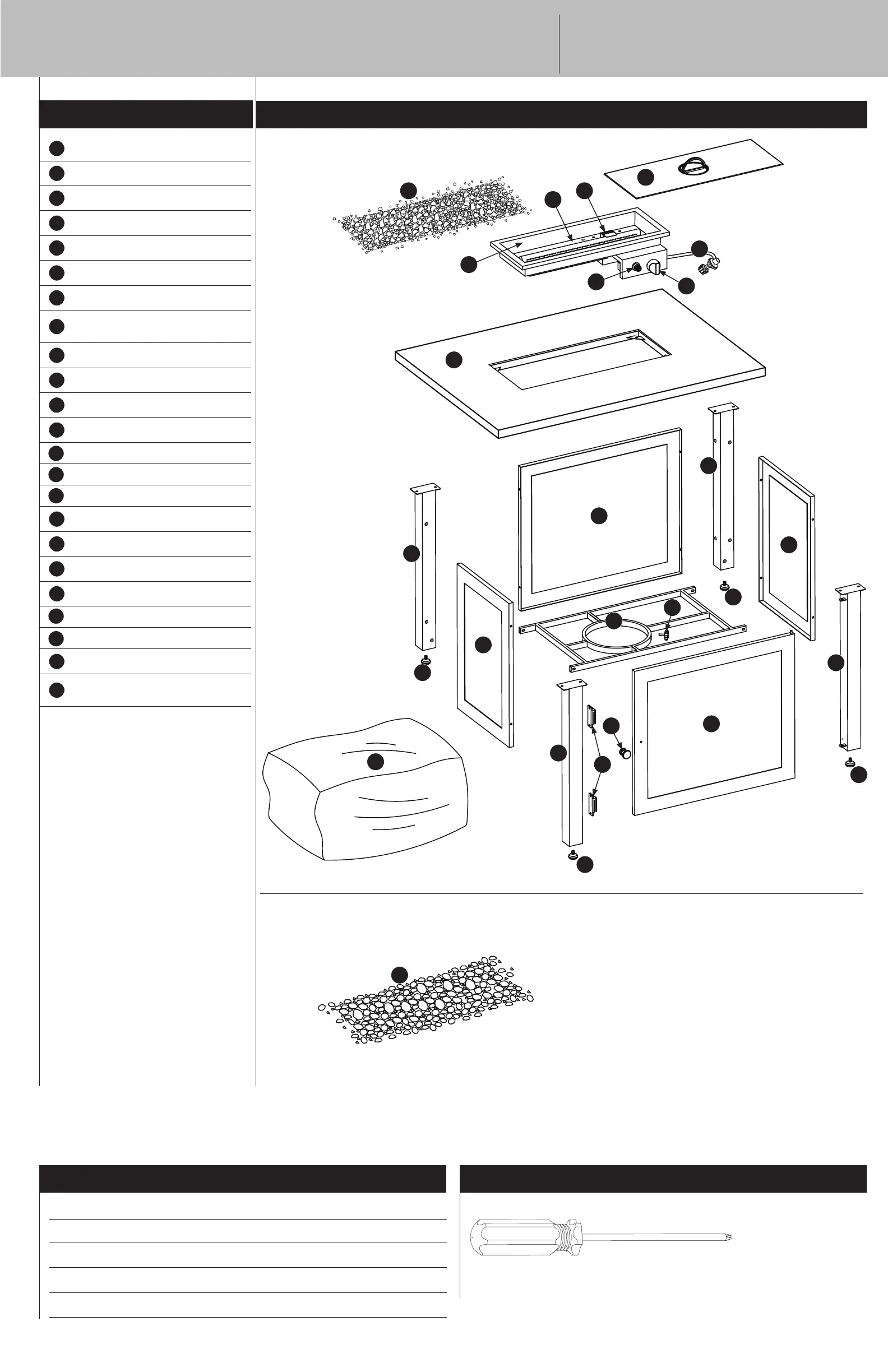

Expanded View
Need help? 1.888.398.8643
Do not return to place of purchase.
Replacement Parts
1.888.398.8643
5
1
19
19
19
22
13
14
15
20
21
