Endless Summer GAD1393SP - Parts List and Exploded View

LP Gas Outdoor Fireplace
Model No. GAD1393SP
4
Parts List
1
Bronze Glass Rocks
†
GLS-BRZ
2
Burner*
58-22-001
3
Pilot Assembly*
58-22-051
4
Bowl Assembly*
58-22-024
5
Igniter Button*
55-05-442
6
Control Knob*
55-05-436
7
Side Panel Cover (8)*
58-11-073
8
Side Panel (6)
58-05-028
9
Regulator/Hose
Assembly*
58-22-003
10
Hearth
58-23-215
11
Back Leg (2)
55-05-694
12
Middle Support Leg (3)
55-05-702
13
Tank Guard
55-05-458
14
LP Gas Tank Retaining
Chain
55-05-447
15
Base Support Bar
55-05-429
16
Foot (4)
55-05-692
17
Left Door
58-11-075
18
Door Support Leg
58-23-216
19
Right Door
58-11-076
20
Left Front Leg
55-05-700
21
Right Front Leg
55-05-704
22
Door Magnet (2)
58-23-217
23
Door Knob (2)*
55-05-697
24
Base*
55-05-428
25
LP Gas Tank Tray*
55-05-448
26
Cover
55-05-693
27
Lava Rocks (sold separately)
†
28
Logs (sold separately)
†
29
Glass Rocks (sold separately)
†
* Pre-assembled
†
Only use Blue Rhino Global Sourcing, Inc. products.

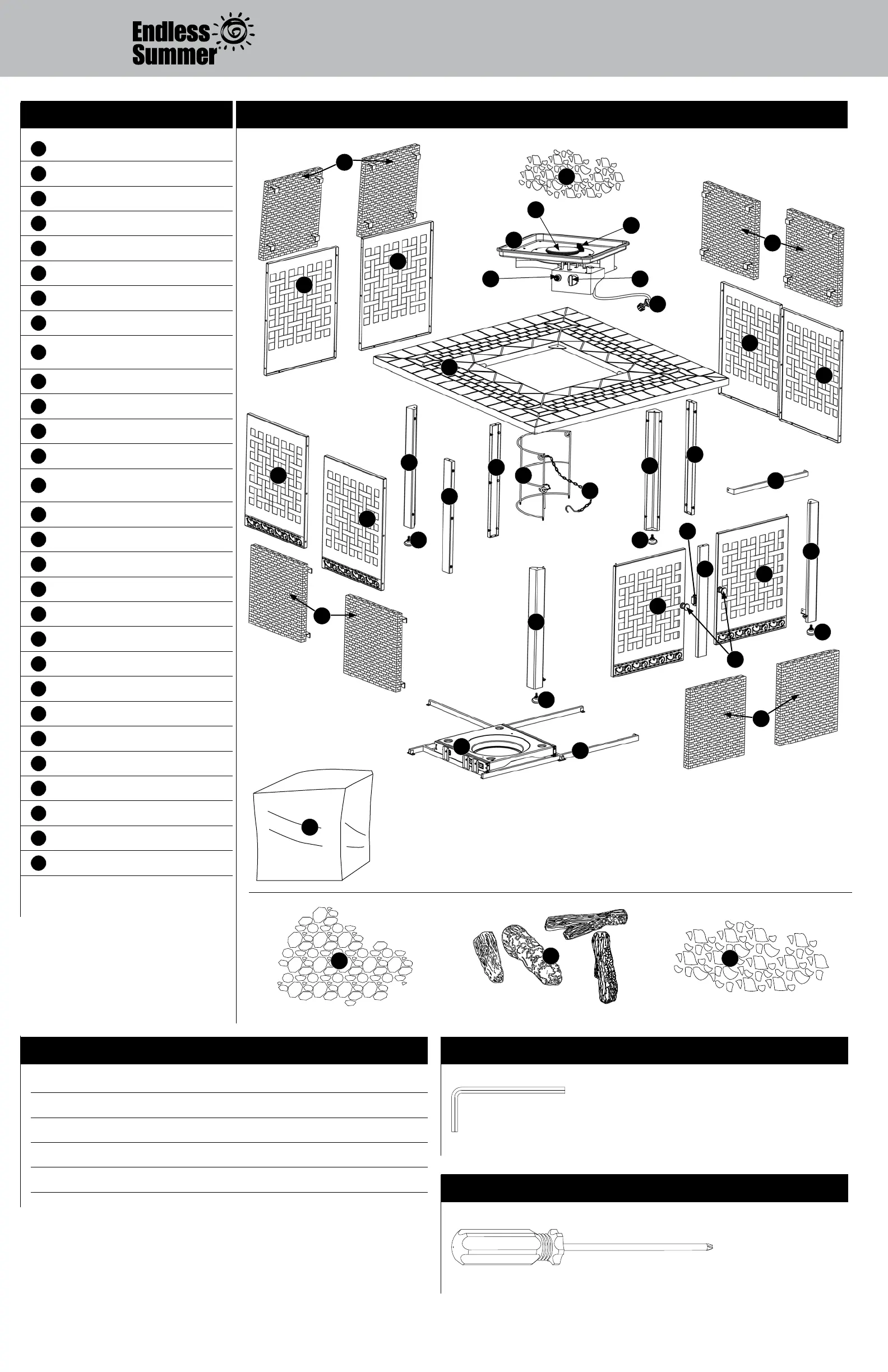

Exploded View
Tools Required for Assembly (Included)
M5 Allen Wrench 1 pc
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
1
8
8
8
8
8
8
6
Hardware
A
Screw
ø5x16 Black Nickel Plated
2 pcs
B
Screw
M5x10 Black Nickel Plated Hex
9 pcs
C
Screw
M5x10 Black Nickel Plated Truss Head
53 pcs
D
Wing Nut
ø5 Black Nickel Plated
3 pcs
E
AA Battery
1.5 V AA Battery
1 pc
9
3
5
4
11
11
12
12
12
10
14
15
20
17
18
19
13
21
24
25
16
16
1616
7
7
7
7
23
2
26
27
28
29
22
