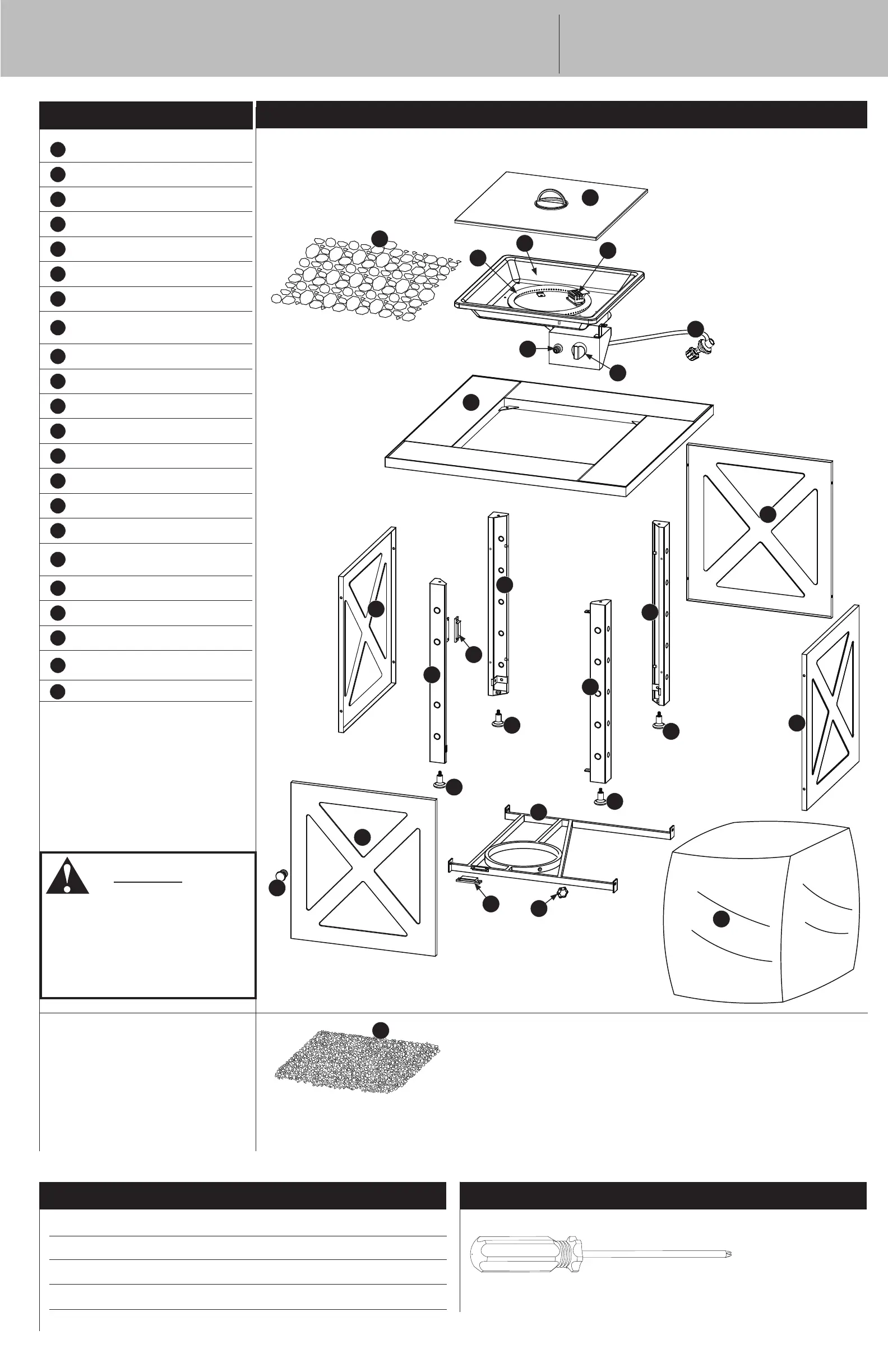

Expanded View
Need help? 1.888.398.8643
Do not return to place of purchase.
Replacement Parts
1.888.398.8643
5
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware Pack 58-23-862
A
Screw
M5x12 Black Nickel Plated Truss Head
16 pcs
B
Screw
M6x12 Black Nickel Plated Truss Head
4 pcs
C
Screw
M6X12 Black Nickel Plated Step Head
1 pc
D
AA Battery 1 pc
Parts List
1
Black Fire Glass
GLS-BLK
2
Table Insert
58-24-534
3
Bowl Assembly*
58-23-895
4
Igniter Cover*
58-23-896
5
Burner*
58-23-251
6
Control Knob*
58-23-139
7
Battery Cap
58-23-897
8
Regulator/Hose
Assembly*
58-23-922
9
Mantel*
58-24-535
10
Side Panel (3)
58-24-536
11
Leg A (2)
58-24-537
12
Leg B
58-24-538
13
Magnet (2)*
58-23-145
14
Leg C
58-24-539
15
Foot (4)*
58-23-147
16
Base*
58-24-060
17
LP Gas Tank Retainer
Bolt*
58-23-149
18
Door
58-24-540
19
Door Knob*
58-24-277
20
Cover
58-23-366
21
Lava Rock (not required
and sold separately)** 55-05-833
Hardware Pack 58-23-862
* Pre-assembled
W **Caution: Use only Mr. Bar-B-Q
Products LLC factory-authorized
fire glass/lava rock. The use of
any fire glass/lava rock that is
not factory-authorized can be
dangerous and will void your
warranty.
Sold Separately
WARNING
When heated, lava rocks may react
by breaking and throwing fragments
of rock. Be sure to season the lava
rocks at a high temperature before
use in order to avoid potential
personal injury or damage.
IMPORTANT BEFORE USE
HOW TO SEASON LAVA ROCK ON
PAGE 10.
10
10
10
18
17
12
3
9
2
8
6
14
11
11
4
19
16
20
15
15
13
5
7
1
15
15
21
22
13
