Endless Summer WAD1081SP - Page 3

Need help? 1.800.762.1142
Do not return to place of purchase.
Replacement Parts
parts.BlueRhino.com
1.800.762.1142
3
Parts List
1
Handle
58-11-013
2
Spark Guard
58-11-014
3
Cooking Grid
58-11-015
4
Wood Grate
58-11-016
5
Bowl A
58-11-017
6
Bowl B
58-11-018
7
Bowl Support
58-11-019
8
Fireplace Tool
58-11-009
9
Leg (4)
58-11-021
Hardware
A
Screw
M5x20 Nickel Plated
4 pcs
B
Bolt
M6x10 Nickel Plated
4 pcs
C
Nut
M5 Nickel Plated
8 pcs
D
Nut
M6 Nickel Plated
1 pc
E
Lock Washer
ø5 Nickel Plated
4 pcs

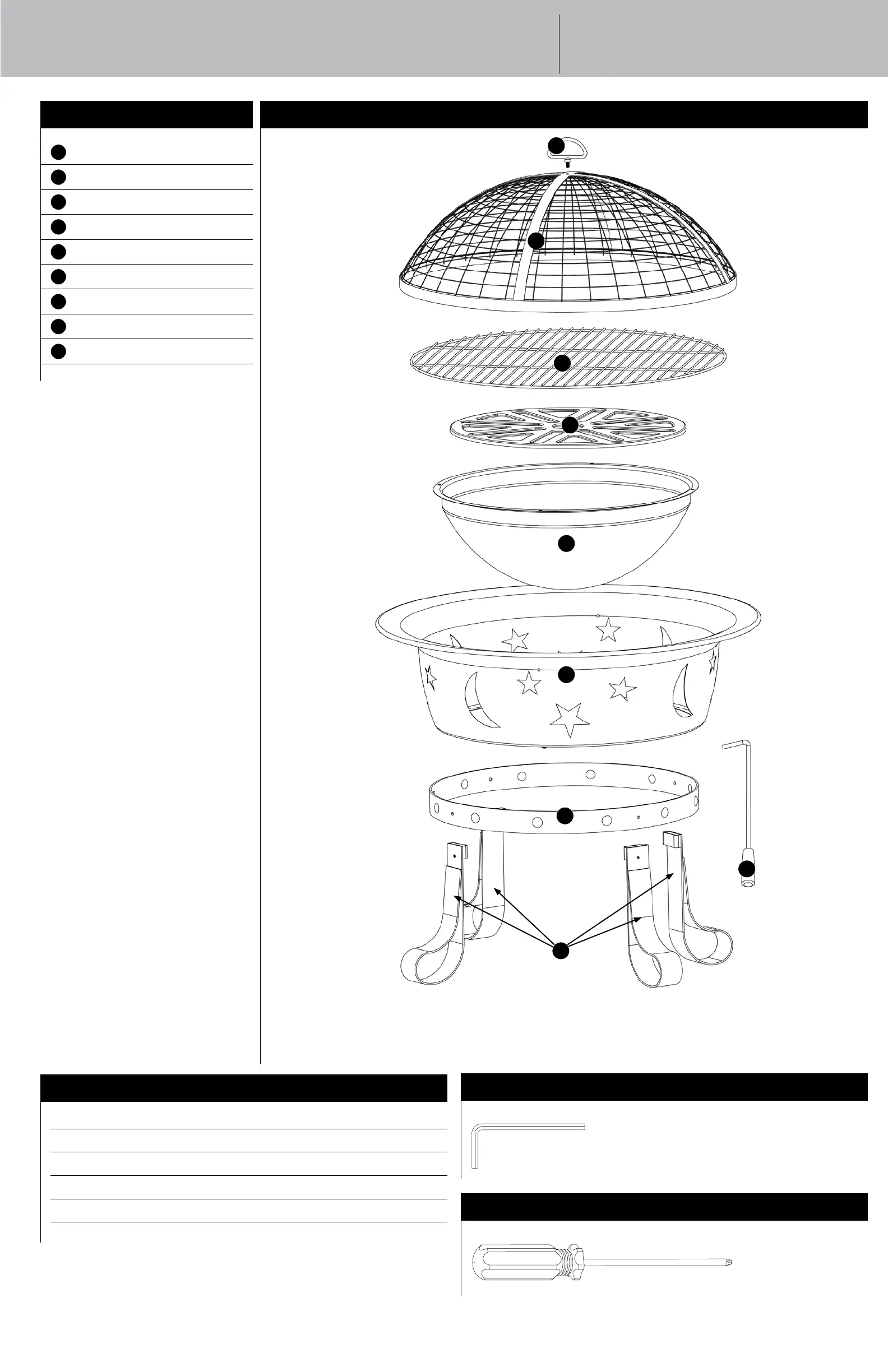

Expanded View
1
2
3
4
5
7
8
Tools Required for Assembly (Included)
Allen Wrench
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver
6
9
