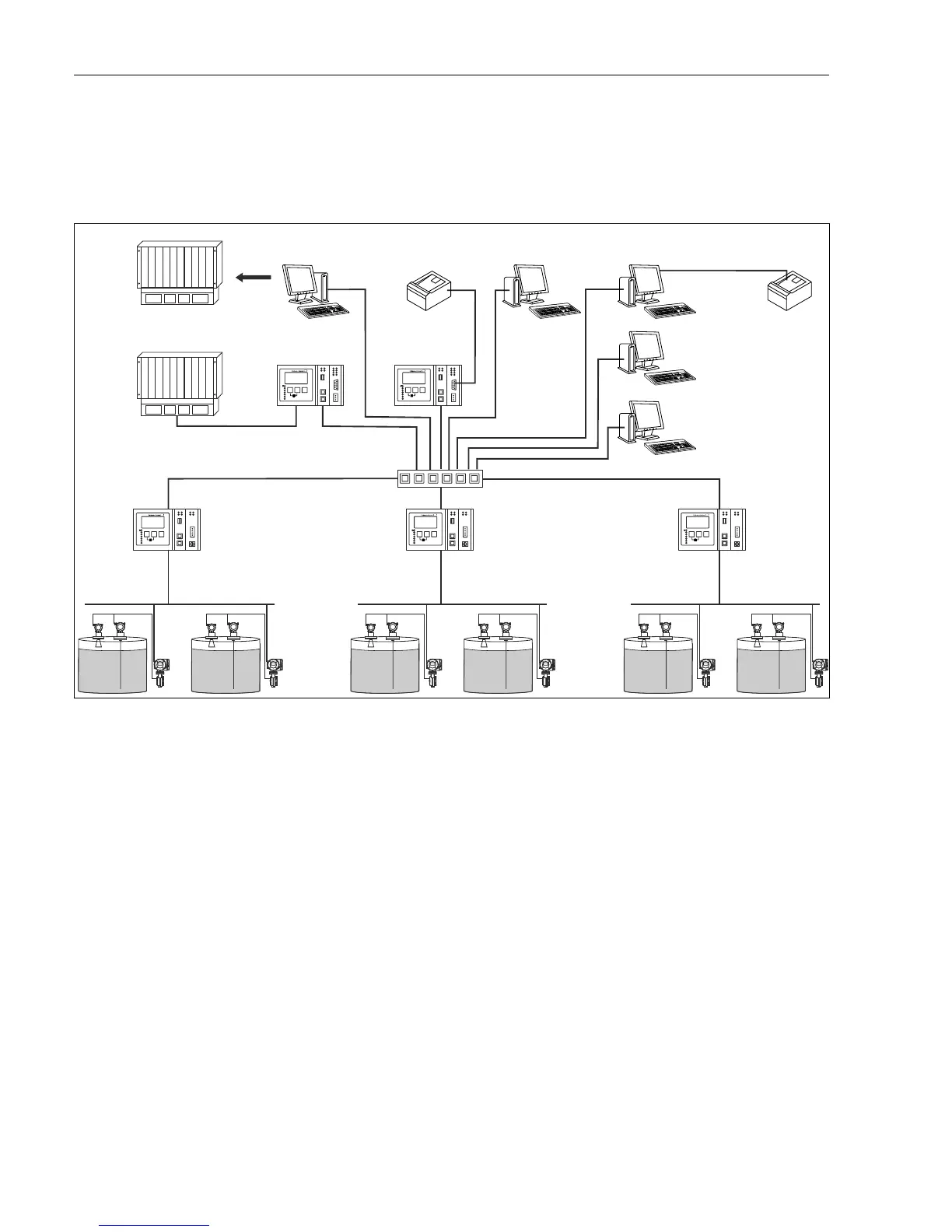

7.1 System architecture
L00-NXA82xxx-02-00-00-en-006
NXA820
Tank Scanner
NXA820
Tank Scanner
Switch
NXA820
Tank Scanner
NXA821
Data Concentrator
NXA820
NXA820
NXA822
Host Link
NXA820 NXA820 NXA820
Ethernet
DCS
OPC Server FieldCareSeveral Printer
for W+M reports
Printer
Browser
Browser
Browser
DCS
Modbus RTU RS232/485,
Modbus TCP
Fieldbus protocol
Fieldbus protocol
Operator 1
Operator 2
Operator 3
Fieldbus protocol
(e.g. Modbus, V1, WM550)
