8.7 JIS calculation flow charts
The JIS standard is the Japanese Industrial Standard.

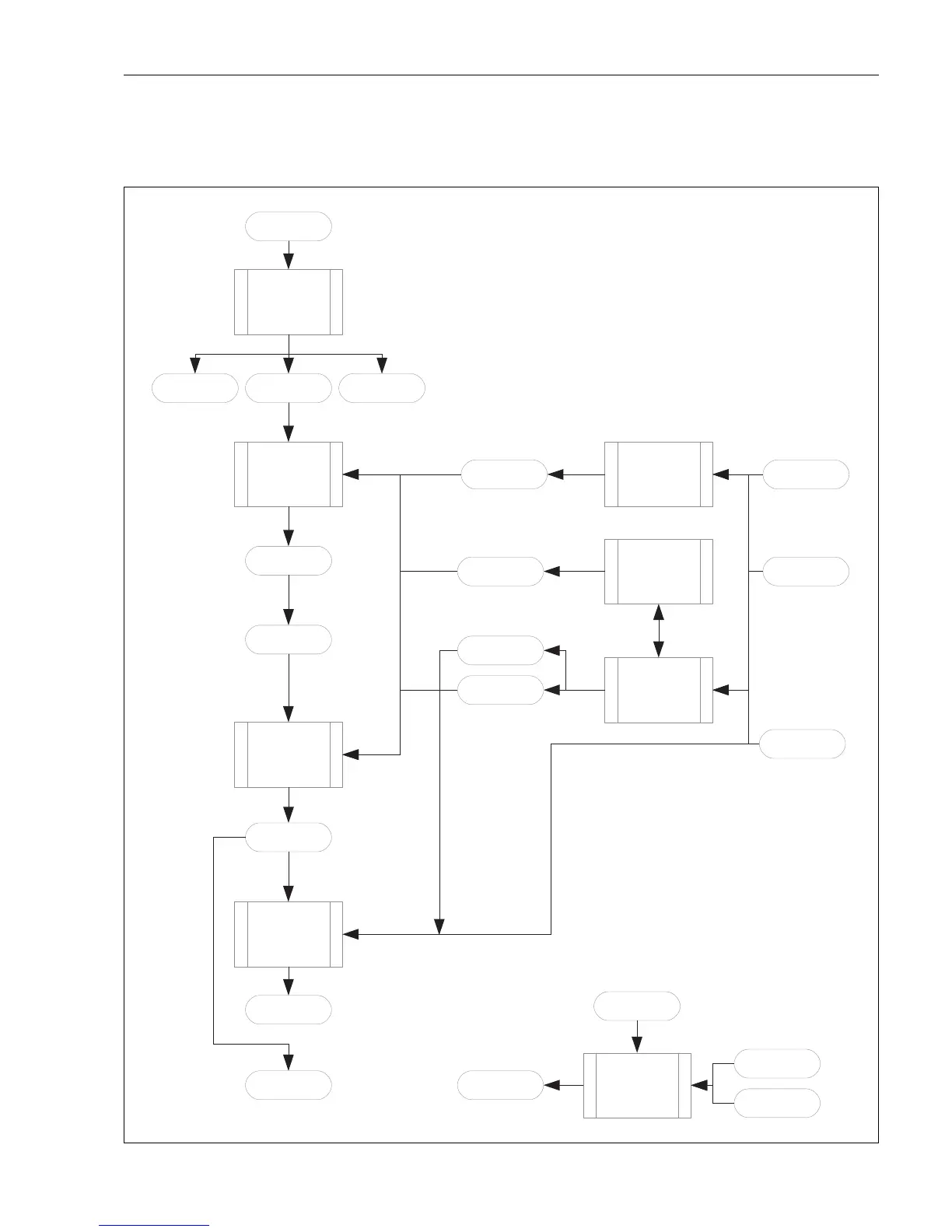

JIS_calculation_flow-chart
Observed dens.
Level
VCF
Product temp.
Ref. density
Calculate density/
VCF
Calculate
Gauge Volume
Rem Cap. TOV (Gauged) Avail Vol.
Calib. Temp.Calculate CTShCTSh
Calculate FRAFRA
TOV
Calculate
TOV
GOV = TOV
Calculate
GSV /TCV
GSV
Calculate
NSW (+WCF)
NSV = GSV
NSW
Calculate
Vapour mass &
Vapour density
Vapour press.
Vapour temp.
Vapour Volume.
Vapour mass
