4 Foundation Thermostat Wiring

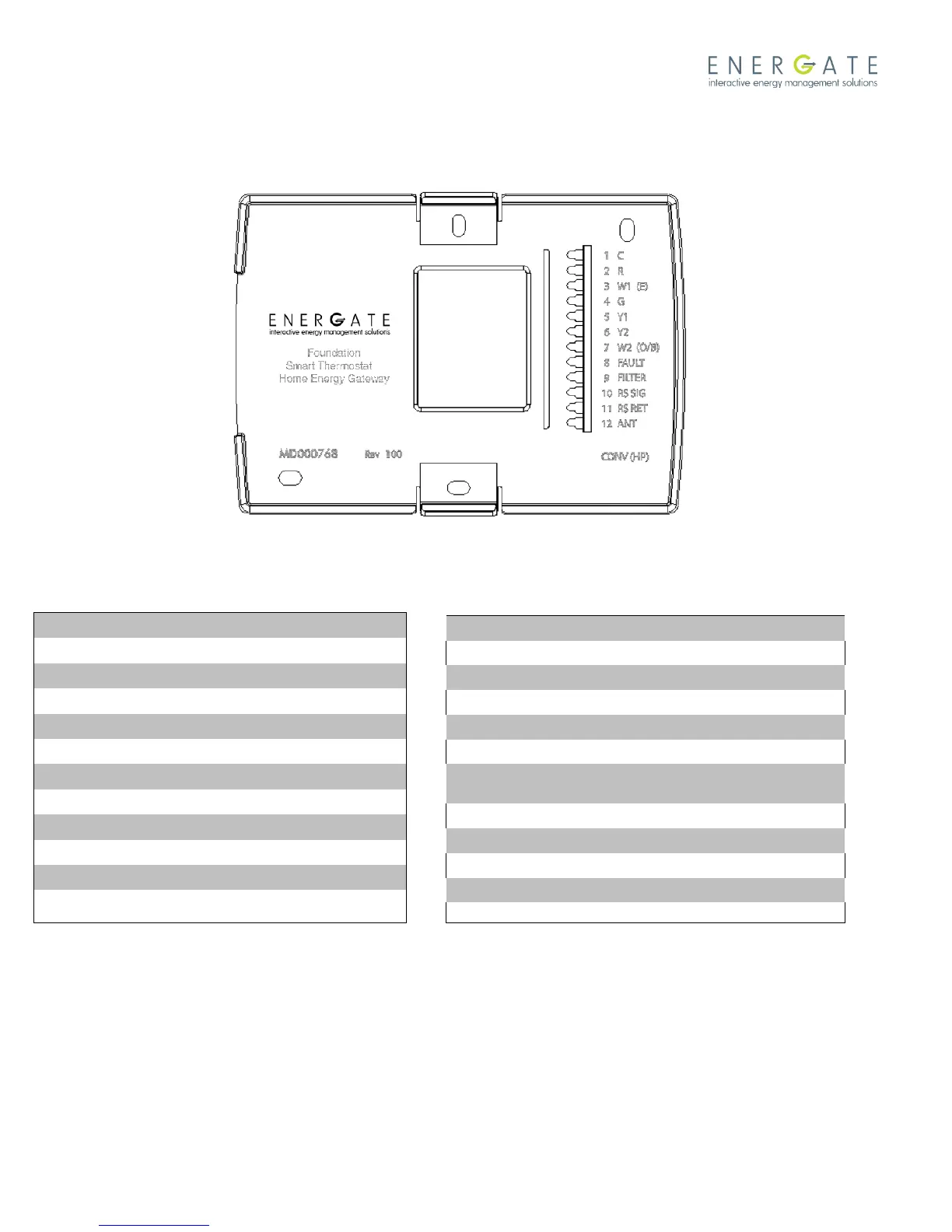

The following diagram shows the backplate of the Foundation thermostat.
4.1 Conventional System 4.2 Heat Pump
Common(GND)
C
1
Power (24VAC)
R
2
1st Stage Heat
W1
3
Fan
G
4
1st Stage Cool
Y1
5
2nd Stage Cool
Y2
6
2nd Stage Heat
W2
7
8
Filter
FILTER
9
Outdoor Sensor Signal
RS SIG
10
Outdoor Sensor Return
RS RET
11
Antenna
ANT
12
Common(GND)
C
1
Power (24VAC)
R
2
Emergency Heat
E
3
Fan
G
4
1st Stage Heat Pump
Y1
5
2nd Stage Heat Pump
Y2
6
Reversing/Changeover
Valve
O/B
7
Heat Pump Fault
FAULT
8
Air Filter
FILTER
9
Outdoor Sensor Signal
RS SIG
10
Outdoor Sensor Return
RS RET
11
Antenna
ANT
12
