Ascent Oil August 2019 16
PIPING
All piping and accessory connections should follow good practice using approved joint sealants.

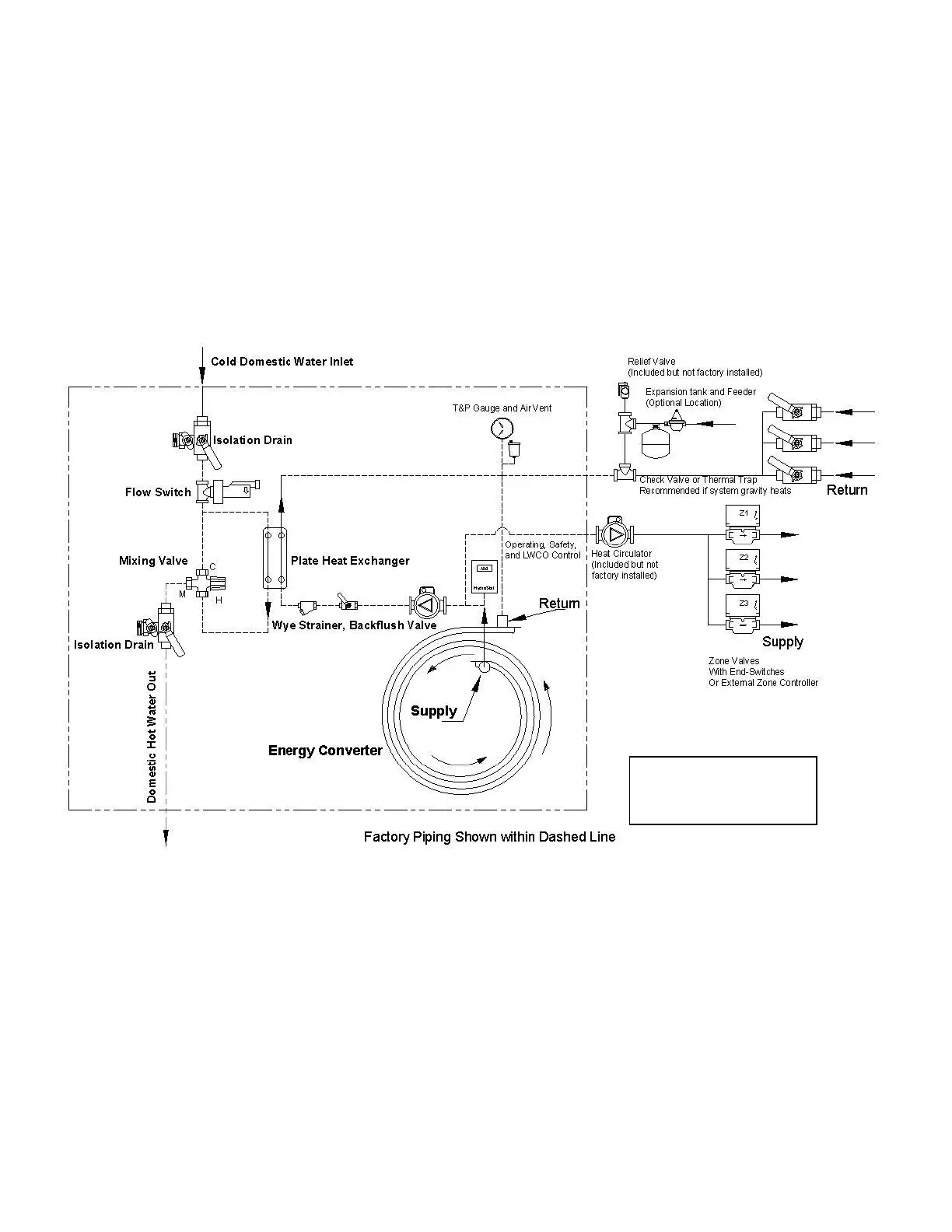

Figure 2C indicates a typical flow schematic for boiler water feeding multiple zones. Each system will vary according to job
location.
Supply and return connections are 1”NPT on the EK1T Ascent Combi and EK1T+ Ascent Plus Combi.
Call Energy Kinetics to obtain piping and wiring instructions for alternate applications, such as hydronic heating, radiant
heating, domestic hot water, swimming pool heating, multiple boilers, injection loops, etc.
Figures 2C and 2D indicate general system piping arrangement and options. Piping of individual systems may vary from
figures.
Some site specific heating zone piping configurations may allow heat migration, in which case a flow check(s) may be
installed to prevent the gravity flow of heat.
Figure 2C
Zoning with Zone Valves
Use Energy Kinetics
Smart Thread Sealant
P/N 10-0620
