TECHNICAL DATA
ENGLISH 33

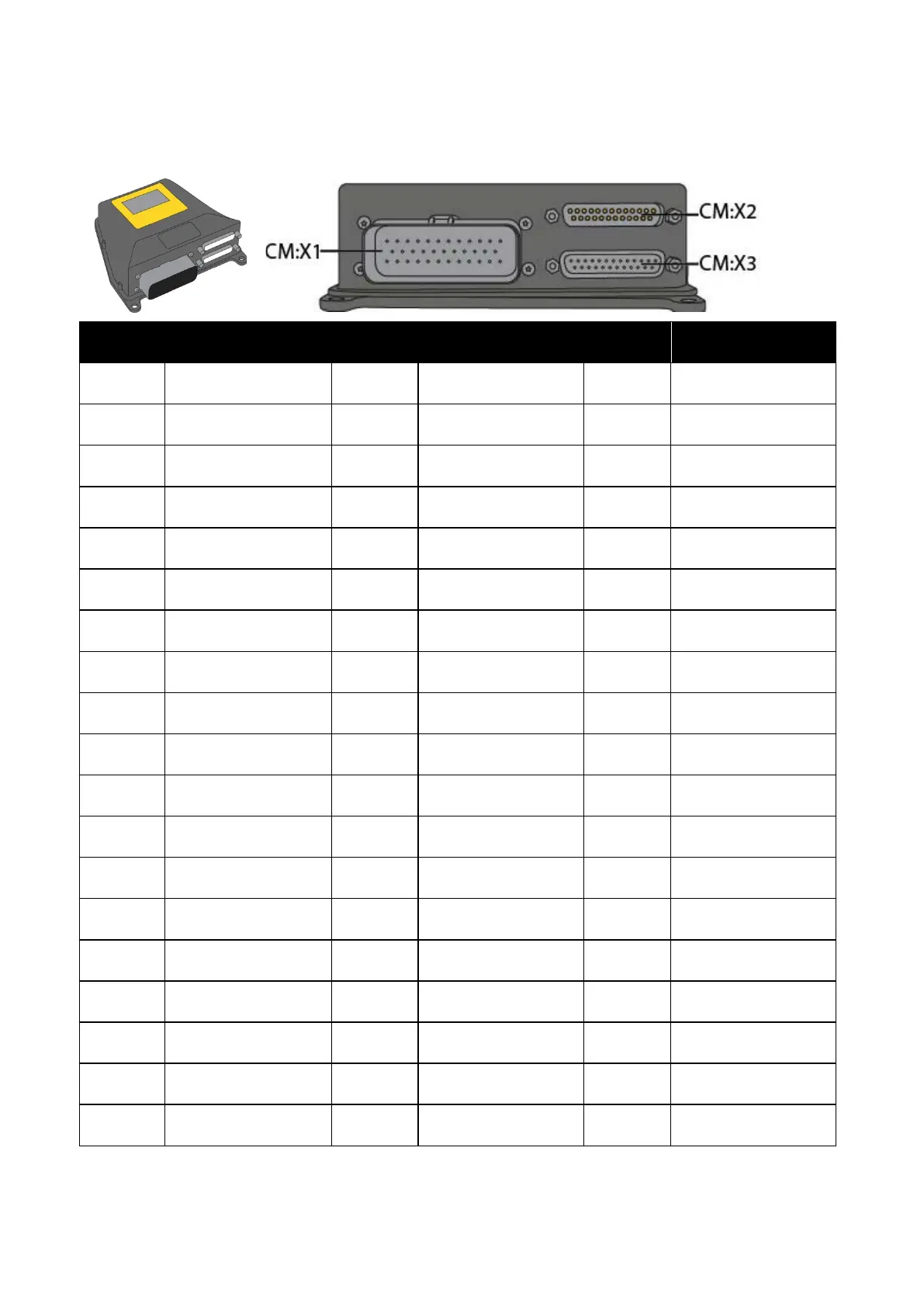

7.1.1. Connectors
CM :X1 Function CM :X2 Function CM :X3 Function
1 PWM1 (0-2A) 1 AI1 (LA1) 1 DI13
2 GND 2 AI2 (LA1) 2 DI14
3 PWM2 (0-2A) 3 AI3 (LA2) 3 DI15
4 GND 4 AI4 (LA2) 4 GND
5 PWM3A (0-2A) 5 AI5 (LA2) 5 GND
6 GND 6 AI6 (LA2) 6 GND
7 PWM3B (0-2A) 7 +12/24V 7 CAN-H
8 GND 8 AI7 (RA1) 8 CAN-L
9 PWM4A(0-2A) 9 AI8 (RA1) 9 PWM5 (0-100%)
10 GND 10 AI9 (RA2) 10 PWM6 (0-100%)
11 PWM4B (0-2A) 11 AI10 (RA2) 11 DO5 (100mA)
12 GND 12 AI11 (RA3) 12 DO6 (100mA)
13 DO1 (CV1) (3A) 13 AI12 (RA3) 13 DO7 (100mA)
14 GND 14 DI1 (LD1 NO) 14 +12/24V
15 DO2 (CV2 ) (3A) 15 DI2 (LD1 NC) 15 +12/24V
16 GND 16 DI3 (LD2 NO) 16 +12/24V
17 DO3 (3A) 17 DI4 (LD2 NC) 17 +12/24V
18 GND 18 DI5 (LD3) 18 DI16 (TL_NEG)
19 DO4 (3A) 19 +5V 19 DI17 (TL_POS)
