engcon DC2
USER 1
USER 2
SHEAR
1
2
5.2

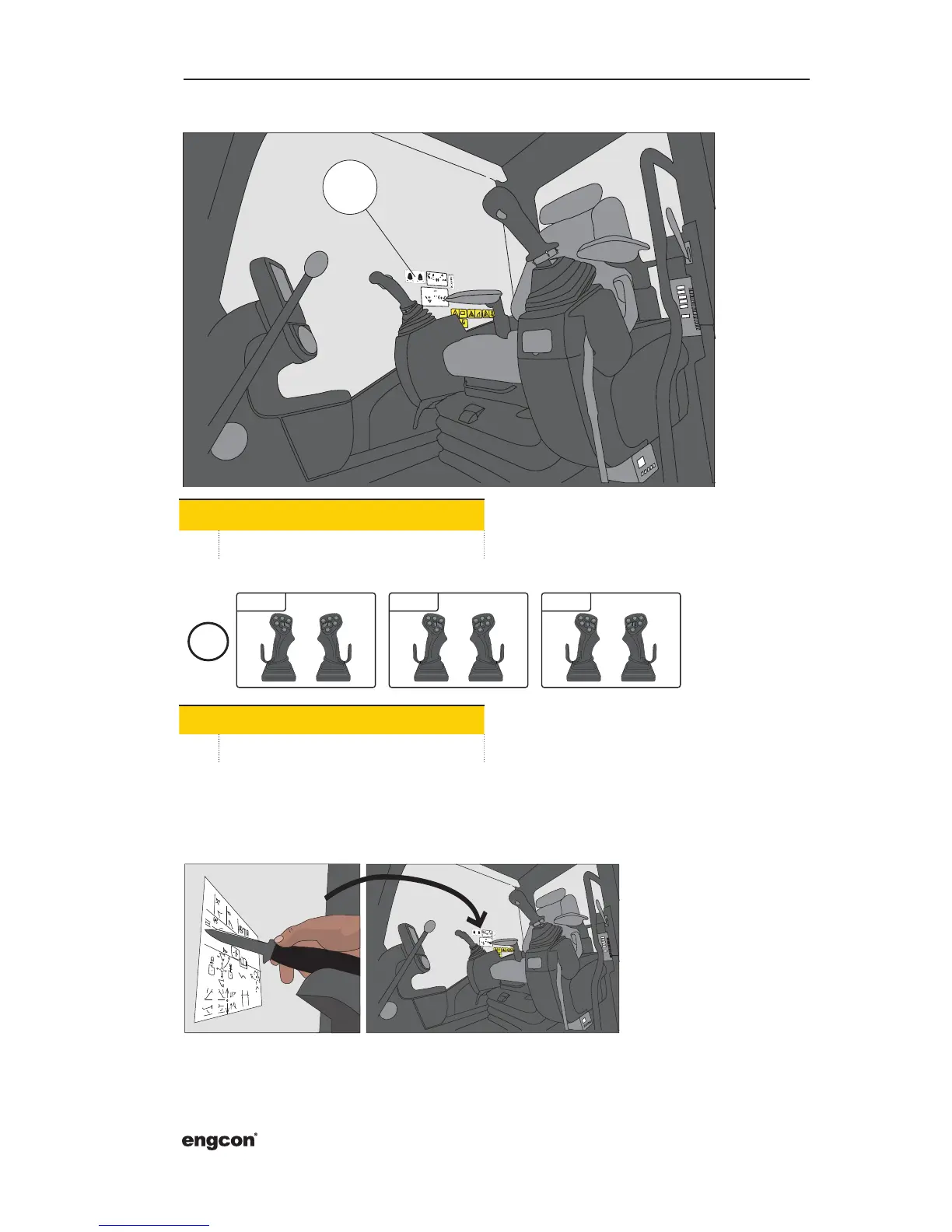

Axthedecalsinaspoteasilyvisibletothedriver
Pos
Designation
1
Joystick decals
Pos
Designation
2
Example,decallocation
5�3
Cut away misleading information on the original decals
Note that machine functions that still apply must not be cut away
.
Note that engcon decals do not fully replace the machine's original decals.
18
20
Table of Contents
Default Chapter
3
Table of Contents
3
1 Safety Directives
4
General
4
Safety Checklist
4
The Environment
5
2 Symbols in the Installation Instructions
5
3 Checking Delivered Parts
6
841519 MIG2 2 Rollers
6
841520 MIG2 3 Rollers
6
841521 MIG2 3 Rollers, FNR
6
841522 MIG2 4 Rollers
7
841523 MIG2 4 Rollers, FNR
7
841524 MIG2 5 Rollers
7
841525 MIG2 5 Rollers, FNR
8
841528 MIG2 6 Rollers
8
841529 MIG2 6 Rollers, FNR
8
4 Joystick Installation
9
Area a
9
Removal of Original Joystick
9
Installation, Screw
9
Cable Routing
10
Attachment
10
Reinstallation
11
Hand Support
12
Attachment Kit
12
Standard Bellow Adapter
13
Bellow Adapter Kit
13
Area B
14
MIG2 Left (842020)
14
MIG2 Right (852047)
15
MIG2 Right FNR (852046)
16
Area C
17
5 Documenting the Installation
18
Build Your Own Decal
18
Affix the Decals in a Spot Easily Visible to the Driver
19
Cut Away Misleading Information on the Original Decals
19
Update the Engcon Instructions for Use
20
Update the Machine's Original Instructions for Use
20
Decals for Multiple User Banks
21
4
