4-1 INSTALLATION AND VENTILATION
(1) Your shockproof fridge should be installed on a solid surface board or floor. .
(2) Be sure your fridge is not put in direct sunshine, near a gas stove, heater or other
heat-generating appliances.

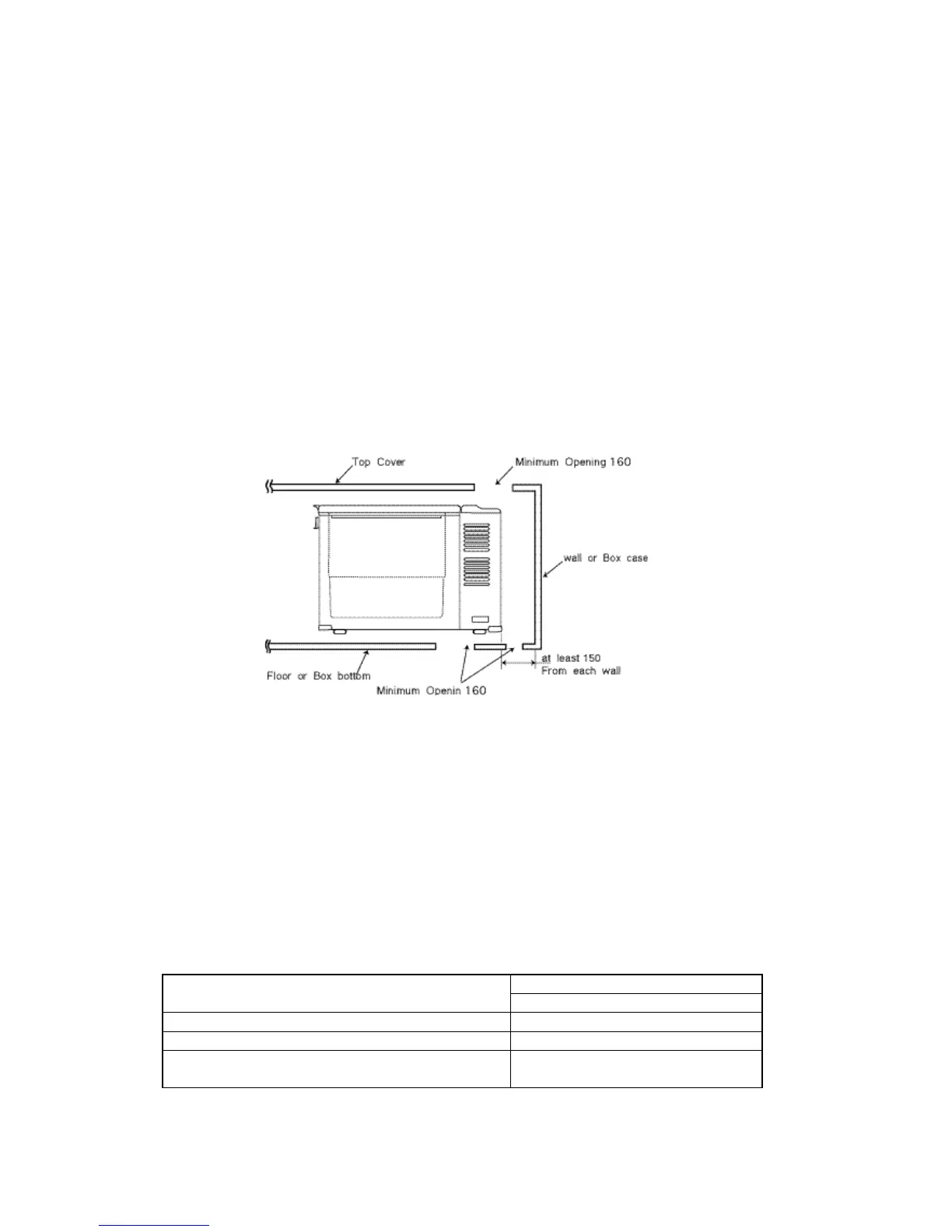

(3) Adequate ventilation and suitable distance from each wall (at least 150mm or more)
result in maximum cooling performance and minimum electric current consumption for
"free standing use" (refer to the fig. as below).
(4) Avoid installing your fridge close to a kitchen sink and faucet.
(5) If you would like to use the fridge under the counter or in the fixing box, please make
sure the following air ventilating condition.
① Make the openings for ventilation at top and bottom cover both side.
② Opening size must be larger than 160㎠ for each opening (additional air circulation
above the condenser is expected better cooling performance).
［CAUTION］
Insufficient ventilation results in poor cooling performance, compressor continuous
operating, to be accelerated battery discharge and sometimes to be shortened
the fridge life.
4-2 WIRE GAUGE IS IMPORTANT !
Please use following wire for the connection from refrigerator to battery.
Shorter than 3.7 m (12 ft.)
From 3.7 m (12 ft.) to 6.1 m（20 ft.)
3
Distance Between Fridge and battery
DC 12 volt series
Wire gauge
From 6.1 m (20 ft.) to 9.6 m（31.5 ft.)
SWG ♯ 18 (AWG ♯ 16) / 1.2㎟
SWG ♯ 16 (AWG ♯ 14) / 2.1㎟
SWG ♯ 14 / 3.2 ㎟
(AWG ♯ 12 / 3.3 ㎟)
㎠
㎜
㎠
