EnGenius ENS202EXT Quick Installation Guide

Quick Installation Guide
EnGenius Europe | Veldzigt 28, 3454 PW De Meern,
Netherlands | 0900-WIFIABC | www.wiabc.com
Disclaimer: Information may be subject to changes without prior notication.
Follow us
https://www.linkedin.com/company/engeniuseurope
https://plus.google.com/+EngeniusEuropeBVDeMeern
https://www.youtube.com/user/engeniuseuropebv
https://twitter.com/engeniuseu
ENS202EXT
ENS202EXT setup
1. To configure the ENS202EXT, open a web browser (example: Microsoft Inter-
net Explorer, Mozilla Firefox, Google Chrome, etc.)
2. In the adress bar of the web browser, enter: 192.168.1.1 (the default IP
address of the ENS202EXT) and hit ENTER.

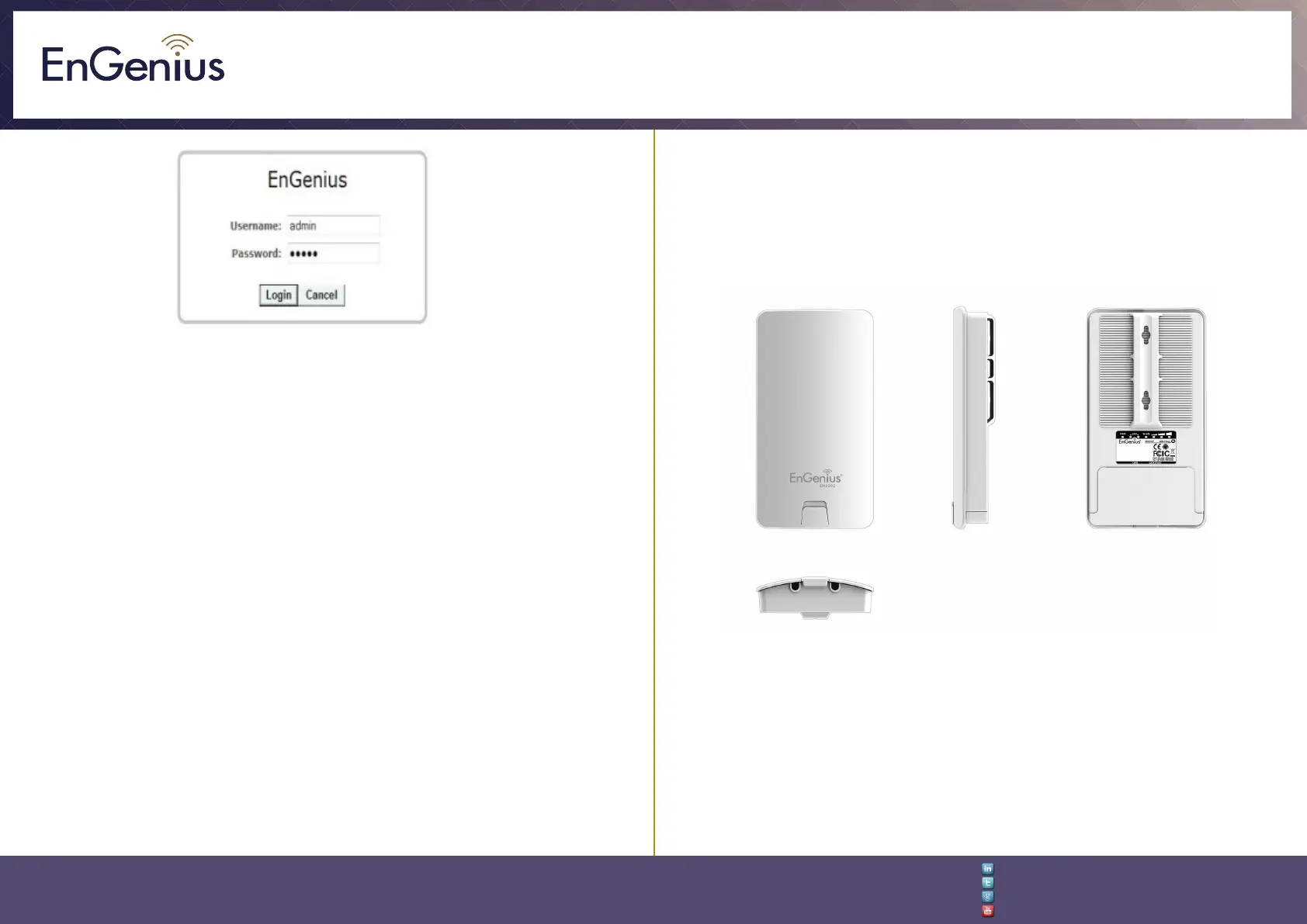

3. A login screen will appear. By default, the username of the ENS202EXT is
admin and the password is admin. Enter the current username and password
of the ENS202EXT and then click ‘Login’. Refer to the ENS202EXT user manual
on how to change the username and password.
4. After clicking ‘Login’ with the correct username an password, the
ENS202EXT main menu will appear. If you are successful, proceed to setting up
the wireless connection.
Switching between operating modes
This device can operate in the following modes: Access point, Client bridge,
WDS AP, WDS bridge, WDS station and Client router.
A. Click on the ‘operation mode’ link under the system navigation drop-down
menu.
B. Operating mode: Select an operating mode from the list (Access point, Client
bridge, WDS AP, WDS bridge, WDS station or Client router.) and then click on
the ‘Apply’ button.
C. All basic setup is completed. Note: The wireless connection is not secure. To
setup security on the ENS202EXT, refer to the ENS202EXT user manual.

EnGenius ENS202EXT Specifications

General

5 GHz	No
Modulation	16-QAM, 64-QAM, BPSK, OFDM, QPSK
Frequency band	2.4 GHz
Operating modes	Access Point (AP), Client Bridge, Client Router, Repeater, WDS
Channel bandwidth	40 MHz
Transmitting power	15 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Virtual LAN features	Tagged VLAN
Spread spectrum method	DSSS
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Supported data transfer rates	1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54, 300Mbps
Antenna features	Detachable antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
Placement	Wall
Product color	White
International Protection (IP) code	IP55
Interface	LAN, WLAN
USB 2.0 ports quantity	0
Security algorithms	802.1x RADIUS, WPA, WPA2
Number of SSID supported	4
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90 %
AC input voltage	24 V
Flash memory	16 MB
Internal memory	64 MB
Package depth	309.88 mm
Package width	71.12 mm
Package height	233.68 mm
Package weight	725.7 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	185.42 mm
Width	99 mm
Height	28.95 mm
Weight	317.5 g
