Technical Data, Type 625 ("Fireball"):
Rated power: approx. 60 watts at 8 or 16 ohms;
Tubes:
Poweramp: V1, V2: 6L6GC matched set.
Preamp: V3 (input tube): ECC 83 / 12AX7, FQ selected;
V4, V5: ECC 83 / 12AX7 selected;
V6: ECC 83 / 12AX7, standard;
Fuses: external: 1 AT (slow) for the 230 V model;
2 AT (slow) in the 100 and 120 V models.
internal: 1,25 AT (slow) for the 230 V model;
2,5 AT (slow) in the 100 and 120 V model.
Important: Replace fuses only with same type and rating!
Power
Consumption:
160 watts
Dimensions: approx. 71 x 27 x 27 cm (l x h x d)
Weight: approx. 19 kg
Tube Array:
V 1 V 2
V 3 V 4 V 5 V 6
Power
Transformer
Output
Transformer

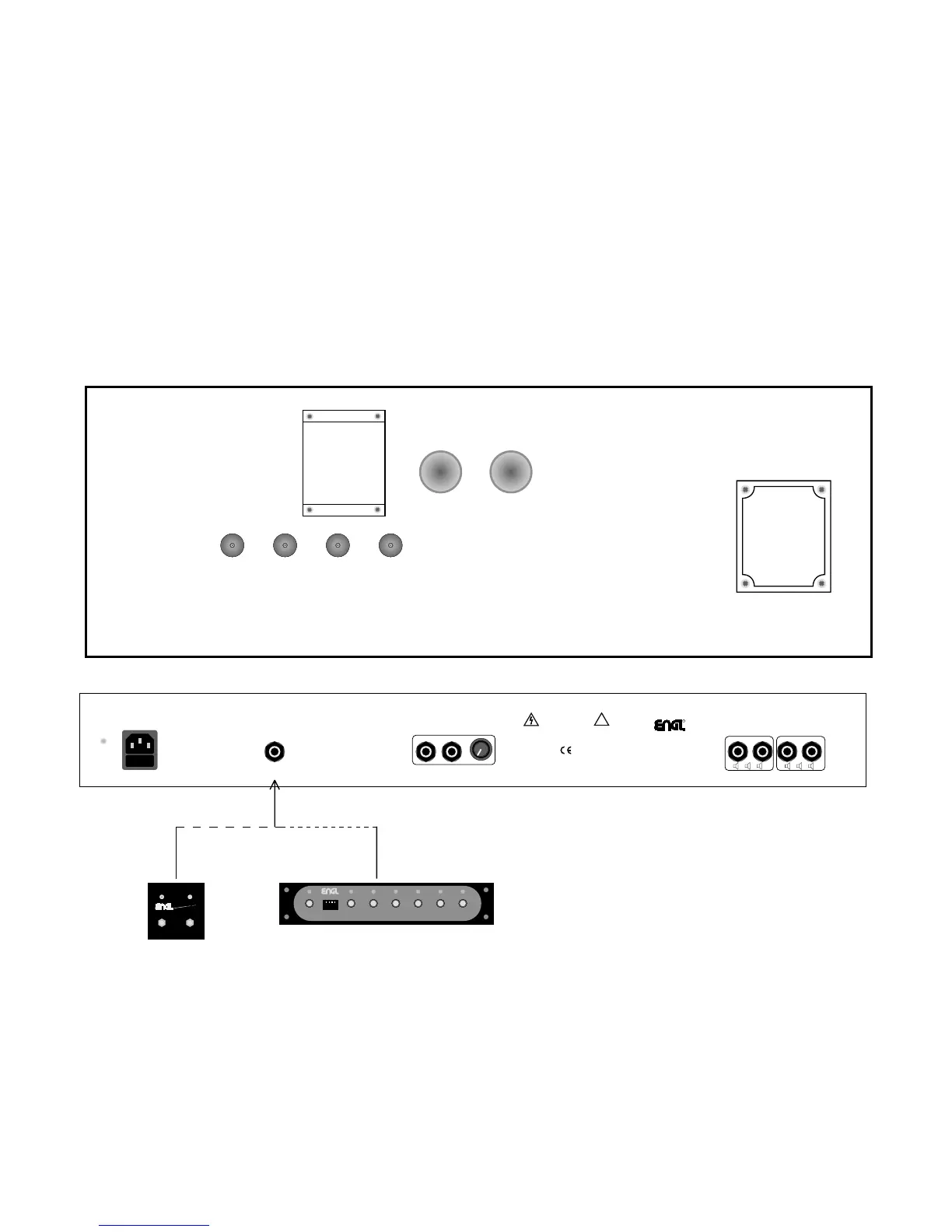

Options for controlling the Fireball amp remotely:
1. Two-way footswitch (e.g. ENGL Z-4): Connect it to the amp (jack 18) via a stereo ¼" cord.
Functions: Normal - Ultra Gain, Master A - Master B.
2. MIDI-Switcher (e.g. ENGL Z-11): Connect the unit to the amp viaw stereo ¼" cords. The
buttons on the Switcher control Normal - Ultra Gain, Master A - Master B. If you program the
diverse switching configurations to different MIDI program locations (e.g. Ultra Gain & Master A,
or Normal & Master B, etc.), you can activate the desired configuration directly via a MIDI board
(e.g. ENGL Z-12). This type of control option is extremely versatile, we recommend it highly
if you intend to use the amp in conjunction with a MIDI system (e.g. MIDI effects devices).
