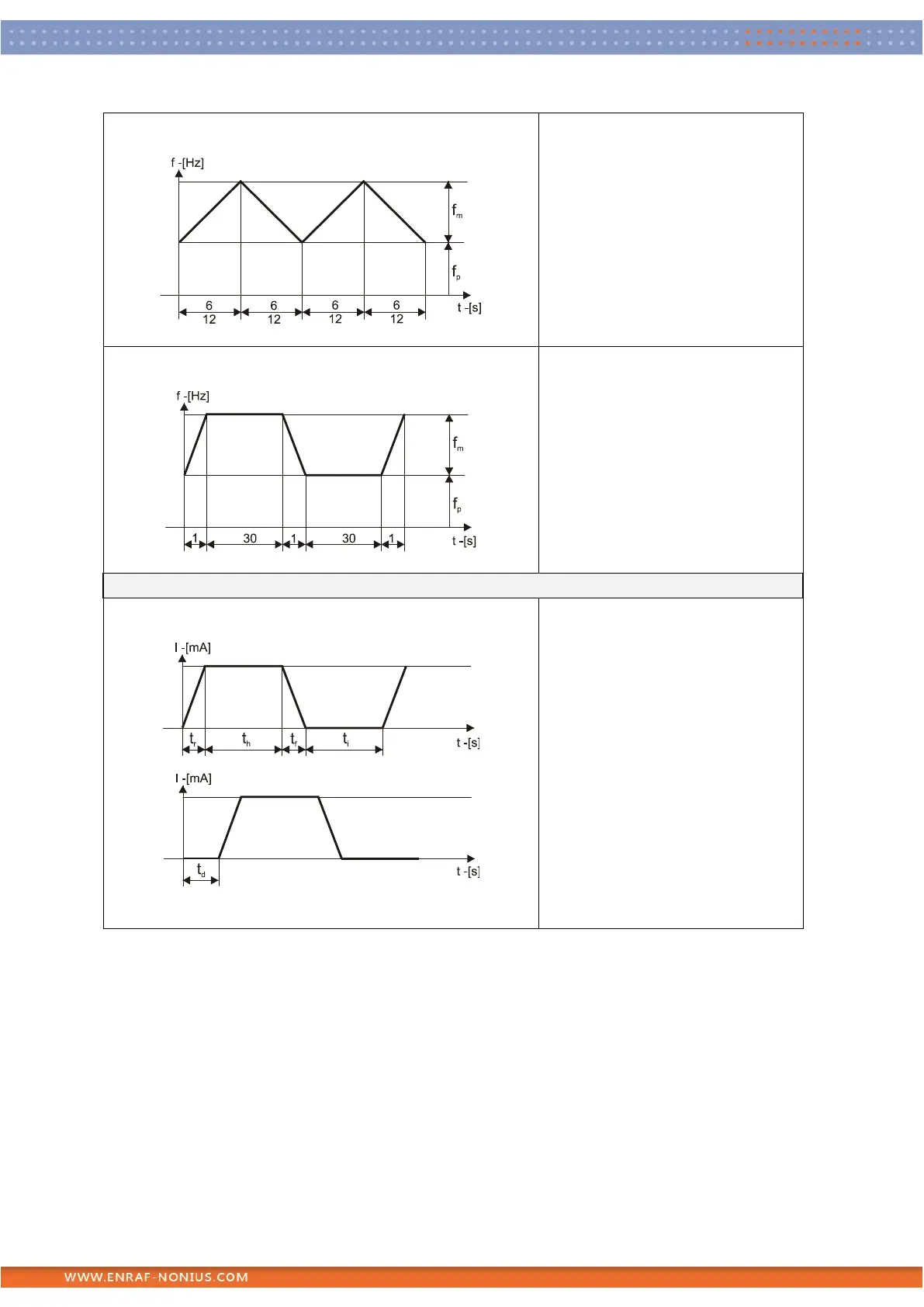

Modulation program 6/6 or 12/12
6:6 or 12:12
f
p
Pulse frequency 
f
m
Frequency modulation
Modulation program 1/30
1:30
f
p
Pulse frequency 
f
m
Frequency modulation 
Surge program
Surge program parameters
t
r
Ramp up time 
t
h
Hold time
t
f
Ramp down time
t
i
Interval time
t
d
Delay time 
FIGURE 28
FIGURE 29
FIGURE 30
