3 Device components

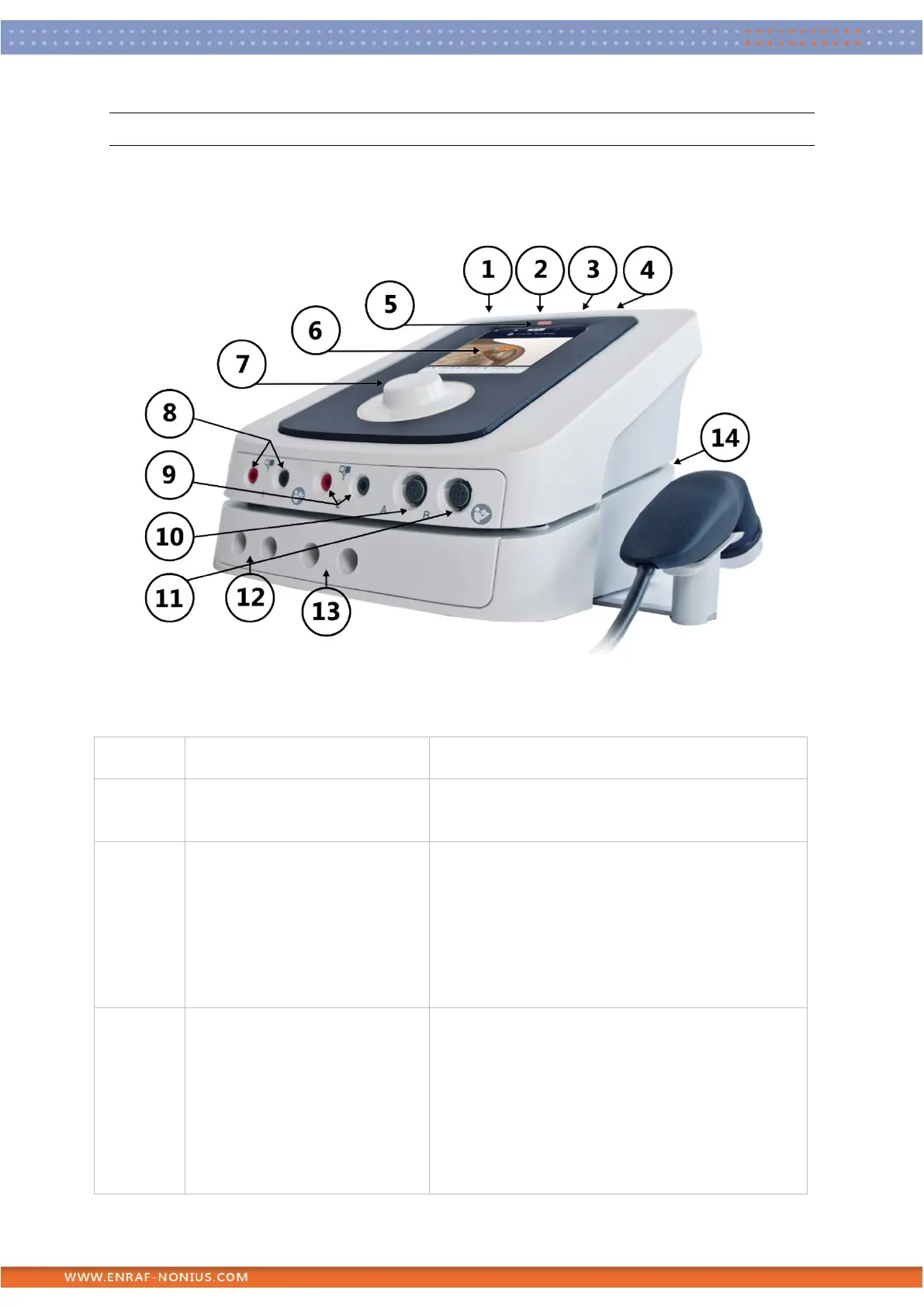

Parts of the device
0 Device disconnected from mains supply
1 Device connected to mains supply
Connector for mains cable
Type number/warning label
Connect supplied mains cable here to power the
device.
Provides information on the apparatus, such as type
and serial number, as well as connection data such
as mains voltage and maximum current
consumption.
Remote Control connection
This connection has two functions.
1 Attachment of optional remote-control
unit. Used to remotely adjust the output
current on the electrotherapy channels or
to stop the treatment on all channels.
2 Attachment of a USB-stick. Used for
software updates and to backup and
restore user data.
