Page 23 of 72 EN109-1498751-47 IFU
11 Operation
Set up
Turn on the apparatus
Switch the unit ON via the push button [4].
The unit starts by executing the self-test.
At the end of the self-test a beep sound can be heard and the unit enters the Home menu and is
ready for use.

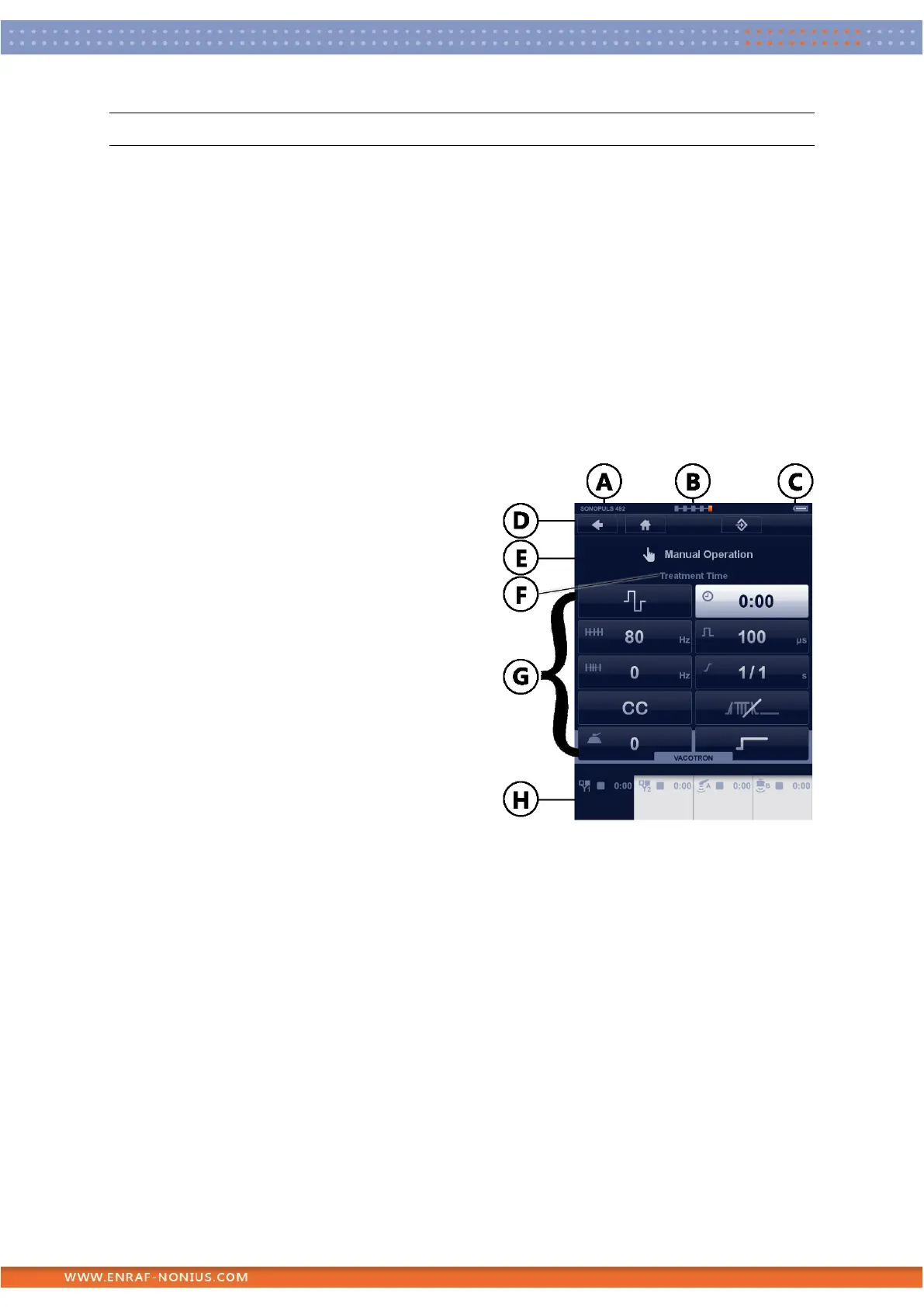

Display screen
The display is organized as a spreadsheet of 4 sheets, one for each channel. The channels refer to the
patient connector groups accessible at the front of the unit. A sheet can be selected by touching its
tab. The tab shows important information, such as the output amplitude and the remaining treatment
time. This information is continuously visible, also when the sheet is not selected.
[A] Device name.
[B] Navigation level. Shows where you reside in
the navigation.
[C] Battery indicator (only visible when operating
from the battery).
[D] Navigation bar. Provides screen dependent
buttons for several functions. See paragraph
Navigation Bar for details.
[E] Screen header. Shows the name of the screen,
such as Manual Operation or the name of the
selected Clinical Protocol.
[F] Parameters are indicated with icons. When a
parameter is selected, its name appears here.
[G] Screen body. Shows the parameters of a
selected channel or, when no channels are
selected, the menu buttons.
[H] Channel tab. Used to select a channel and to
display and adjust the output amplitude of
that channel. See paragraph Channel tab
information for details.
A selected sheet gives an overview of the parameters belonging to that channel. A parameter can be
selected by touching it, which causes its colour to be changed into white and the light ring around the
central controller [7] to be illuminated. The parameter can now be adjusted with the central controller
[7]. The parameter can be closed by touching it again or by touching another parameter.
To adjust the output amplitude of a channel, touch the tab of the selected channel again. Its colour
will change into orange. The output amplitude can now be adjusted with the central controller [7].
For some applications, such as interferential therapy and combination therapy, two adjacent channels
can be linked. Linked channels are indicated by a combined tab. The tab halves show the output
amplitude of each channel, while the parameters on the remainder of the sheet apply to both
channels.
When you turn on the unit, you will first enter the Home menu. In the Home menu, none of the
channels are selected. The Home menu provides a structured access to all therapies available within
the unit, with appropriate parameter defaults. Just select a menu item by touching the button to
