1.1. Material Acceptance
Check that there is no damage on the packages during the transportation immediately after the material acceptance. If packages are
damaged, open the packages immediately and check whether products are affected or not, if there is any damage, send your
complaint report to the transporter company and its photocopy to the address of our company.
1.2. Information about Areas of Use
EFS is used in order to check safely whether there is flow or not by detecting movement of liquids inside the pipe. It provides
information about flow with high reliability without spending energy in cooling water or lubricating oil circuits, in the devices
such as flash heater, central heating boiler and heater.
It should be assembled vertically.
It should be used in allowed using medium and application areas!
It is not used in the corrosive mediums, ambient with explosive and flammable material.
Conformity with medium to be measured should be also taken into consideration.
Responsibility is not assumed in case of inappropriate use, modification and injure,
and such cases are not covered by warranty.
Ambient Conditions: Relative Humidity: 5-95 %RH Ambient temperature: 70C (It is not used under -5 C)
1.3. Operating Princible

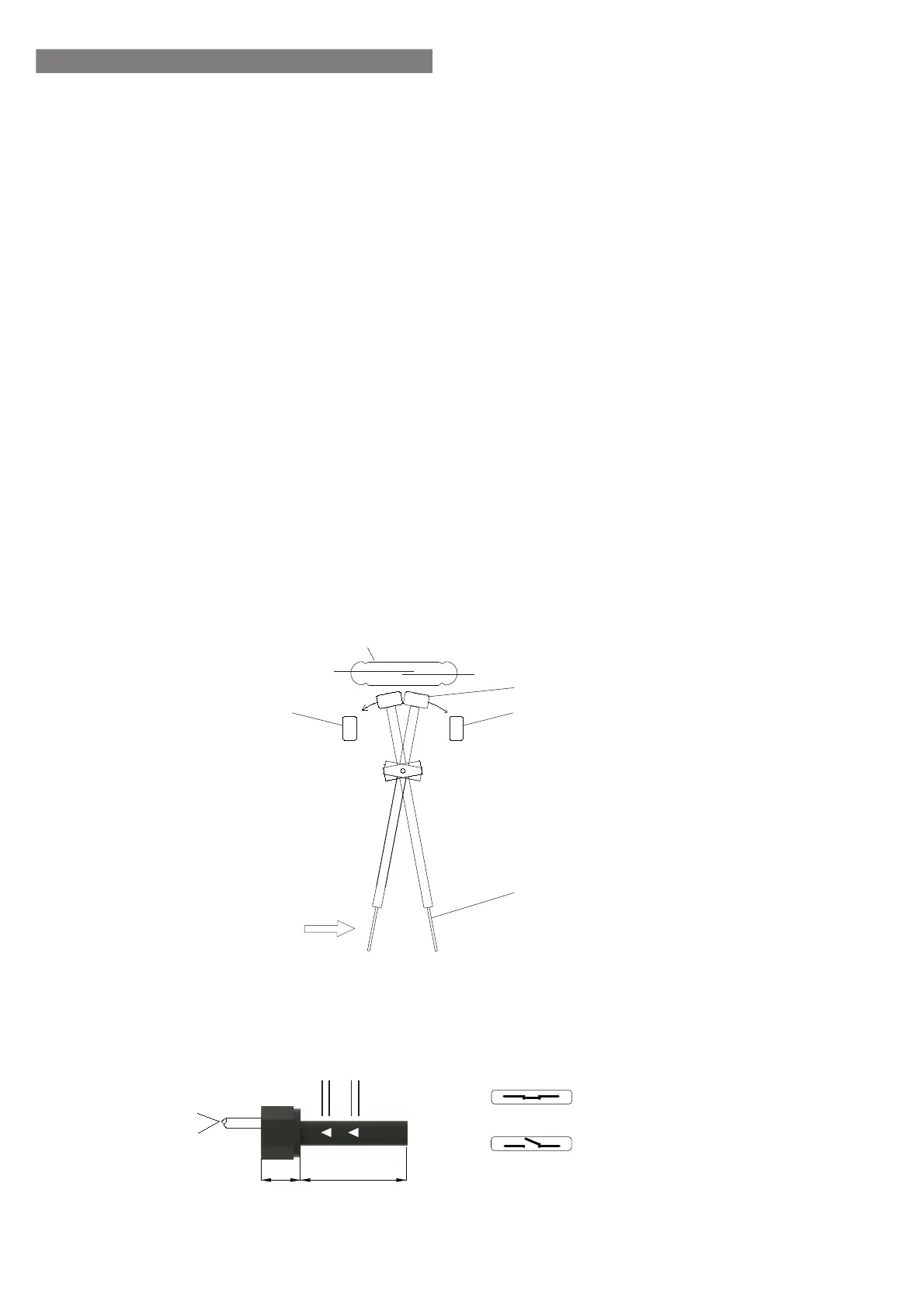

Palette, fastened from one point on the body, moves contact with fluid so that information about flow is obtained.
When flow stops, it is provided that paddle comes to first position by pushing magnet with reverse pole in the paddle,
attached on the body. By this means, longer life and resistance to higher pressure is provided in comparison with
those of spring mechanisms. Reed relay with high precision and long life is used.
Reed Relay
Magnet
Palette
S
N
S
N
N
S
N
S
FLOW
Magnet
Magnet
Relay Position Settings:
15
35
NO
NC
Black
Blue
NCNO
Relay Position Reed Relay
