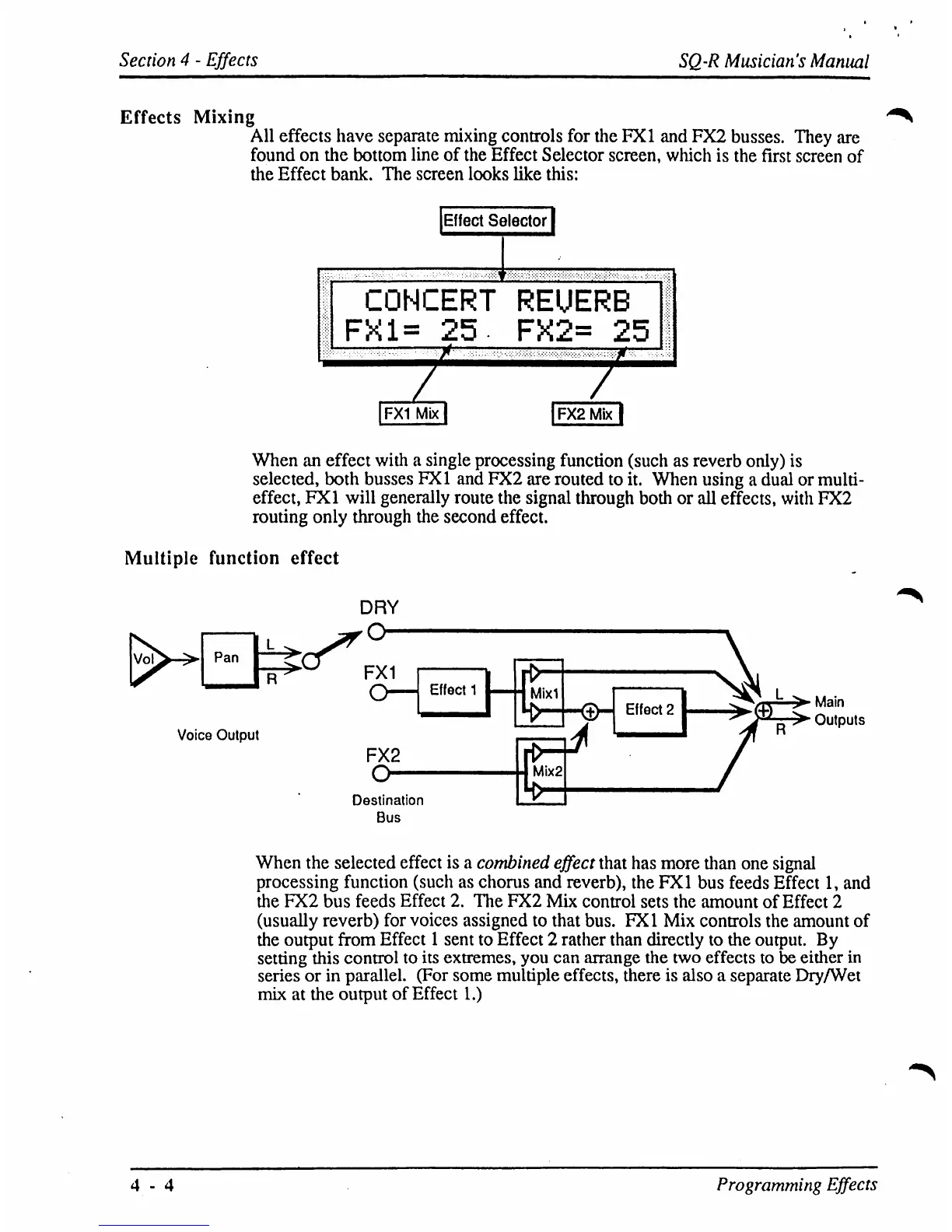

Effects Mixing
All effects have separate mixing controls for the FXl and FX2 busses. They are
found on the bottom line of the Effect Selector screen, which is the first screen of
the Effect bank. The screen looks like this:
Effect Selector]
CONCERT REUERB
FX1= 25 FX2= 25
7
FX1 Mix I
|FX2Mix|
When an effect with a single processing function (such as reverb only) is
selected, both busses FXl and FX2 are routed to it. When using a dual or multi-
effect, FXl will generally route the signal through both or all effects, with FX2
routing only through the second effect.
Multiple function effect
Voice Output
Main
Outputs
Destination
Bus
When the selected effect is a combined effect that has more than one signal
processing function (such as chorus and reverb), the FXl bus feeds Effect 1, and
the FX2 bus feeds Effect 2. The FX2 Mix control sets the amount of Effect 2
(usually reverb) for voices assigned to that bus. FXl Mix controls the amount of
the output from Effect 1 sent to Effect 2 rather than directly to the output. By
setting this control to its extremes, you can arrange the two effects to be either in
series or in parallel. (For some multiple effects, there is also a separate Dry/Wet
mix at the output of Effect 1.)
