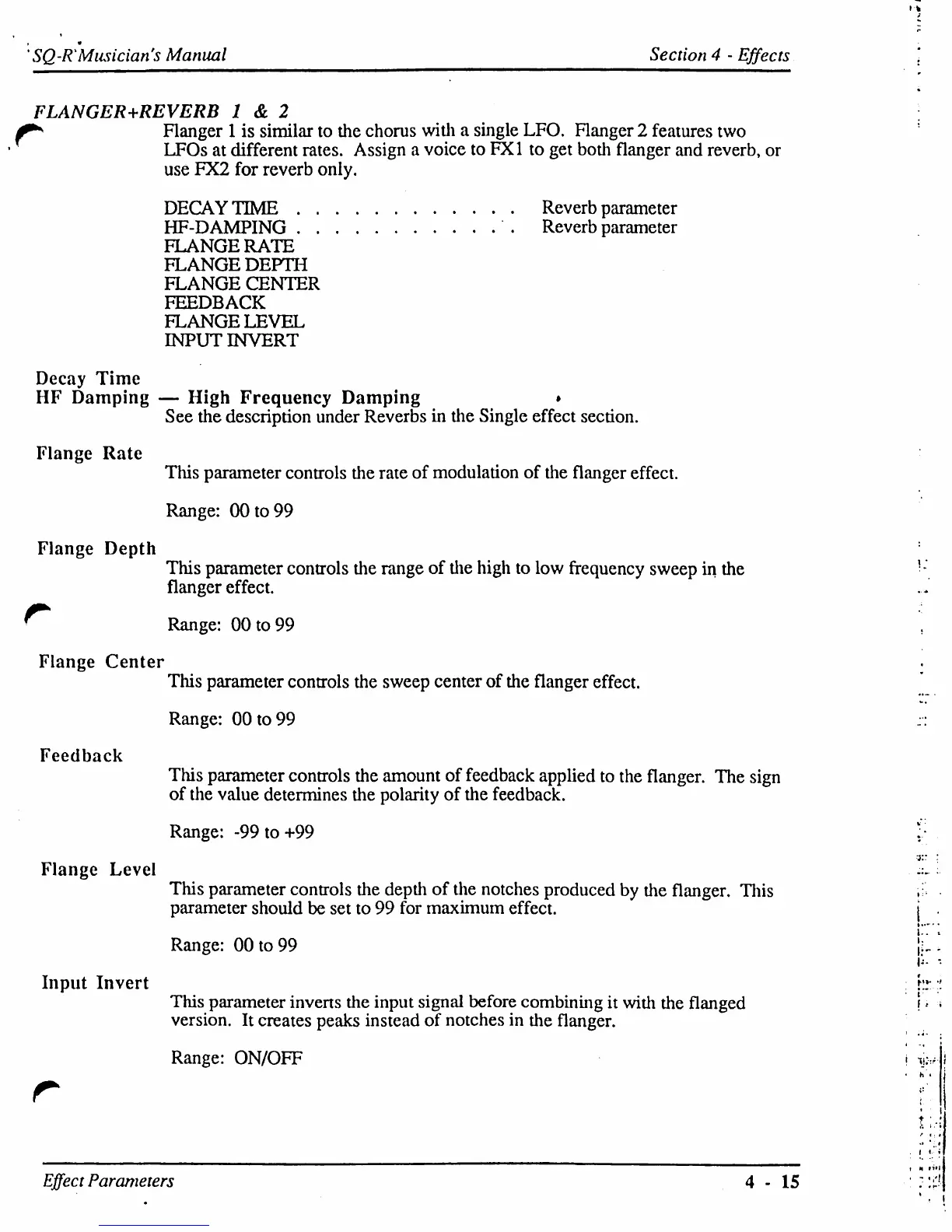

SQ-RMusician's
Manual
Section
4
-
Effects
FLANGER+REVERB
1
&
2
P*
Flanger
1
is
similar
to
the
chorus
with
a
single
LFO.
Ranger
2
features
two
LFOs
at
different
rates.
Assign
a
voice
to
FX1
to
get
both
flanger
and
reverb,
or
use
FX2
for
reverb
only.
DECAYTTME
Reverb
parameter
HF-DAMPING
Reverb
parameter
FLANGE
RATE
FLANGE
DEPTH
FLANGE
CENTER
FEEDBACK
FLANGE
LEVEL
INPUT
INVERT
Decay
Time
HF
Damping
—
High
Frequency
Damping
»
See
the
description
under
Reverbs
in
the
Single
effect
section.
Flange
Rate
This
parameter
controls
the
rate
of
modulation
of
the
flanger
effect.
Range:
00
to
99
Flange
Depth
This
parameter
controls
the
range
of
the
high
to
low
frequency
sweep
in
the
flanger
effect.
Range:
00
to
99
Flange
Center
This
parameter
controls
the
sweep
center
of
the
flanger
effect.
Range:
00
to
99
Feedback
This
parameter
controls
the
amount
of
feedback
applied
to
the
flanger.
The
sign
of
the
value
determines
the
polarity
of
the
feedback.
Range:
-99
to+99
Flange
Level
This
parameter
controls
the
depth
of
the
notches
produced
by
the
flanger.
This
parameter
should
be
set
to
99
for
maximum
effect.
Range:
00
to
99
Input
Invert
This
parameter
invens
the
input
signal
before
combining
it
with
the
flanged
version.
It
creates
peaks
instead
of
notches
in
the
flanger.
Range:
ON/OFF
Effect
Parameters
4-15
