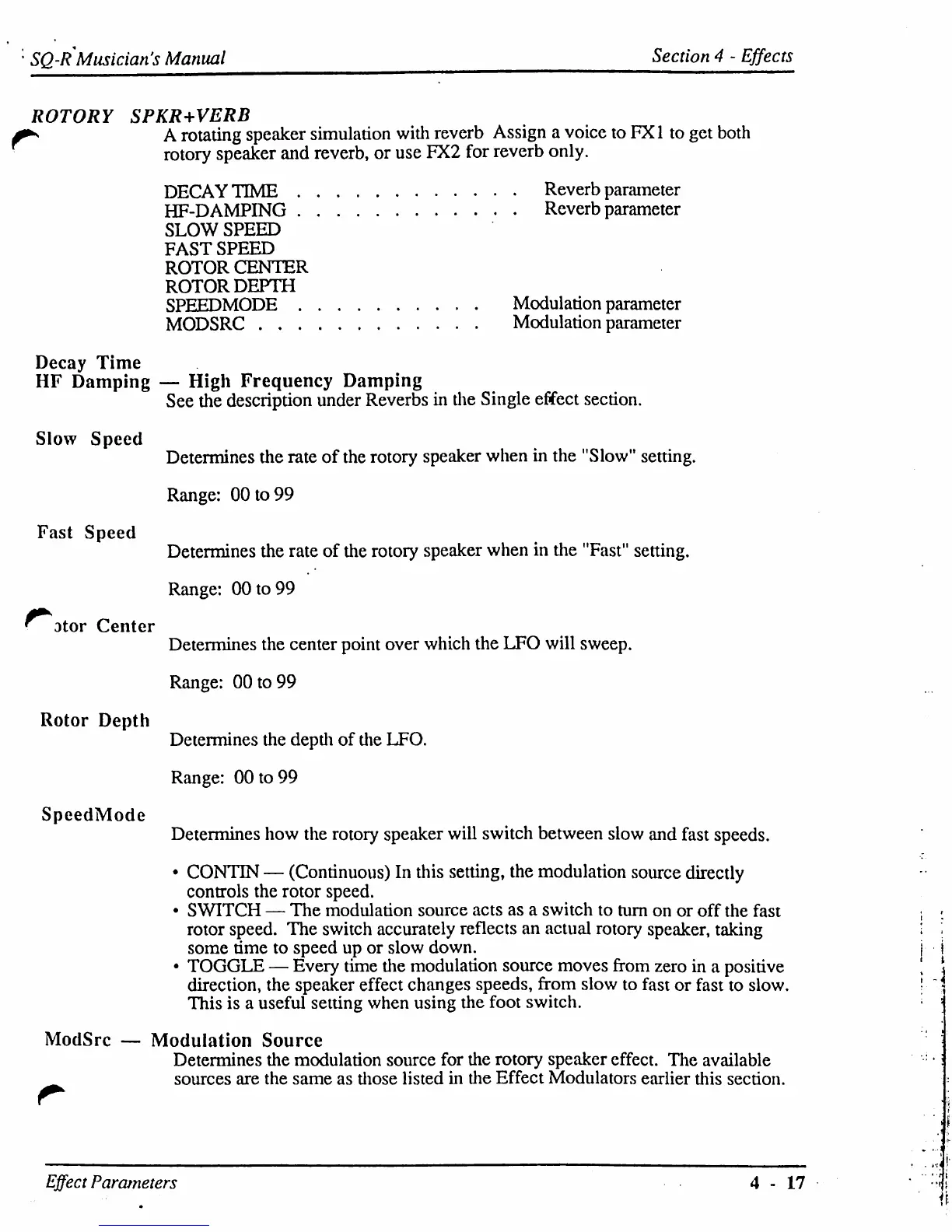

SQ-R Musician's Manual Section 4 - Effects
ROTORY SPKR+VERB
A rotating speaker simulation with reverb Assign a voice to FX1 to get both
rotory speaker and reverb, or use FX2 for reverb only.
DECAY TIME Reverb parameter
HF-DAMPING Reverb parameter
SLOW SPEED
FAST SPEED
ROTOR CENTER
ROTOR DEPTH
SPEEDMODE Modulation parameter
MODSRC Modulation parameter
Decay Time
HF Damping — High Frequency Damping
See the description under Reverbs in the Single effect section.
Slow Speed
Determines the rate of the rotory speaker when in the "Slow" setting.
Range: 00 to 99
Fast Speed
Determines the rate of the rotory speaker when in the "Fast" setting.
Range: 00 to 99
3tor Center
Determines the center point over which the LFO will sweep.
Range: 00 to 99
Rotor Depth
Determines the depth of the LFO.
Range: 00 to 99
SpeedMode
Determines how the rotory speaker will switch between slow and fast speeds.
• CONTIN — (Continuous) In this setting, the modulation source directly
controls the rotor speed.
• SWITCH — The modulation source acts as a switch to turn on or off the fast
rotor speed. The switch accurately reflects an actual rotory speaker, taking
some time to speed up or slow down.
• TOGGLE — Every time the modulation source moves from zero in a positive
direction, the speaker effect changes speeds, from slow to fast or fast to slow.
This is a useful setting when using the foot switch.
ModSrc — Modulation Source
Determines the modulation source for the rotory speaker effect. The available
_ sources are the same as those listed in the Effect Modulators earlier this section.
Effect Parameters 4-17
