Controls & Indicators
HT7X6
1
On / Off button. Press to turn radio on, press and hold to turn off.
2
Multi-function dealer programmable control (ask your dealer for more information).
3
Dealer programmable / function buttons.
4
Push To Talk (PTT) button. Press to speak and release to listen.
5
Dealer programmable button 1 (ask your dealer for more information).
6
Dealer programmable button 2 (ask your dealer for more information).
7
Dealer programmable button 3 (ask your dealer for more information).
8
LED indicator
• RED steady = Transmitting
• RED flashing slowly = Battery needs re-charging
• GREEN steady = Receiving
• GREEN flashing slowly = Selcall received
• YELLOW steady = Non valid signal detected
• YELLOW flashing rapidly = Scanning
3
Dealer programmable
multi-function buttons

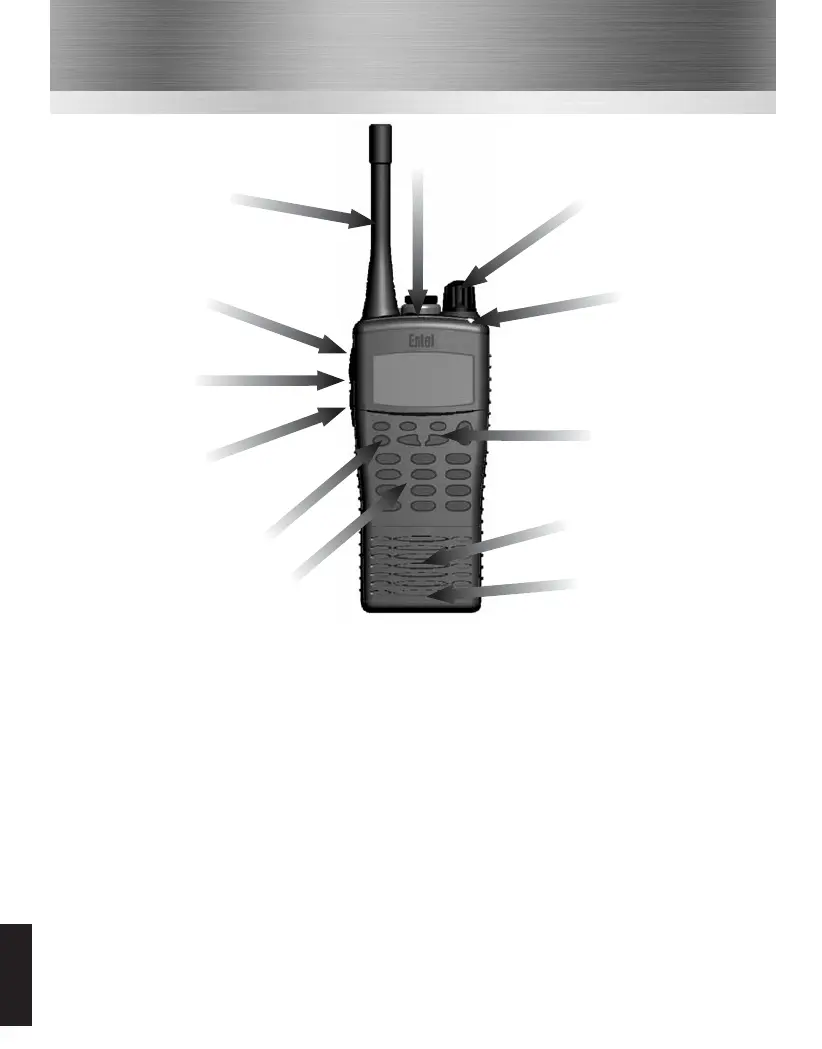

Antenna
5 Dealer
programmable
button 1
4
Push To Talk
(PTT) button
6
Dealer
programmable
button 2
1
On / Off
Speaker
Microphone
7
Dealer
programmable
button 3
3
Multi-function rotary
control
Keypad
8
LED indicator
