28 Installation VH-2402S
100Base-FX/1000Base-SX/LX Fiber Ports
The 100Base-FX and 1000Base-SX/LX fiber ports use SC connectors.
Figure 2-7 shows an
SC fiber connector being inserted into a fiber port on
the VH-2402S.

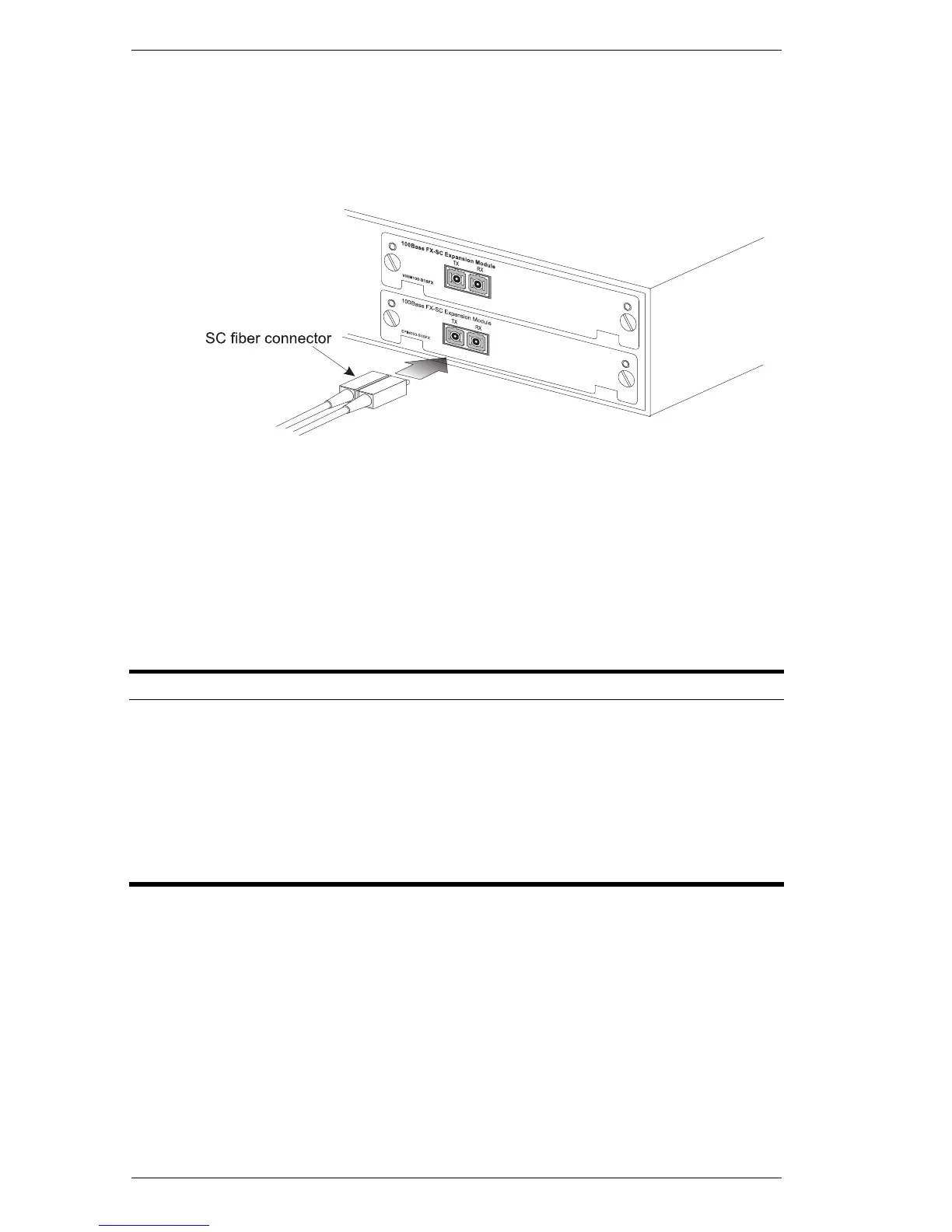

Figure 2-7. Inserting an SC Fiber Connector into a Fiber Port
The fiber uplink modules employed (Table 2-7) support multi-mode 62.5/
125µm fiber and single-mode 10/125µm fiber. The 100Base-FX and
1000Base-SX/LX ports use SC fiber connectors. The fiber connectors are
configured as a receive (RX) / transmit (TX) pair.
Table 2-7. Fiber Uplink Modules
Part Number Functions Description
VHIM100-S2MFX 100Base-FX-MM Dual-port multi-mode (MM) fiber uplink
module using SC fiber connectors.
VHIM100-S1SFX 100Base-FX-SM Single-port single-mode (SM) fiber uplink
module using SC fiber connectors.
VHIM1000-S1SX 1000Base-SX-MM Single-port multi-mode (MM) fiber uplink
module using SC fiber connectors.
VHIM1000-S1LX 1000Base-LX-SM Single-port single-mode (SM) fiber uplink
module using SC fiber connectors.
