Entrematic Ditec NES400EHJ User Manual

107
IP2160ES - 2017-04-12

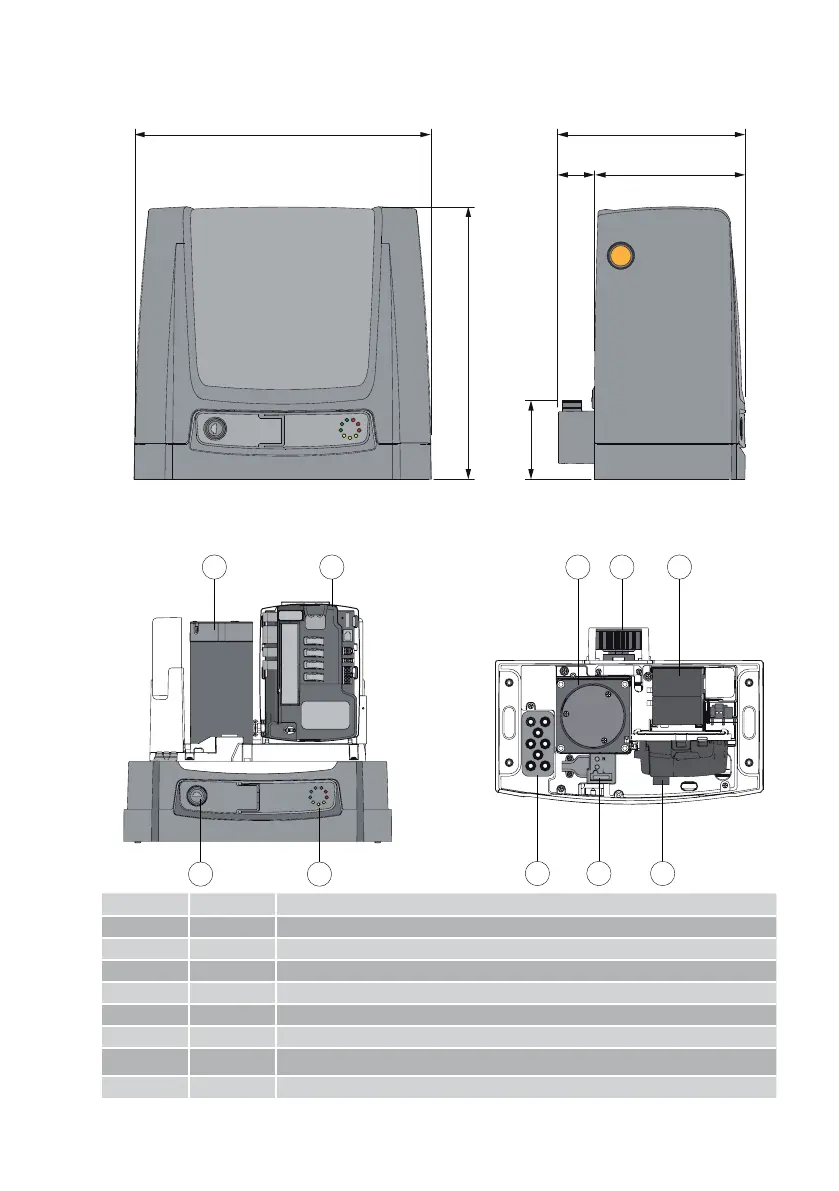

5. Dimensiones
335
307 (NES 300-400)
325 (NES 600-1000)
90
210 (NES 300-400)
220 (NES 600-1000)
170 (NES 300-400)
180 (NES 600-1000)
40
6. Componentes principales
Ref. Código Descripción
8 Motor
9 Cuadro electrónico
10 Circuito de diagnóstico
11 Desbloqueo de llave
12 Piñón
13 Kit de baterías
14 Entrada cables
15 Borne alimentación
8
11 10
9 8 13
91514
12

Entrematic Ditec NES400EHJ Specifications

General

Operating Temperature	-20°C to +55°C
Protection Rating	IP54
Max. Leaf Weight	400 kg
Encoder	Yes
Power Supply	230 V AC
Max Gate Weight	400 kg
Motor Type	DC
Control Options	Radio Remote Control, Key Switch, Push Button
Type	Electromechanical Swing Gate Opener
Max. Leaf Length	4.5m
Protection Class	Class I
Maximum Leaf Width	4.5m
