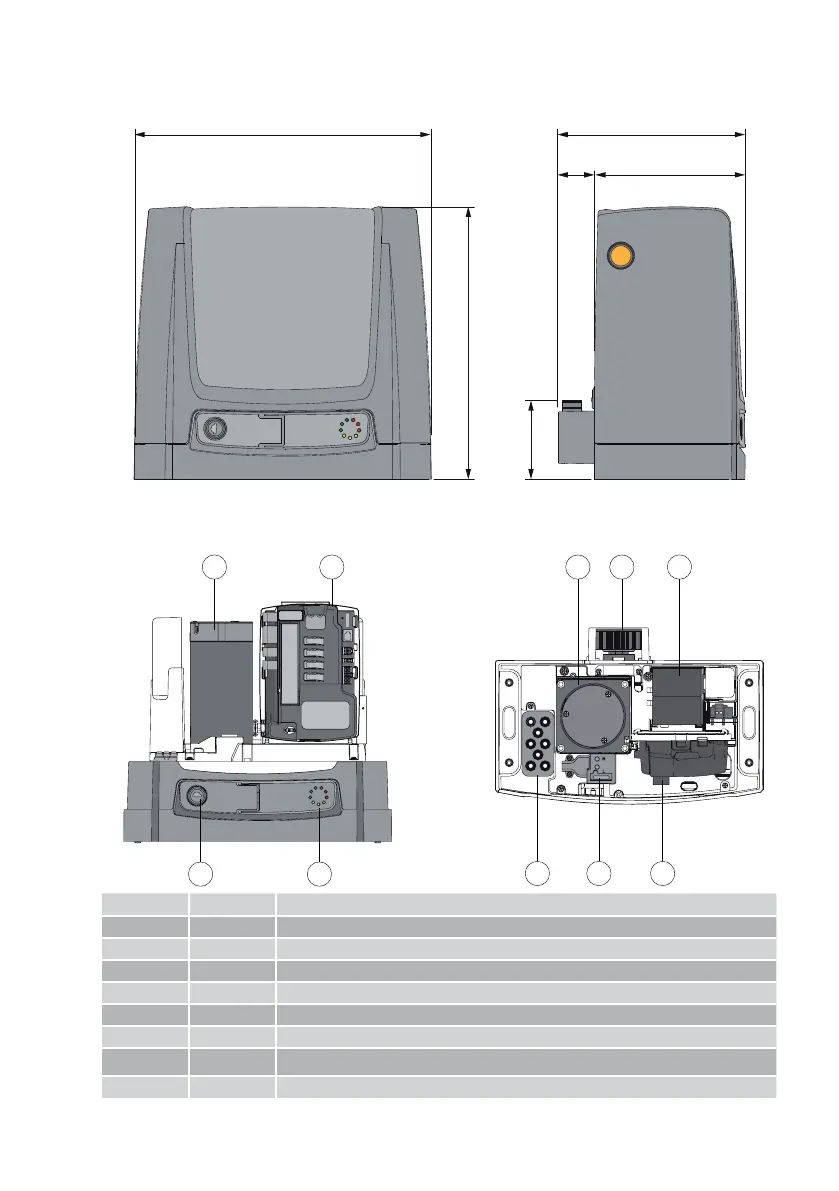

5. Abmessungen
335
307 (NES 300-400)
325 (NES 600-1000)
90
210 (NES 300-400)
220 (NES 600-1000)
170 (NES 300-400)
180 (NES 600-1000)
40
6. Hauptkomponenten
Bez. Code Beschreibung
8 Motor
9 Elektronische Steuerung
10 Diagnostikschaltung
11 Schlüsselentriegelung
12 Ritzel
13 Akku-Satz
14 Kabeleingang
15 Stromversorgungsklemme
8
11 10
9 8 13
91514
12
