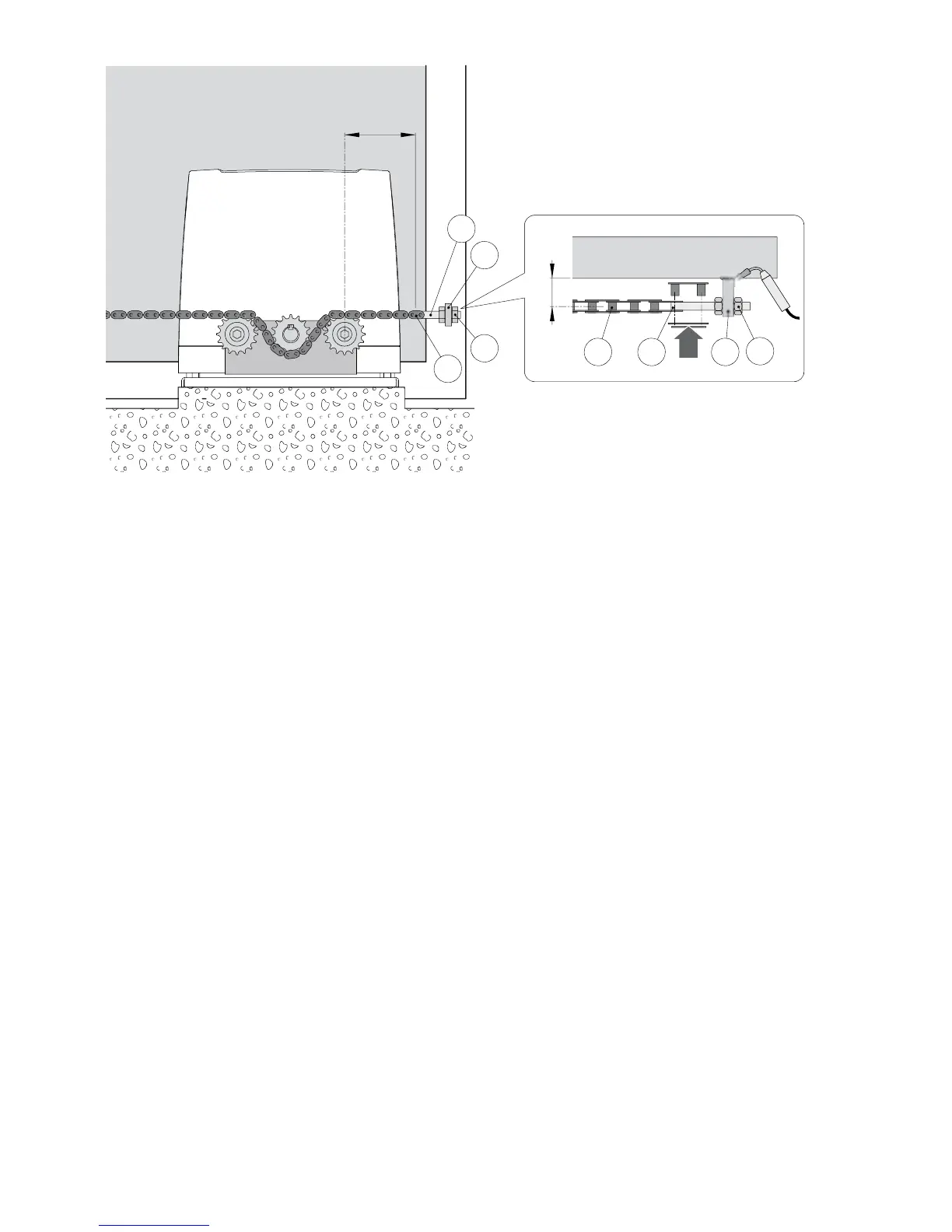

- Move the wing into the open position by hand and fix brackets [D] on the wing as illustrated in
the diagram.
- Connect chain [E], which was previously assembled on the gearmotor, to tie rod [F] and fix it
to bracket [D].
- Fix bracket [D] on the opposite side of the gate. Connect chain [E] to tie rod [F] and fix it to
bracket [D] (cut the excess chain).
N.B.: Make sure that the distance between the pinion centre and tie rod [F] is correct when the
gate is fully open and closed.
- Secure the chain with nuts [G].
- Tighten the chain [E] with the tie rods [F].
- Slightly lubricate the chain [E] and the pinions after assembly.
min 50
40
E F D
G
E
F
G
D
