IP2160EN - 2013-10-31

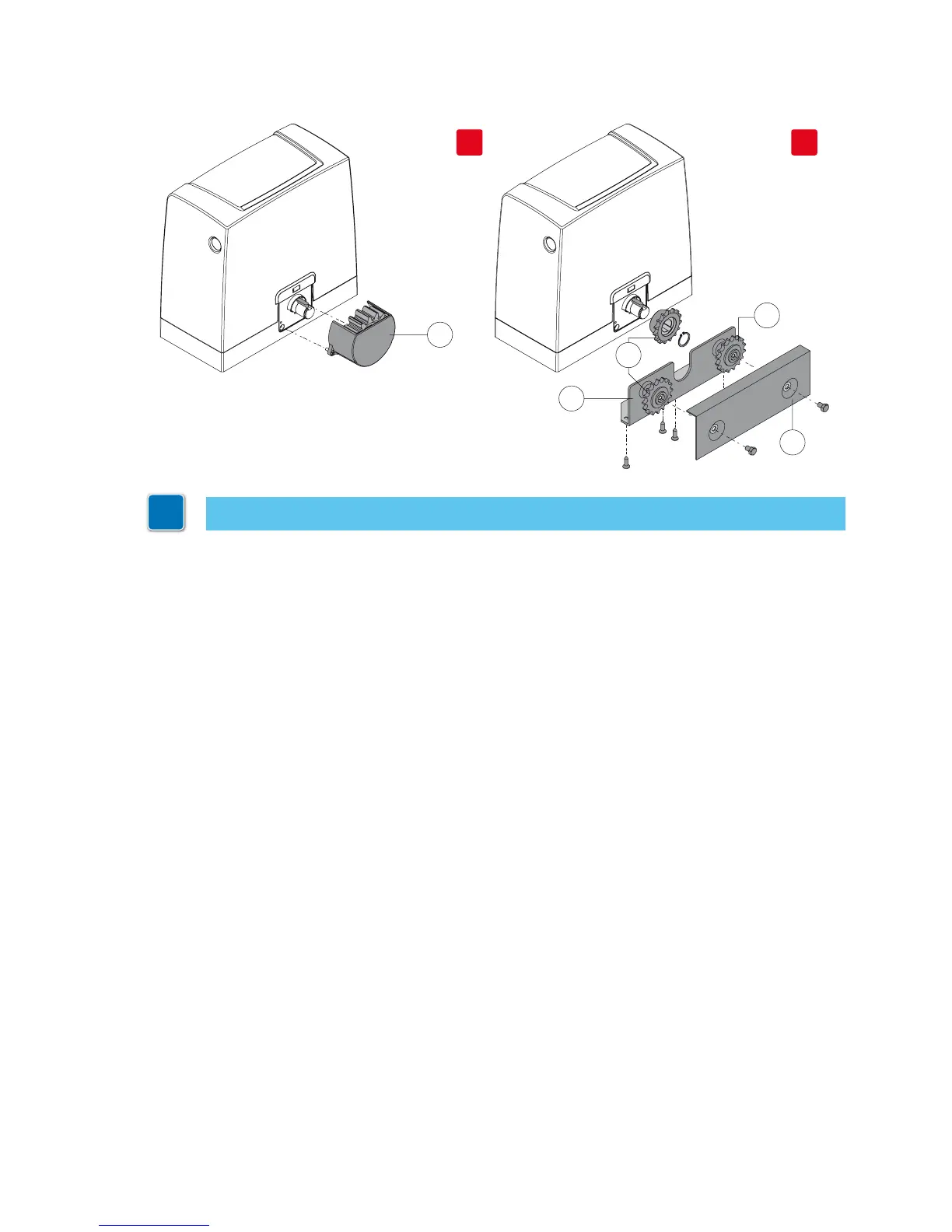

- Release the gearmotor (see OPERATING INSTRUCTIONS).

- [1] Remove pinion [12].

- [2] Fix pinion supporting plate [A] to the gearmotor.

- Insert pinions [B] as illustrated in the diagram.

- [3] Pass the chain between the pinions by hand.

- Fix cover plate [C].

N.B.: Install the chain drive kit before securing the gearmotor to the base plate.
