Hardware Features
▪ Electrically insulated ABS plastic housing
▪ 2* 5-Pin Female XLR for Bi-directioal DMX Ports
▪ 1* RJ45 EtherCon Connection
▪ 1* 12–24V DC Jack
▪ 2* LED Indicators: Status and Link/Activity
▪ IEEE 802.32af PoE (active PoE)
DMX Connectors

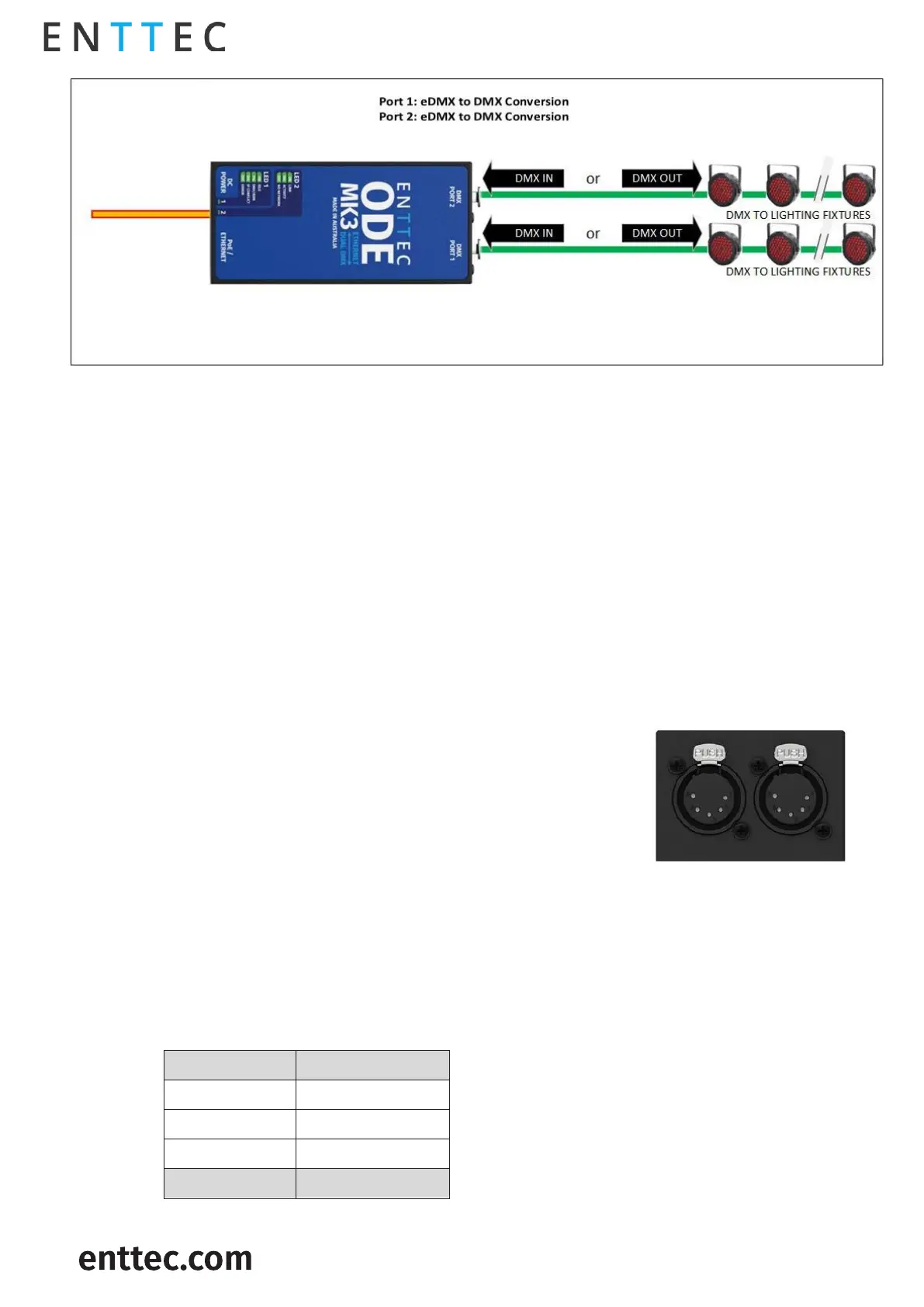

The ODE MK3 features two 5-Pin Female XLR bi-directional DMX ports, which can be used either for DMX in
or DMX out, depending on the settings set within the Web Interface.
5pin DMX OUT/ DMX IN:
 Pin 1: 0V (GND)
 Pin 2: Data -
 Pin 3: Data +
 Pin 4: NC
 Pin 5: NC
Any suitable 3 to 5pin DMX adaptor can be used to connect to 3pin DMX cables or fixtures. Please note the
pinout, before connecting to any non-standard DMX connector.
LED Status Indicator
ODE MK3 comes with two LED indicators located between the DC Jack input and the RJ45 EtherCon Connector.
▪ LED 1: This is a Status indicator which blinks to indicate the following:
Frequency
Status
On
IDLE
1Hz
DMX / RDM
5 Hz
IP CONFLICT
Off
ERROR
▪ LED 2: This LED is a Link or Activity indicator which blinks to indicate the following:
