Shenzhen Envicool Technology Co., Ltd.

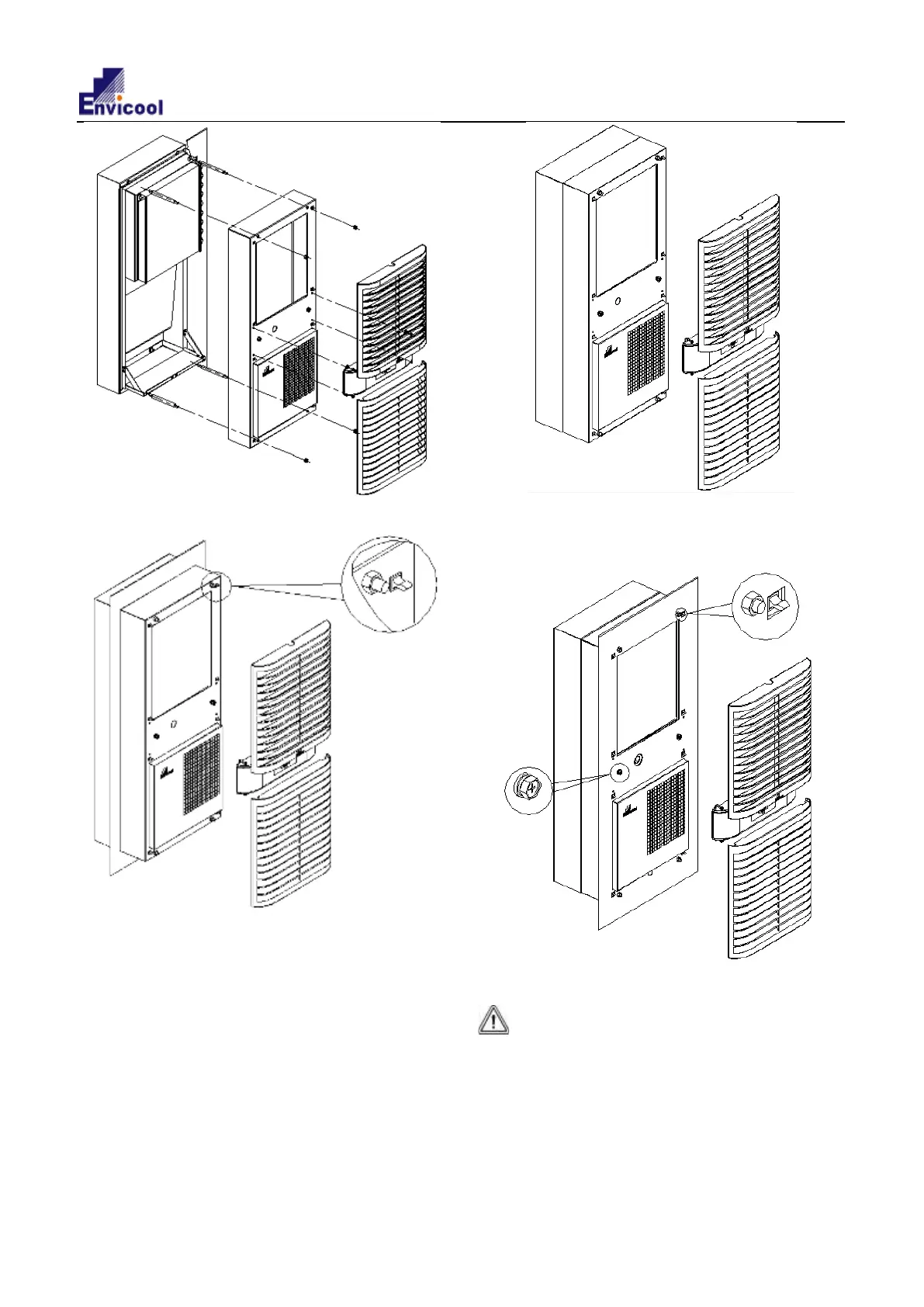

3) After fixing on the cabinet, install the plastic
panel as shown below:
Full Internal Mounting:
1) Remove the plastic panel as shown below:
2) Install the air conditioner on the cabinet and fix
it with nuts and screws, and fix the plastic
panel to the buckle, as shown in the picture
below:
3.2 Electrical installation
CAUTION!
As the cabinet air conditioner is connected to the
power supply via the circuit protection device, the
appropriate circuit protection device and the power
cable should be chosen according to the air
conditioning nameplate and technical parameters.
EIA series air conditioner user manual
7
