General Information

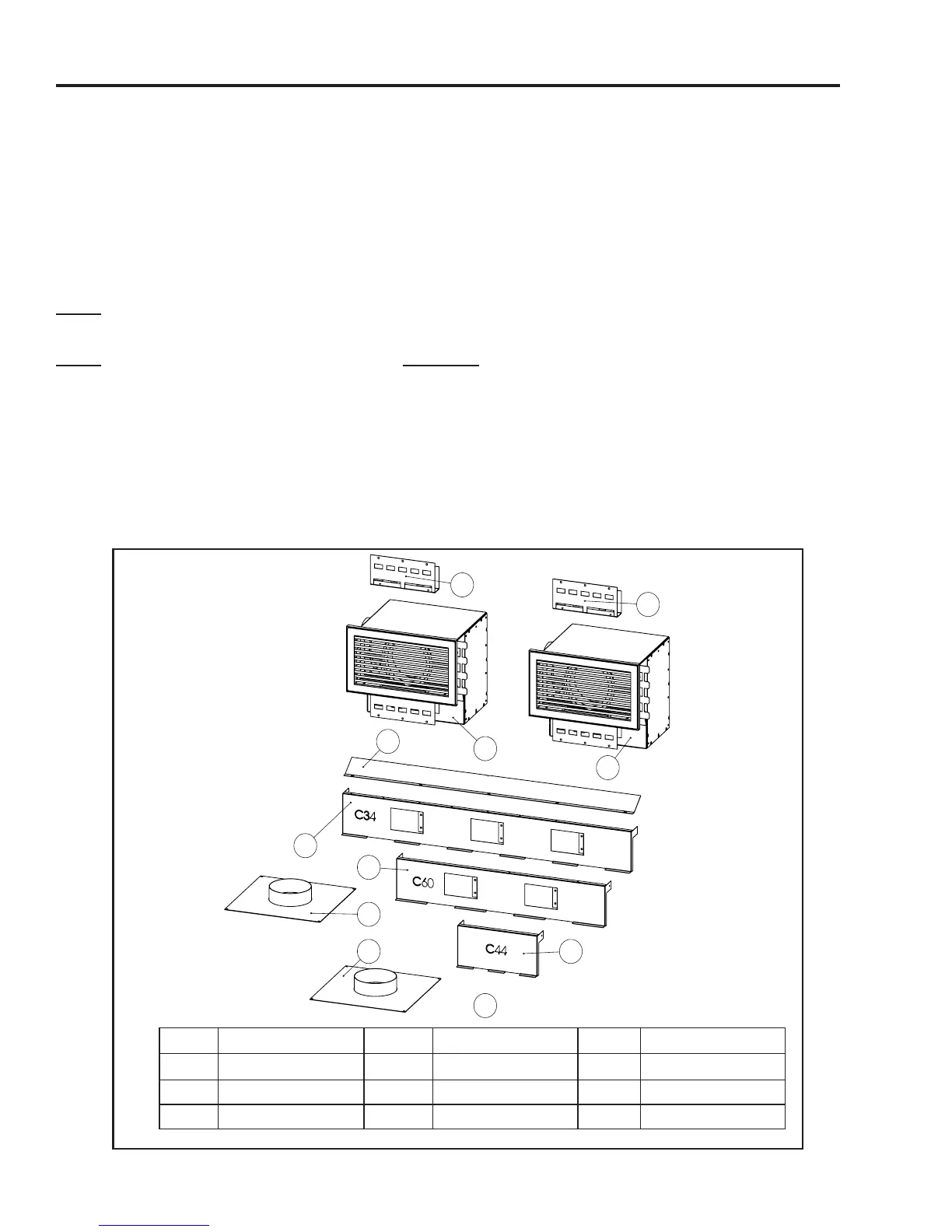

Figure 1. Cool Surface System Side Vent - Parts Diagram
The purpose of this optional Cool Surface System, or CSS, is to naturally re-direct the convective heat
from the replace. Using this kit lowers the temperatures of the front wall for installations where a
TV, artwork etc. is desired directly above the replace. It can also be used if you are intending to use
combustible framing and combustible facing materials depending on conguration.
The Side Vented CSS is a modular system that can be installed in either a Horizontal or Vertical
orientation.
Note: You can install the Cool Surface System without the Combustible Facing Kit. Doing so requires a
non combustible facing material (see Owner’s Manual for replace installation instructions).
Note: Dual Convection Fan Kit (50-3212) may not be used in conjunction with CSS.
Prior to installation of the CSS make sure the desired location is large enough to comply with the
combustible clearances of both the CSS and the replace (see Owner’s Manual for replace installation
instructions). Refer to the
Framing and ClearanCes section of this manual for the required installation
dimensions of the CSS in tis different congurations.
Please refer to Figure 1 to ensure that all CSS parts are accounted for and have not been damaged.
Item Description Item Description Item Description
1 Top Standoff 4 C34 Main Wall 7 C44 Extension
2 Main Body 5 C60 Extension 8 Bag of Screws
3 Trimable Deector 6 Vent Collars
