Enviro C34 User Manual

9
Installation
tv installation Considerations:
If you are planning to mount a TV above your replace some considerations must be made to ensure
it is protected from the heat.
During testing temperatures did not exceed 121°F (49°C) midway up the front wall (Figure 9 &
10). There is no guarantee that these temperatures will not harm the longevity of your TV. Make sure
to consult your TV manufacturer’s specications to nd the maximum allowable operating temperature.
Since every home and installation is unique, temperatures should be veried at the time of install
if possible. If desired, front wall temperatures can be lowered to 104°F (40°C) with the use of a
mantle (Figure 10). Refer to Owner’s Manual for full mantle clearances. A TV should not be installed if
temperatures exceed the manufacturers maximum allowable temperature.
Installation and service must be performed by a qualied installer,
service agency or the gas supplier.
29°F 41”
21°F 35”
21°F 29”
24°F 23”
17°F 17”
20°F 11”
30°F 5”
0”
Above
Ambient
Height from
Opening
4” Mantle
29” from oor.
Combustible
Facing Kit
1/2” Combustible Base
Material (Drywall)
Up to 1” Combustible
Material.
NOTE: You cannot install a Surround
with the mantle at its lowest position.
Install mantle at 31” for a Surround
Min.
2-1/2”
(6.4cm)
Min. 2” (5cm)
Gap
Combustible
Facing Kit
1/2” Combustible Base
Material (Drywall)
Up to 1” Combustible
Material
29°F 41”
29°F 35”
29°F 29”
27°F 23”
35°F 17”
38°F 11”
49°F 5”
0”
Above
Ambient
Height from
Opening
1-1/2” Air Gap behind the TV.
(Typically provided by a wall
mount)

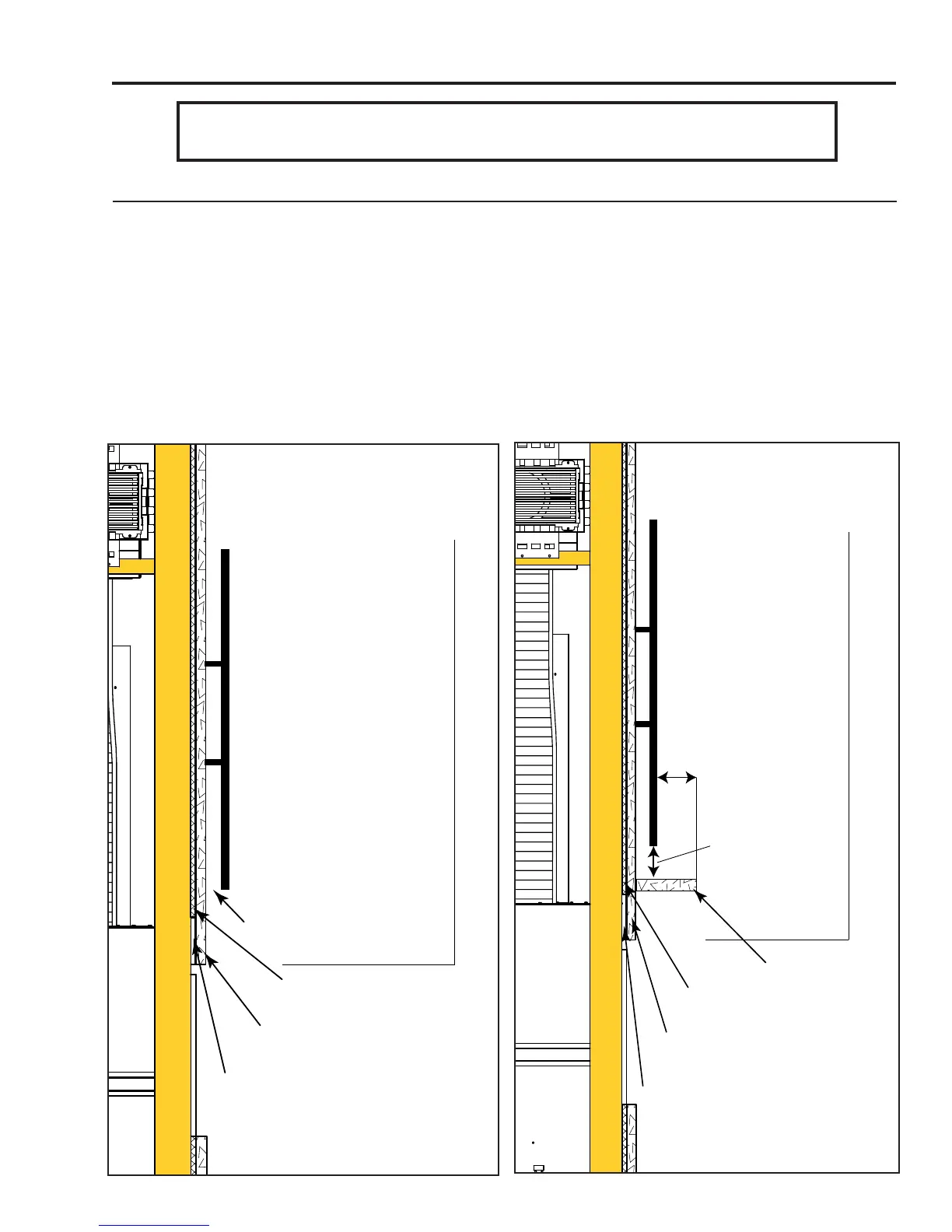

Figure 9. CSS - TV Clearances Figure 10. CSS - TV Clearances
TV must be 5” min from
discharge if no mantle
