Enviro C34 - Initial Installation; Revised Mantel Requirements

7
Initial Installation
QUALIFIED INSTALLERS ONLY
revised mantel requirements:
Refer to Figure 7, 8 for a combustible mantel installation, measurement is from bottom of the unit to the
bottom of the mantel.
If you are planning on installing a TV above the replace refer to page 9 to see the options available.
Note: Minimum height of mantle if you intend on using a surround is 31”
1 2 3 4 5 6 7 8 9 10 11 12 13 14
MANTLE HEIGHT
MANTLE DEPTH
Minimum Mantle Clearances
8” MANTLE
4”MANTLE
35”
34”
33”
32”
31”
30”
29”
27”
28”
12” MANTLE

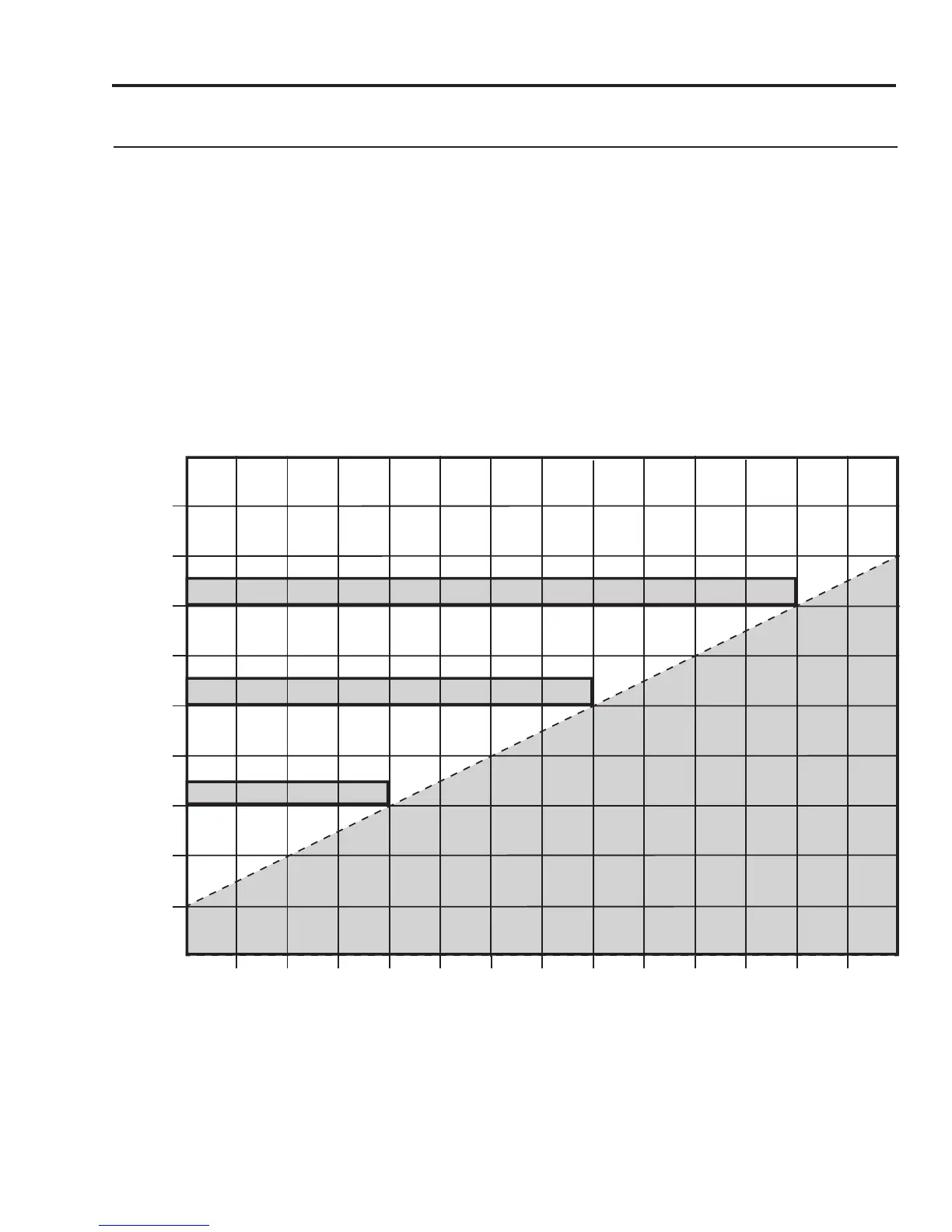

Figure 7: Minimum Mantel Height
