Non-combustible
floor protection.
Existing floor
(combustible)
6"
(15 cm)
3" (7.5 cm)
Pedestal
Wall
thimble
Fresh air
intake
Rodent
mesh cap
45°
elbow
12"
(30.5 cm)
Surround Panel
Combustible
materials and
structure
Installation
INSTALLATION FOR A BUILT-IN HEATER:
This unit includes a 3” (75 mm) pedestal
and surrounding faceplates. The part of the
unit behind the faceplate can be enclosed
with combustible material. It has 1” (25
mm) standoffs to establish clearances to
combustibles to the back, top and sides.
Refer to “CLEARANCES TO COMBUSTIBLES - BUILT-IN
HEATER“ and Figure 12 and 13 for the size
and placement of the alcove to be built for
the unit.
For the venting refer to “HORIZONTAL EXHAUST
THROUGH WALL INSTALLATION - FREESTANDING“.
INSTALLATION OF CONTROL PANEL INTO SURROUND PANEL - FPI AND BIH:
Figure 33: Control
Panel Cover.
Figure 34: Control
Panel Back.

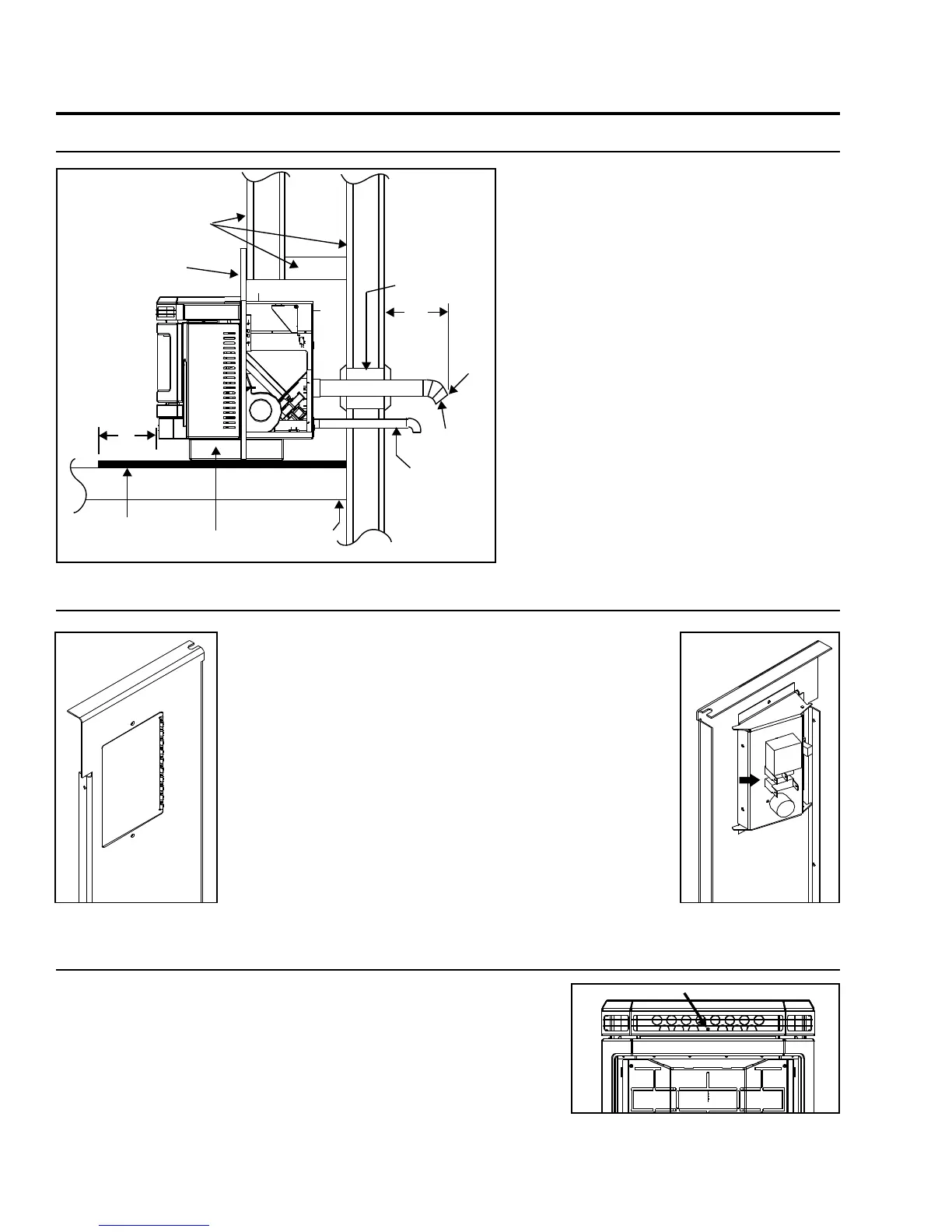

Figure 32: Built-in heater installation.
26
When installing the control panel into the surround panel,
the surround does not need to be assembled. The control
board will be found in behind the firebox.
Place the control panel on the backside of the right
surround panel so the hinge is on the outside and the top
and bottom holes on the control panel line up with those on
the surround. Attach using two (2) T-20 screws through the
front of the surround into the circuit board control panel.
After the surround has been assembled and is ready to be
installed on the unit, plug the wiring harness into the control
panel (see Figure 32).
THE TUBE SCRAPER ROD:
Figure 35: Tube scrapper rod
placement.
Put the stainless steel rod through the hole in the heat exchanger
located behind the top louvers. Thread the rod into the scraper plate,
which is visible from inside the firebox by removing the top baffle.
