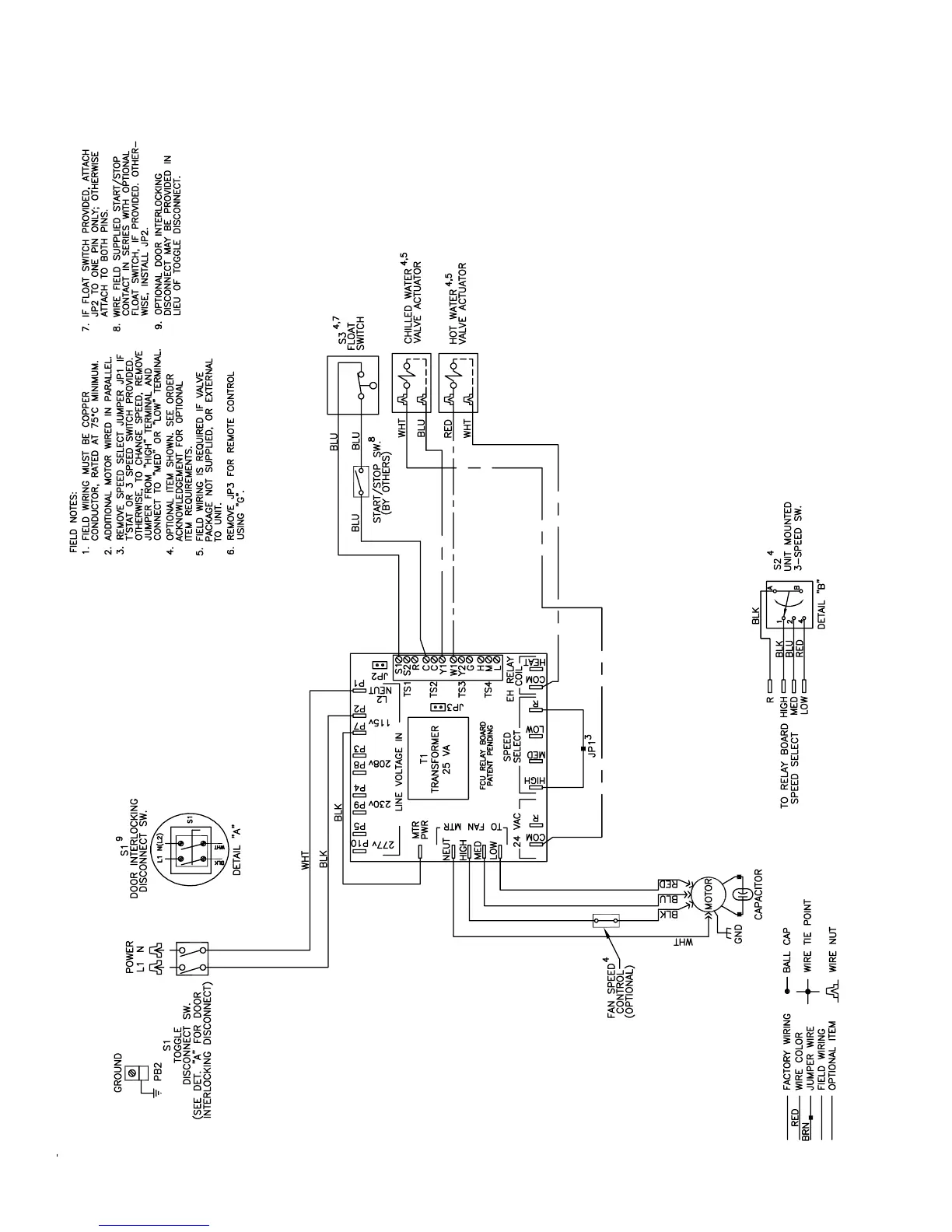

"Example Wiring Diagram - Typical 24 VAC Control Drawing (Refer to unit control enclosure for actual order-specic drawing)"
84-10-0205-REV05
EXAMPLE WIRING DIAGRAMS (Continued)
