Envirovent energiSava 325 - Wiring Diagrams; Supply; Status Indicator; Switching & Controls

9 energiSava
®
325
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING
THIS UNIT, CALL US ON: 0345 27 27 810
Wiring Diagrams
Mains Supply Switching and Controls
Status Indicator
Mains cable must be separate from the
communication cables.
See Important Information.

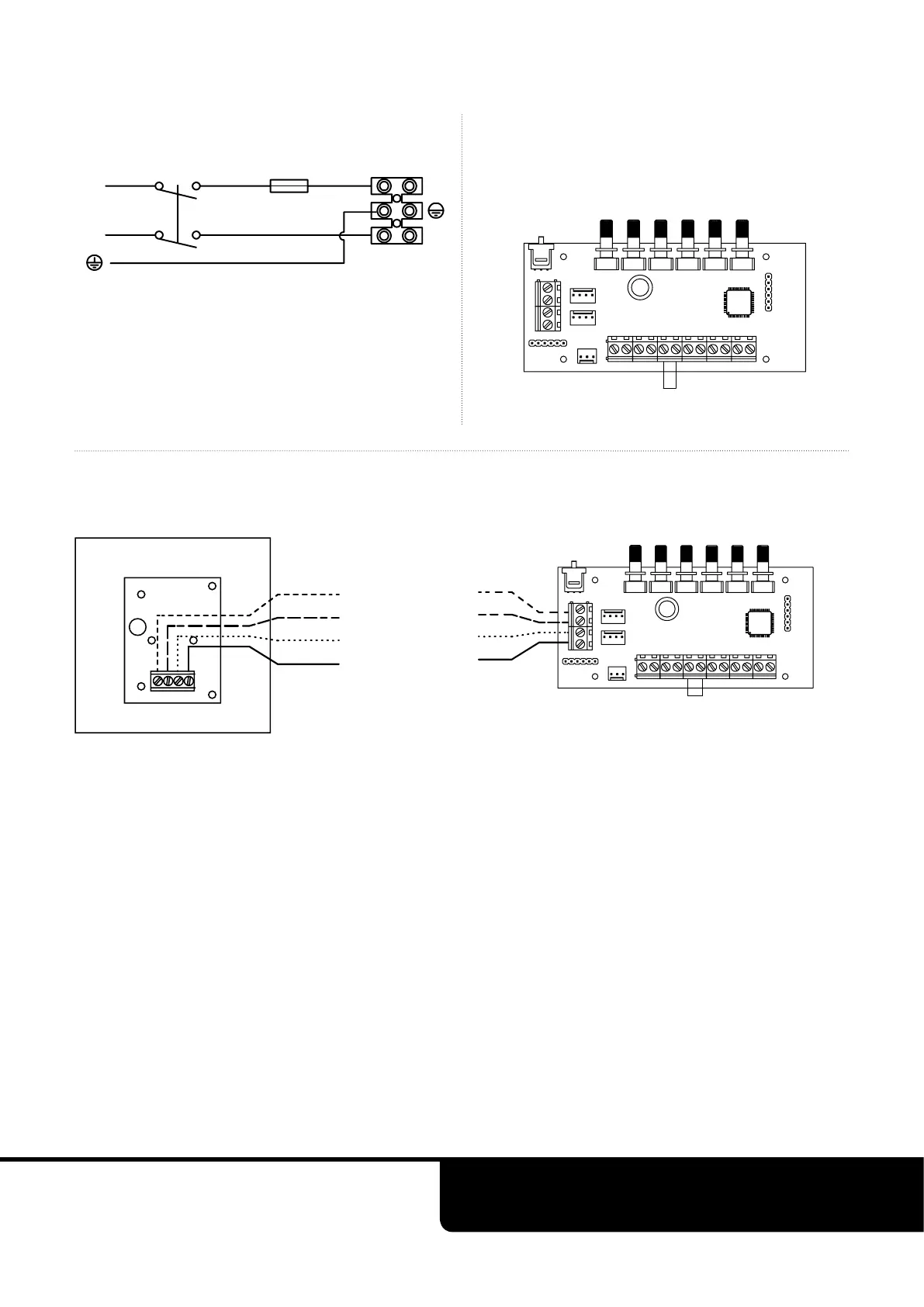

Supply wiring diagram 230V~
Connection at unit
L
N
12V
A
B
0V
12V
A
B
0V
L
N
FuseDouble Pole Isolator
Summer kick up link wire must be
removed to enable summer kick up
Summer kick up link wire
Connection at indicator
