06 Installation Instructions

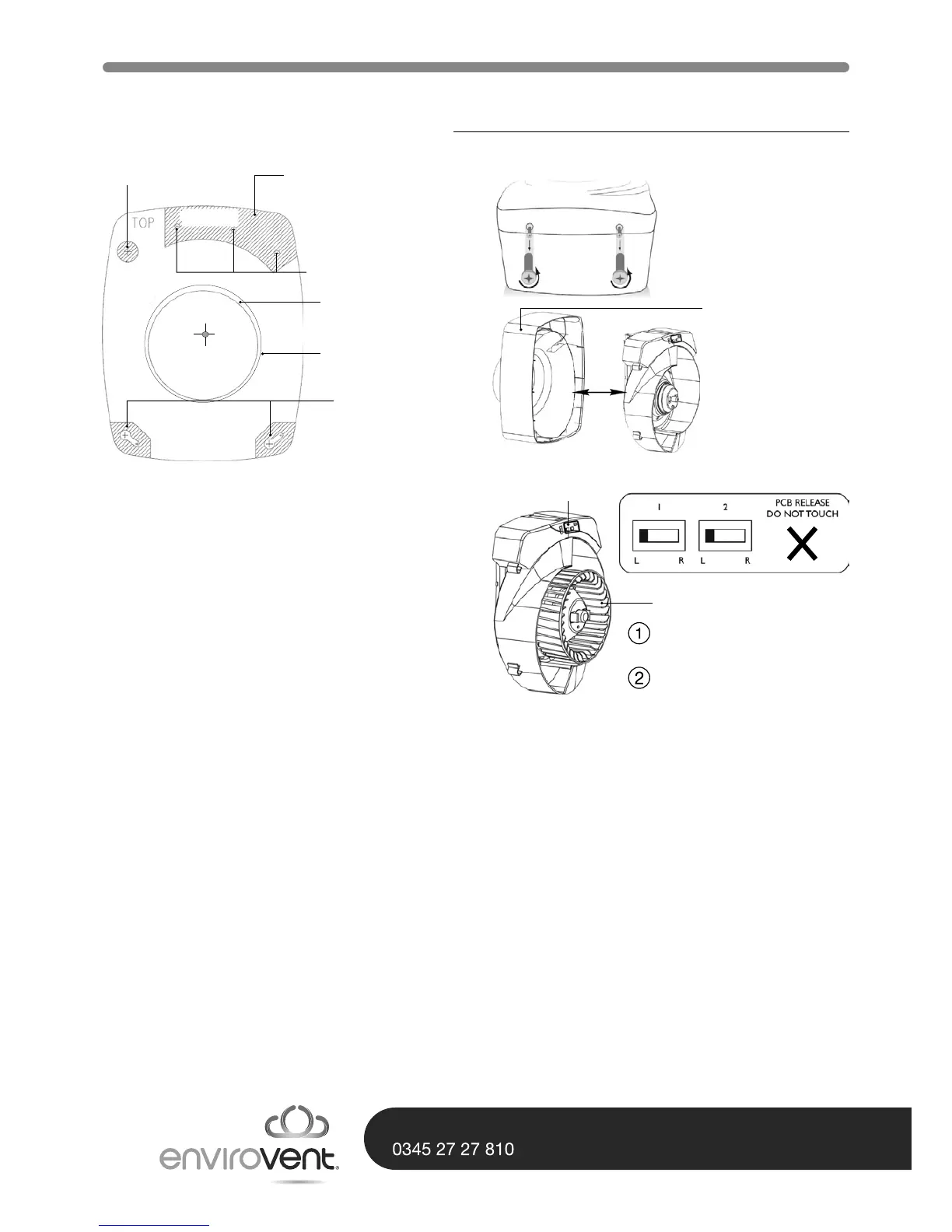

1. Loosen the two plastic screws and
remove front cover. (Fig 1.)
2. Carefully withdraw central cartridge
from the carcass. Disconnect green
male/female connector. (Fig 2.)
3. This fan must be installed by a competent
person. Complete electrical wiring of fan
and tighten cable gland.
4. Oer up the central cartridge, join green
male/female connector (230V) and
carefully insert the central cartridge into
back carcass.
5. Insert four silver screws to x central
cartridge in place. N.B. Take care not to
trap cables.
6. Please note that a suitable isolation
switch or fuse spur rated at 3amp
should be used in the xed wiring.
7. This fan is factory set to kitchen duty
with humidity tracking function. If two
speed or bathroom option is required,
commission the fan by setting the slider
switch as appropriate. Fix supplied
gasket over selector switches (Fig.3).
8. Check that the impeller is tted correctly
- ensure ‘click’ action engaged cleanly.
9. Fix front cover (Fig.1). Ensure that the
pullcord nestles into groove. N.B. Fan
will not operate unless front cover is in
position.
10. This fan is factory set to kitchen duty
with humidity tracking function (Fig.3).
Cable gland
Alternative xings
100mm ducting
(Ø106)
125mm ducting
(Ø131)
Wall xings
NOT TO SCALE -
FOR GENERAL INFORMATION ONLY
NO CABLES
Avoid cable entry into
shaded areas
Fig.3
Fig.2
Fig.1
Back carcass
Central carcass
Gasket
Impeller
230V
Slider
Cable gland
LEFT - HUMIDITY TRACKING
RIGHT - TWO SPEED
LEFT - KITCHEN
RIGHT - BATHROOM
