B

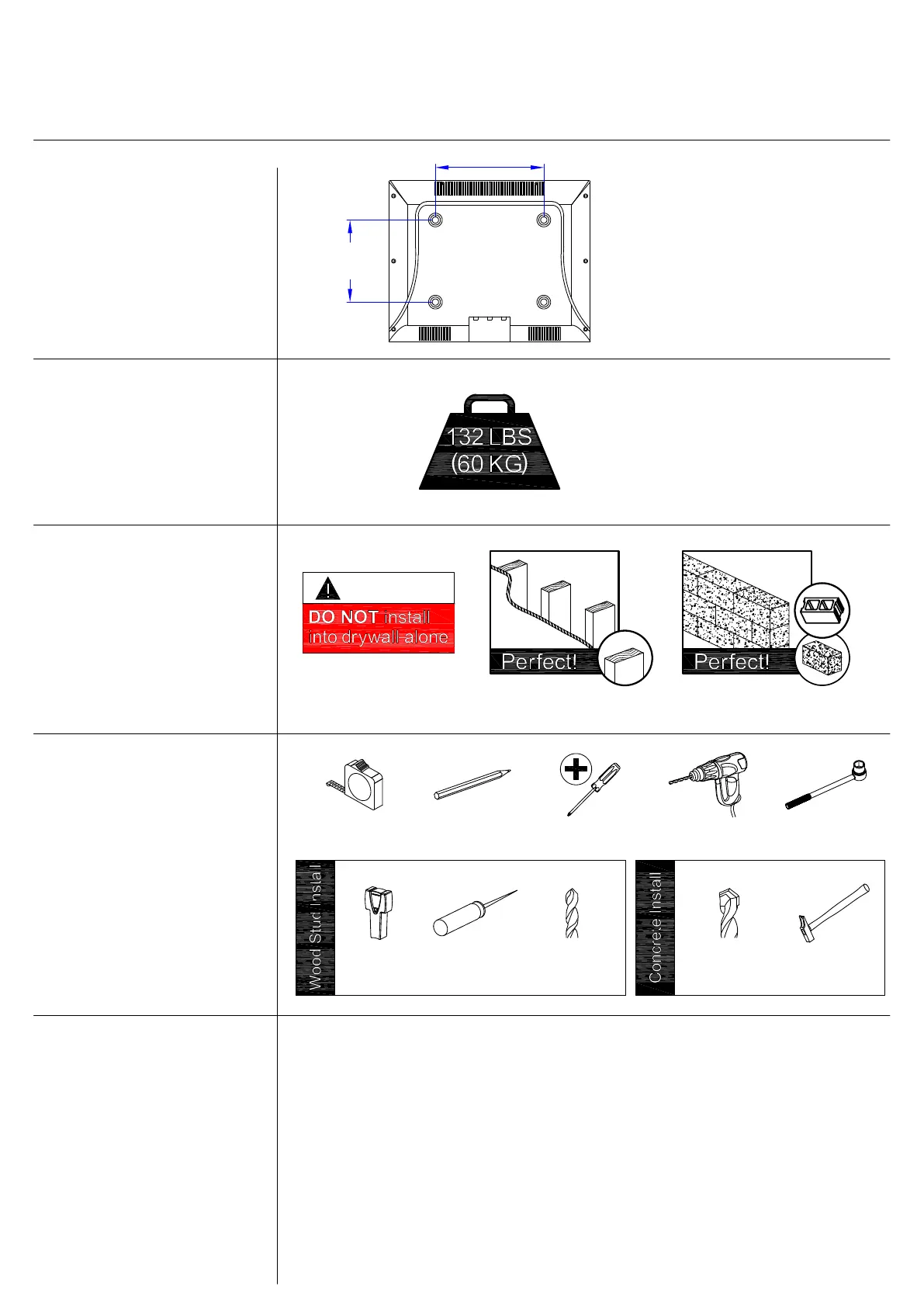

efore getting started, let’s make sure this mount is perfect for you!
1
Is
your TV VESA
equal to/greater than
200x100mm/8x4" and
equal to/less than
600x400mm/24x16"?
2
Does your TV
(including accessories)
weigh less than
132 LBS (60 KG)?
4
Installation Tools
(Not Included)
Yes --
- Perfect!
No --- This mount is NOT compatible.
MAX:600mm/24"
MAX:
400mm/16"
Yes --
- Perfect!
No --- This mount is NOT compatible.
C
AUTION:
Drywall with
wood studs?
Band
Tape
2
M
2
M
5
Safety Caution
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, please contact customer service.
● This product is designed for use in wood stud, solid concrete, and concrete block walls
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Eono.
● Incorrect installation may result in product damage or body injury. Eono shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
Pencil
Screwdrive
r
Electrodrill
Socket Wrench
1/2"(13mm)
Stud Fin
der Awl
7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit
Hammer
3
What is your wall
made of?
S
olid concrete or
concrete block?
To Next Page
