ep ESL122 - Key Switch; Display Instrument

REV. 12/2020
5
B
1.Key switch
Connect and interrupt control current.
When the key rotates to gear “OFF”, the
control current of the truck will be interrupted;
When the key rotates to gear “ON”, the
control current of the truck will be connected.
2.2.2 Key switch
2.2.3 Display instrument

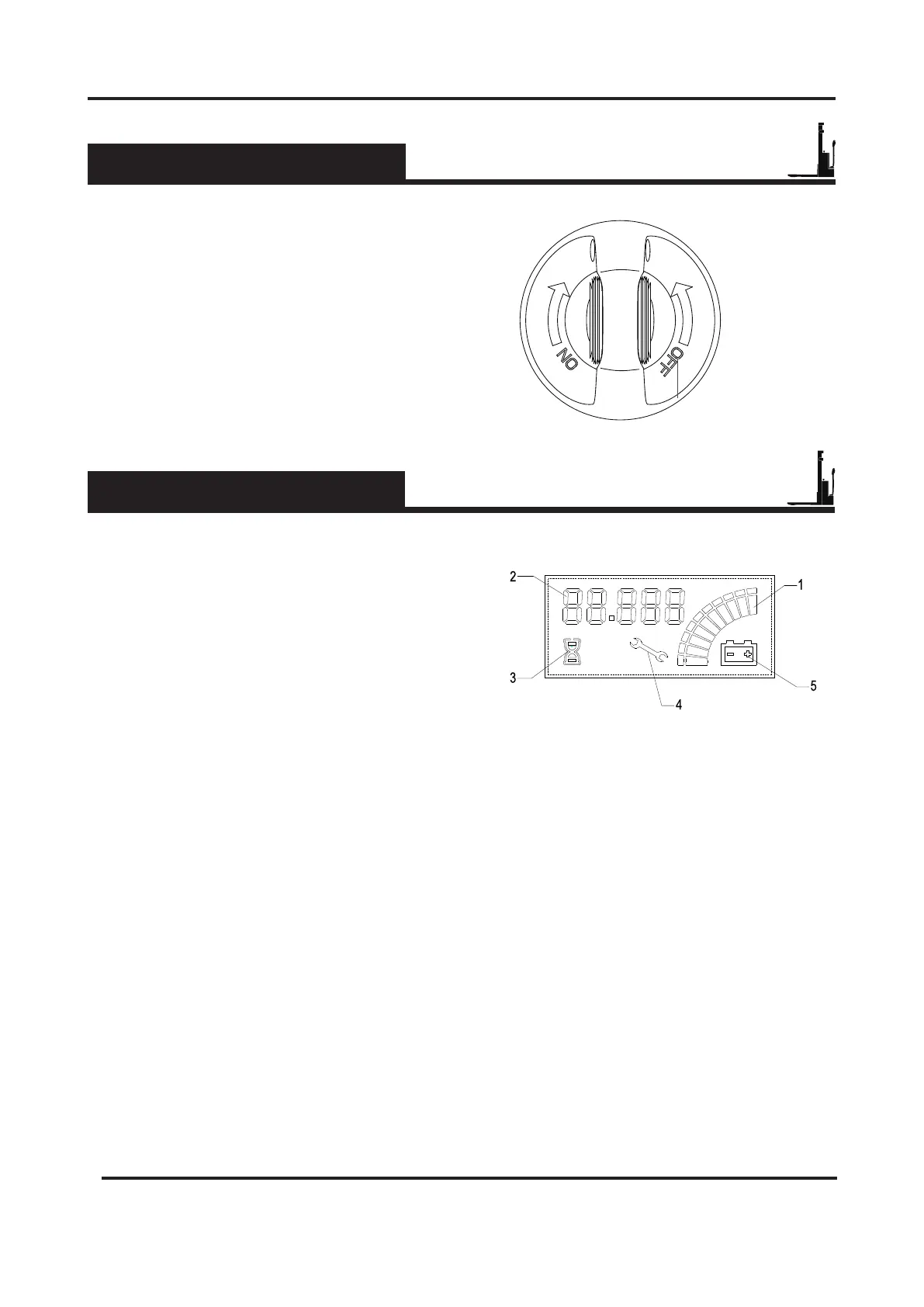

Fig0000-00070OM
• LED (1) displays the remaining charge;
• LED (2) displays the total running time
normally. If fault, display the fault code;
• LED (3) ashing, and the vehicle starts
timing;
• LED (4) is on, indicate vehicle failure;
• LED (5) is on under normal, it will ashing
when the power is less than 20
％
;
