Epelsa ECO MULTIFUNCTION - 9 Connections

GBS-ECO-MF-V02
35
9. CONNECTIONS
RS-232 CONNECTOR
1 - 4 -
2 – Rx+ 5 – GND
3 – Tx+

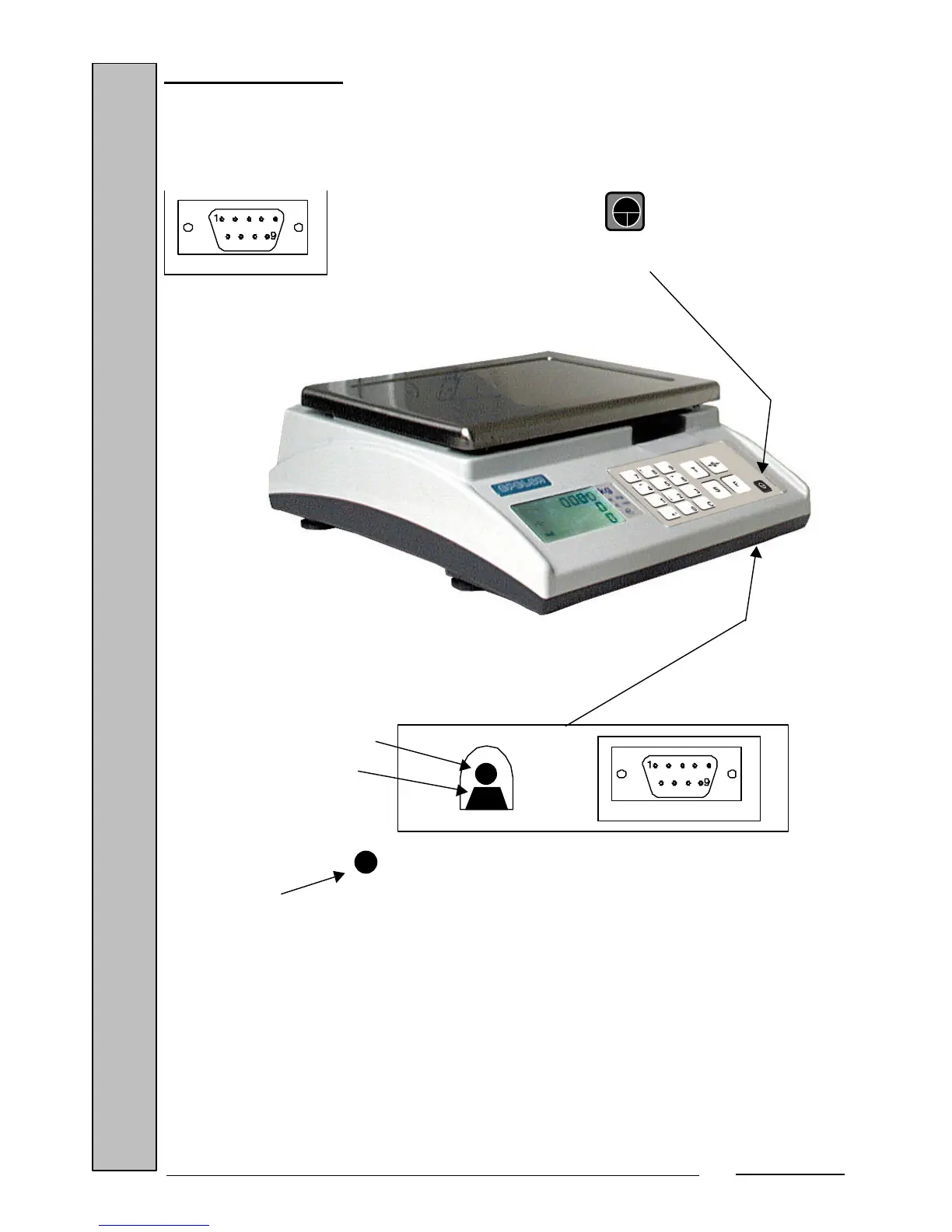

Scale ON/OFF switch
External supply RS-232 connector
connector
Calibration button access hole
The scale can be powered from an external power supply through its external
connector (using the car battery, for example) as it operates with a voltage of
12Vdc.
Positive
Ground
