Safety and operating instructions
© Construction Tools PC AB | 9800 1273 01 | 2020-04-03
Original Instructions
15
2.

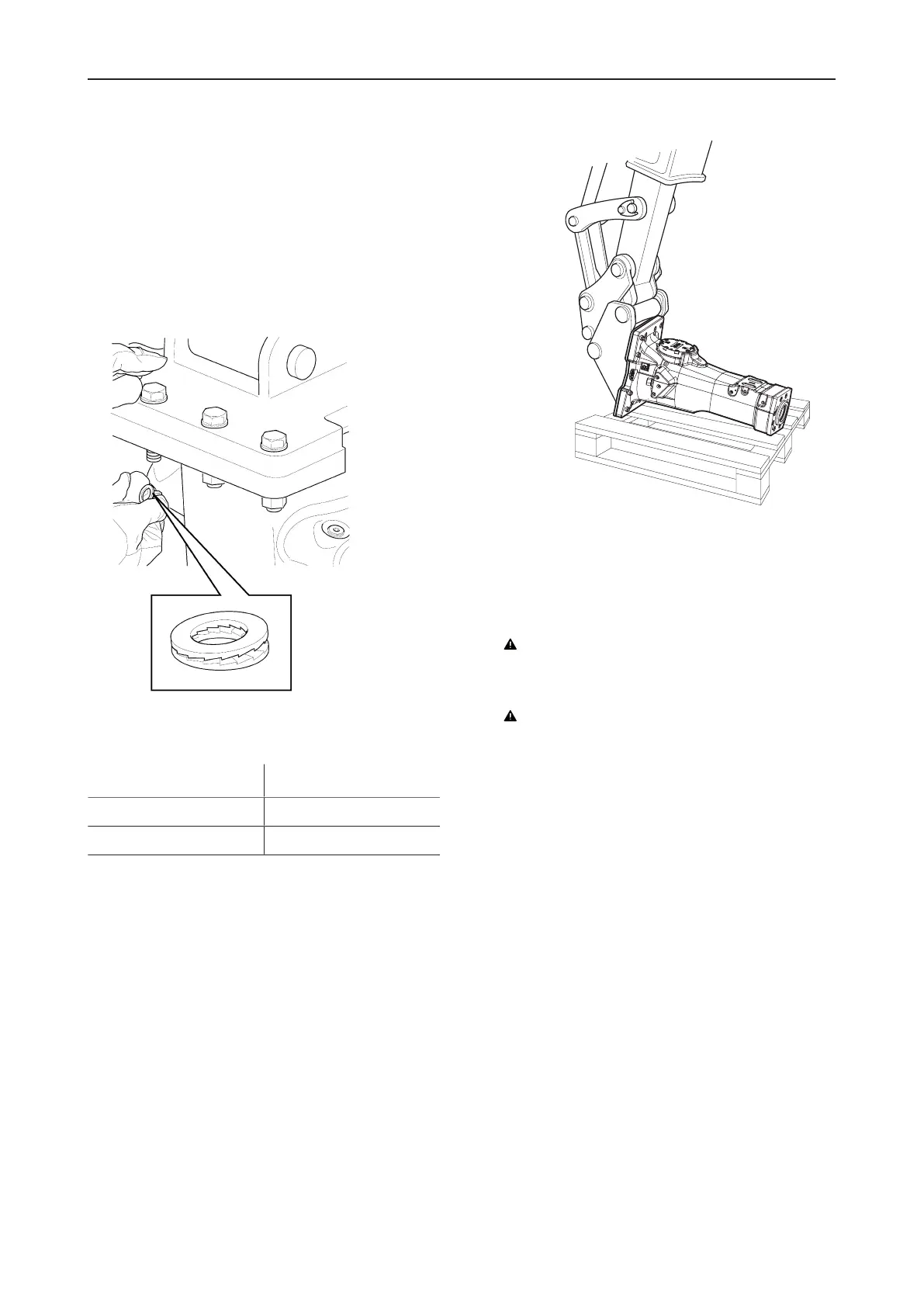

Place NYLOK BLUE PATCH™ (Known as TUF-LOK
®
in Europe) screws through all bore holes and fit nuts
to the screws.
If NYLOK BLUE PATCH™ (Known as TUF-LOK
®
in
Europe) screws are not available we recommend us-
ing NORD-LOCK
®
washers under bolts and nuts.
(NYLOK BLUE PATCH is a trademark of Nylok Cor-
poration. TUF-LOK is a registered trademark of Nylok
Corporation in Europe. NORD-LOCK is a registered
trademark of Nord-Lock International AB.)
3.
Tighten the nuts, see the tightening torque in the ta-
ble below.
Adapter plate Tightening torque
SB 702 400 Nm (295 ft lbs)
SB 1102 1385 Nm (1022 ft lbs)
Connecting the breaker to the carrier
1.
Position the breaker in a safe way during installation.
The pressure inlet on the hydraulic breaker is on the
left side when you are facing the accumulator. If the
pressure hose is on the other side of the boom you
can cross the hoses or turn the hydraulic breaker.
2.
Carefully lower the stick of the boom into the adapter.
WARNING Moving parts can crush and cut
u Never check bores or passages with hands or fin-
gers.
WARNING Injury by impacts
A sudden movement of the carrier may cause your
assistant to be hit and injured by the boom or the hy-
draulic breaker.
u Only move the boom very slowly and in a con-
trolled manner while an assistant is within the risk
area.
u Always keep sight of your assistant.
u Agree with the assistant on clear hand signals for
use during the mounting procedure.
An assistant must direct the movement of the boom
until the bores in the boom are flush with those in the
adapter.
3.
Insert the pin and lock.
4.
Lift up the hydraulic breaker using the boom.
5.
Extend the bucket cylinder until the bore in the toggle
is flush with those in the adapter. Insert toggle pin
and lock.
