Epiroc SB Series User Manual

Safety and operating instructions
© Construction Tools PC AB | 9800 1273 01 | 2020-04-03
Original Instructions
11
3 Overview
To reduce the risk of serious injury or death to your-
self or others, read the Safety instructions section
found on the previous pages of this manual before
operating the machine.
3.1 Design and function
SB is a range of rig mounted hydraulic breakers de-
signed for all kinds of demolition works. No other use is
permitted.
SB has a solid body which means that the breaker body
is made in one piece. The accumulator is integrated with
the body.
The hydraulic breaker is operated from the driver's cab
of the carrier using the carrier's hydraulic system. The
breaker frequency is controlled by the oil flow from the
carrier.
Recommended working tools are listed in the spare
parts list.

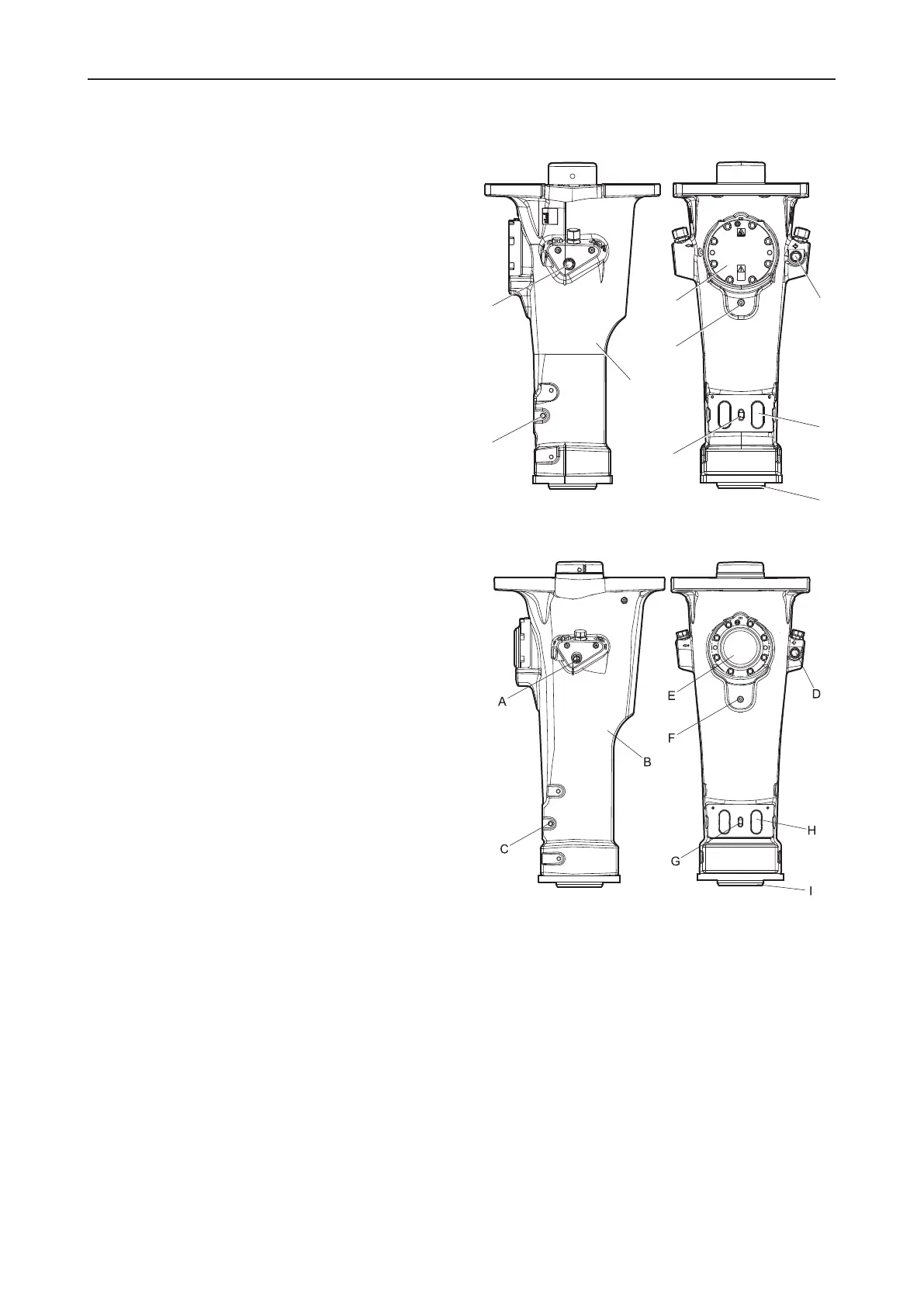

3.2 Main parts
A
C
B
E
F
D
G
H
I
SB 702
SB 1102
A. Restrictor
B. Hammer body
C. Lock pin
D. Pressure relief valve
E. Accumulator
F. Oil drainage plug
G. Lock buffer
H. Tool retainer
I. Bushing

Epiroc SB Series Specifications

General

Brand	Epiroc
Weight	Varies by model
Impact Rate	Varies by model
Impact Energy	Varies by model
Hose Diameter	Varies by model
Sound Pressure Level	Varies by model
Vibration Level	Varies by model
Series	SB Series
