Cutout Dimensions

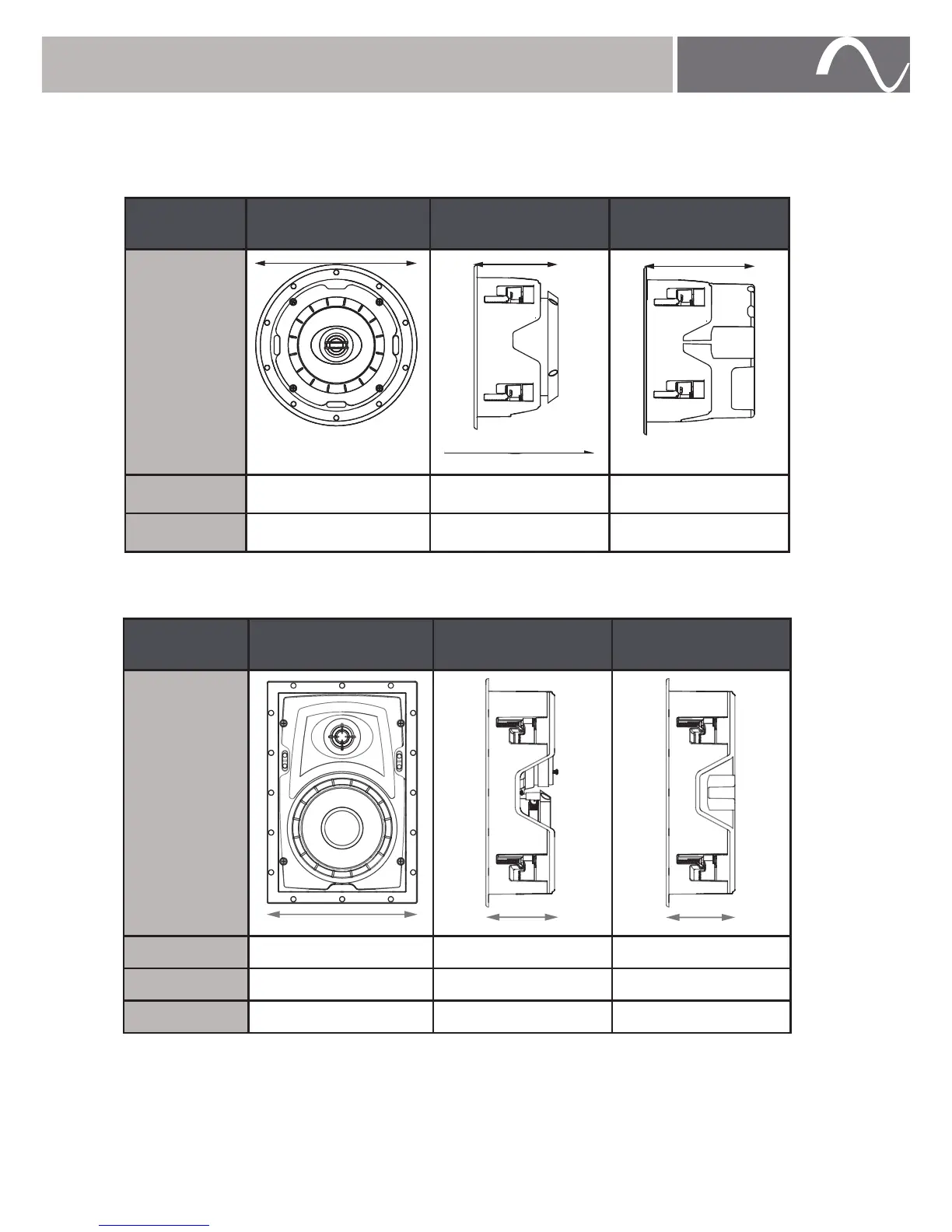

Refer to the chart below to verify the correct dimensions prior to cutting
drywall.
Model Cutout Dimension Mounting Depth
No Enclosure
Mounting Depth
with Enclosure
IC-6*
8.3” 3.6” 6.2“
IC-8
9.7” 3.7” 6.6“
*For POINT-6 models, refer to IC-8 cutout dimensions
Model Cutout Dimension Mounting Depth
No Enclosure
Mounting Depth
with Enclosure
IW-6
11.7” x 7.6” 3.6” 3.8“
IW-8
13.7” x 9.0” 3.6” 3.8“
LCR
14.4” x 7.6” 3.6” 3.8“
