CONNECT
Strip the insulation on each conductor approximately ¼” and insert
into the speaker terminals. Ensure no strands of wire protrude from the
connectors.
Observe proper polarity for each speaker to the amplifier (+ to + and – to – ).
Refer to the dual voice coil speaker wiring configuration image below
when wiring a dual voice coil speaker.
Amp
Visit SnapAV.com or contact customer support for help with impedance,
system design ideas, or wiring recommendations.
SECURE
Engage and Tighten

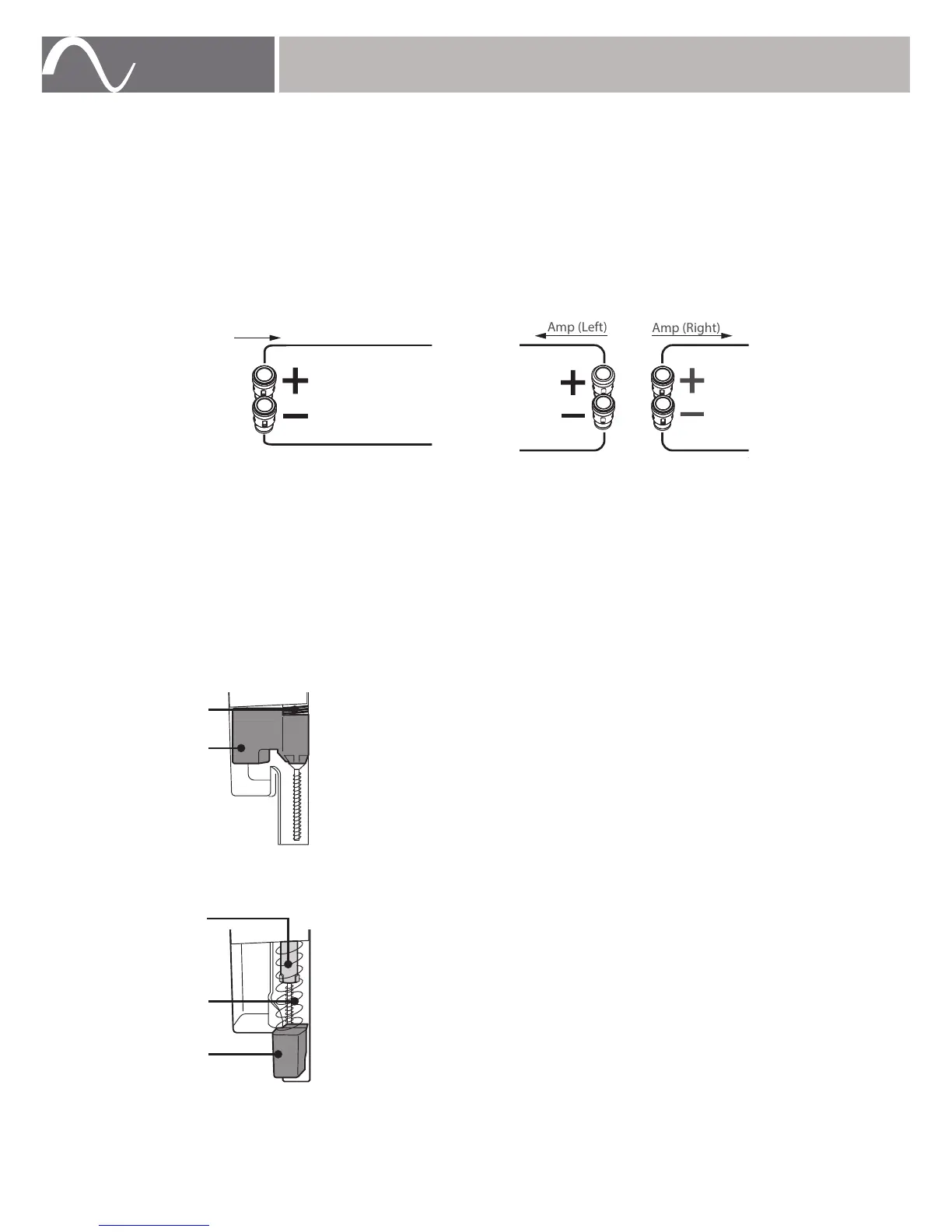

SINGLE VOICE COIL DUAL VOICE COIL
1. Insert the speaker into the opening and
turn the screw for each of the dogs one
quarter turn clockwise to engage the spring
mechanism.
2. The speaker is now held in place, freeing
up your hands so that you may continue to
tighten the dogs safely.
ENGAGED
PARKED
Dog
Dog
Spring
Spring
Carrier
