4.1 Battery Charging Information

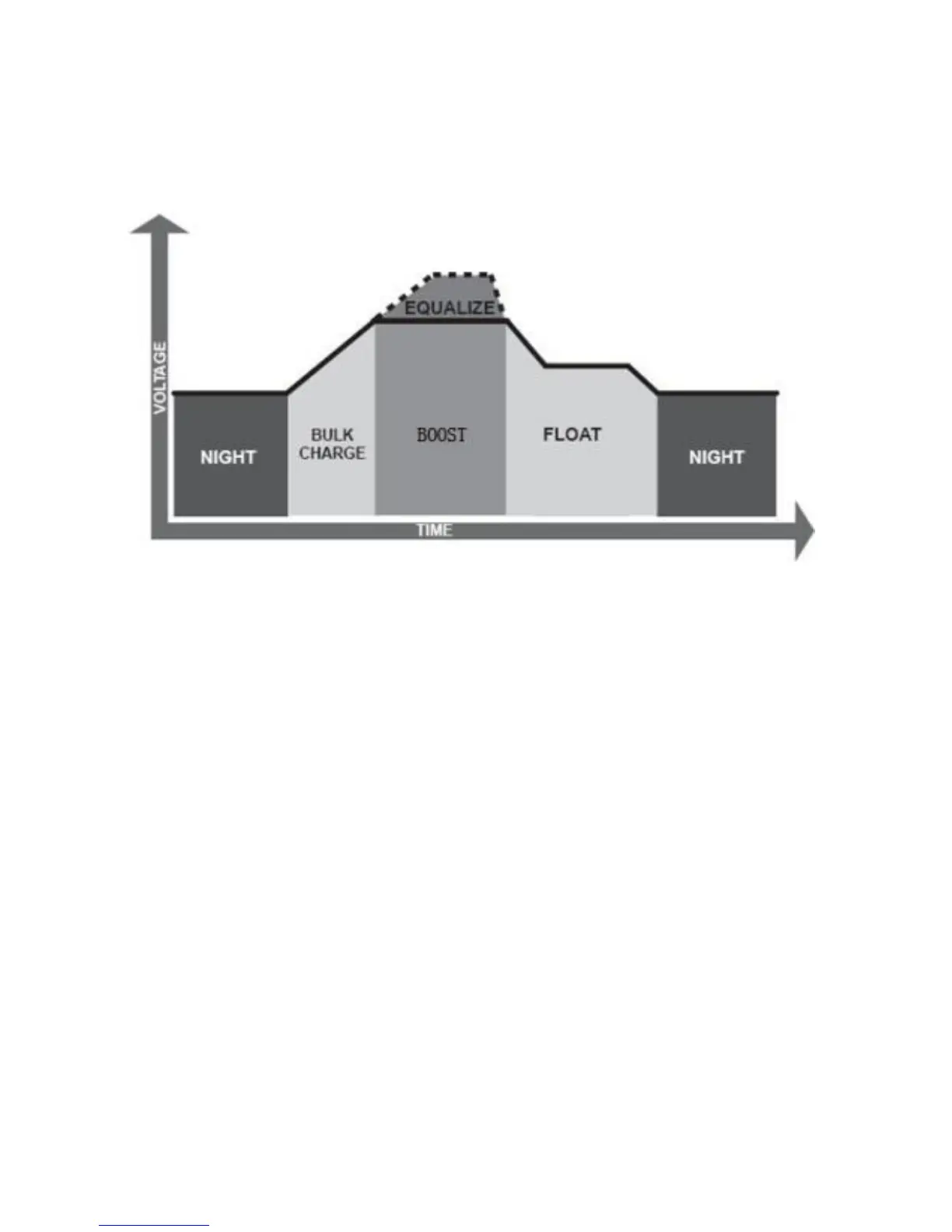

Figure 4-1 PWM Charging mode
·Bulk Charge
In this stage, the battery voltage has not yet reached boost voltage and
100% of available solar power is used to charge the battery.
·Boost Charge
When the battery has recharged to the Boost voltage setpoint,
constant-current regulation is used to prevent heating and excessive
battery gassing. The Boost stage remains 120 minutes and then goes to
Float Charge.
