Epsolar LS1024 - Annex: Mechanical Dimensions

23
Annex: Mechanical dimensions

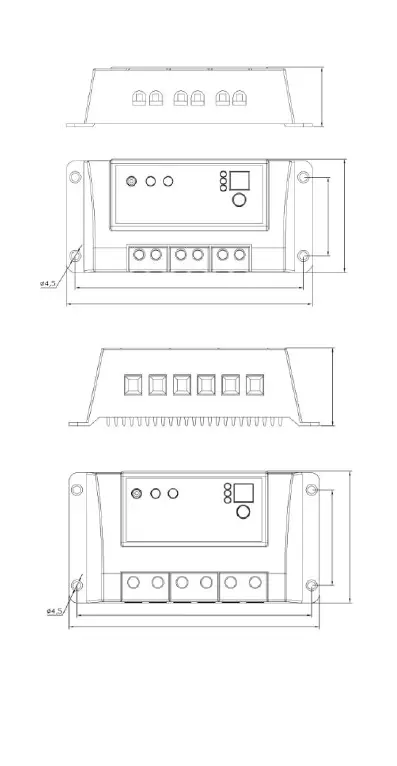

Figure1-1 LS1024 Dimensions
Figure1-2 LS1524 & LS2024 Dimensions
45(1.77)
34.2(1.34)
140(5.51)
130(5.12)
45(1.77)
64.9(2.56)
mm(inches)
55(2.16)
75.8(2.98)
135(5.31)
144(5.67)
