12

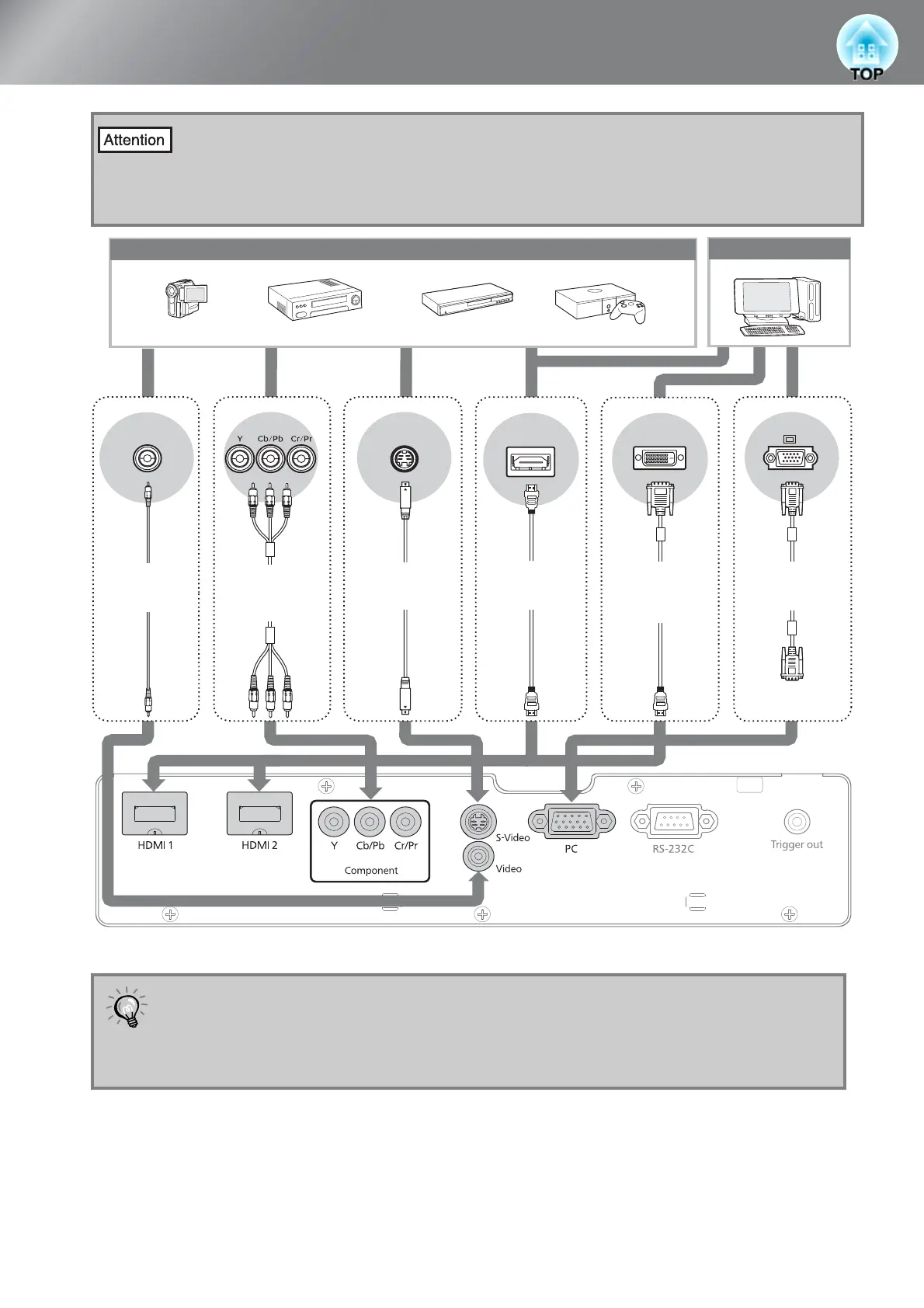

Connecting Image Sources
• Turn the power off for both the projector and the signal source before connecting them.
If the power for either device is on at the time of connection, damage may result.
• Check the shapes of the cable connectors and the device ports before making the
connections. If you try to force a connector to fit a device port with a different shape or
number of terminals, a malfunction or damage to the connector or port may result.
The cables used will vary depending on the output signals of the video equipment which
is being connected.
Some video equipment can output several different types of signal.
Refer to the documentation provided with the video equipment for details on what types
of signal the video equipment can output.
*Use a HDMI cable that conforms to the HDMI specifications.
*Port names may vary depending on the equipment being connected.
HDMI
DVI-D output
Video equipment (VHS VCR, DVD player, game console, etc.) Computer
Video
Component output
RCA video cable
(commercially-
available)
Component
video cable
(commercially-
available)
S-Video cable
(commercially-
available)
S-Video
Mini D-Sub
15-pin
HDMI cable
(commercially-
available *)
Computer cable
(commercially-
available)
HDMI to DVI-D
conversion cable
(commercially-
available)
Mini D-Sub
15-pin
TIP
To Next Page
