Interface

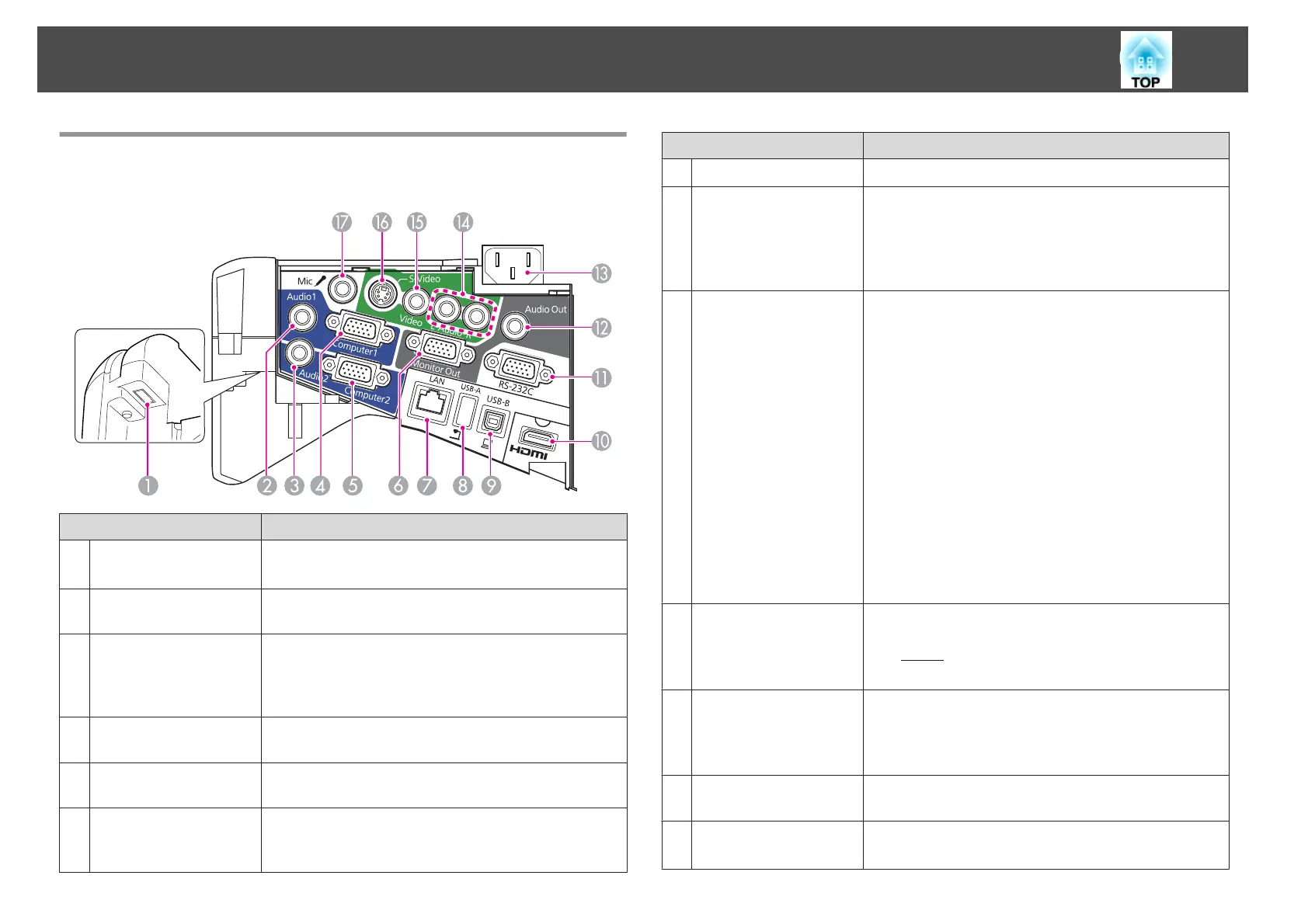

The following ports are available under the cable cover.
Name Function
A
Wireless LAN unit
installation section
Install the optional Wireless LAN unit here.
s "Installing the Optional Wireless LAN Unit" p.37
B
Audio1 port
Inputs audio from equipment connected to the
Computer1 port.
C
Audio2 port
• Inputs audio from equipment connected to the
Computer2 port.
• Inputs audio from other devices when projecting
images from the device connected to the USB-A port.
D
Computer1 port
Inputs image signals from a computer and component
video signals from other video sources.
E
Computer2 port
Inputs image signals from a computer and component
video signals from other video sources.
F
Monitor Out port
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
Name Function
G
LAN port
Connects a LAN cable to connect to a network.
H
USB-A port
• Connects a USB memory device or a digital camera, and
projects images as a Slideshow.
s "Projecting Without a Computer (Slideshow)"
p.74
• Connects the optional Document Camera.
I
USB-B port
• Connects the projector to a computer via the supplied or
a commercially available USB cable, and projects the
images on the computer.
s "Projecting with USB Display" p.41
• Connects the projector to a computer via the supplied or
a commercially available USB cable to use the Wireless
Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.70
• Connects the projector to a computer via the supplied or
a commercially available USB cable to use the Easy
Interactive Pen as a mouse or as a pen to draw on the
projected screen. (EB-485Wi/EB-480i/EB-475Wi only)
s "Operating as a mouse and drawing by
connecting to a computer (Computer Interactive)"
p.57
J
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.26
K
RS-232C port
When controlling the projector from a computer, connect
it to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.88
L
Audio Out port
Outputs audio from the currently projected image or the
Mic port to an external speaker.
M
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.39
