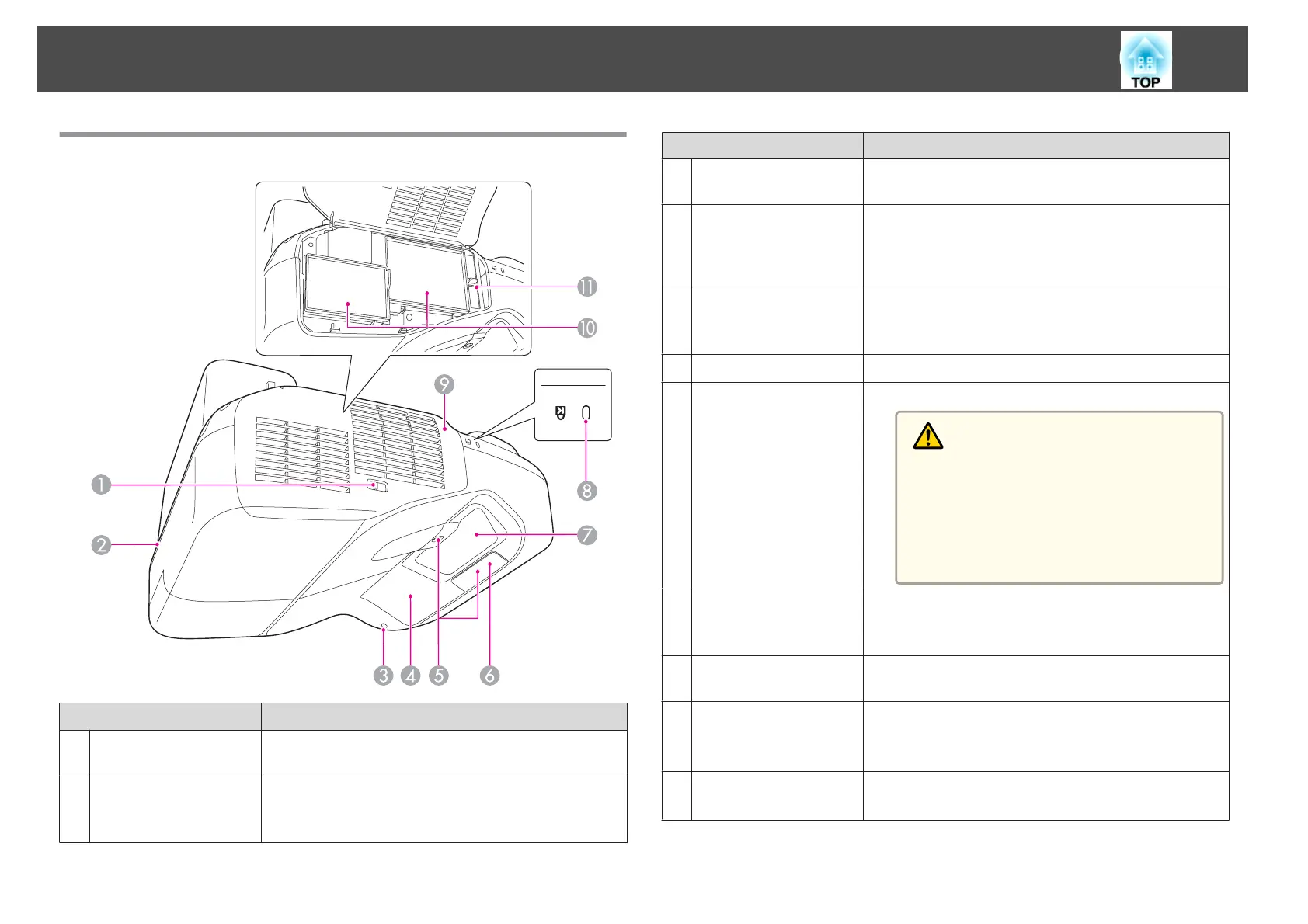

Side
Name Function
A
Air filter cover
open/close lever
Opens and closes the air filter cover.
B
Security cable
installation point
Pass a commercially available wire lock through here and
lock it in place.
s "Installing the wire lock" p.83
Name Function
C
Wireless LAN indicator
Indicates the access status to the optional wireless LAN
unit.
D
Easy Interactive
Function receiver
(EB-485Wi/EB-480i/
EB-475Wi only)
Receives signals from the Easy Interactive Pen.
s "Easy Interactive Function (EB-485Wi/EB-480i/
EB-475Wi only)" p.57
E
Obstacle sensor
Detects obstacles that are interfering with the projection
area.
s "Cleaning the Obstacle Sensor" p.137
F
Remote receiver
Receives signals from the remote control.
G
Projection window
Projects images.
Warning
• Do not look into the projection window while
projecting.
• Do not place any objects or put your hand near
the projection window. This area is dangerous
as it reaches high temperatures due to the con‐
centrated projection light.
H
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.83
I
Air filter cover
Open when changing the air filter or operating the focus
lever.
J
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.138
s "Replacing the Air Filter" p.142
K
Focus lever
Adjusts the image focus.
Open the air filter cover to operate.
Part Names and Functions
11
