• Install the projector so that it is parallel to the screen.
If the projector is installed at an angle to the screen, keystone distortion
occurs in the projected image.
• Place the projector on a level surface.
If the projector is tilted the projected image is also tilted.
a
• See the following if you cannot install the projector parallel to the
screen.
s "Correcting Keystone Distortion" p.36
• See the following if you cannot install the projector on a level
surface.
s "Adjusting the Horizontal Tilt" p.39

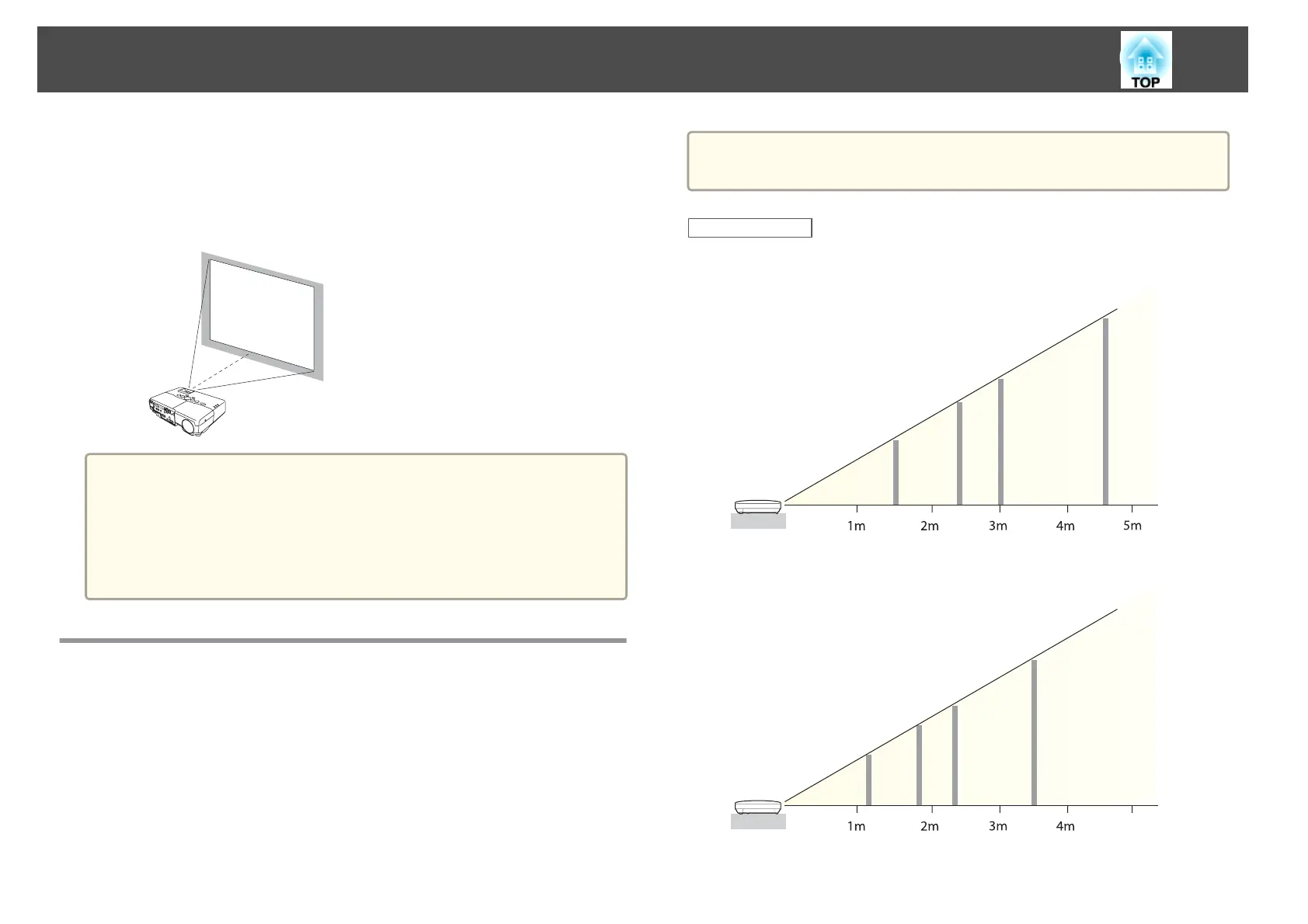

Screen Size and Approximate Projection Distance
Projection size is determined by the distance from the projector to the
screen. See the illustrations on the right to select the best position according
to the screen size. The illustrations show the approximate shortest distance
at maximum zoom. See the following for more information on the
projection distance.
s
"Screen Size and Projection Distance" p.119
a
When you correct keystone distortion, the projected image may be
reduced.
16:10 Screen Size
EB-915W
(110×67cm)
(170×110cm)
(220×130cm)
(320×200cm)
50”
80”
100”
150”
EB-910W
(110×67cm)
(170×110cm)
(220×130cm)
(320×200cm)
5m
50”
80”
100”
150”
Installing the Projector
20
